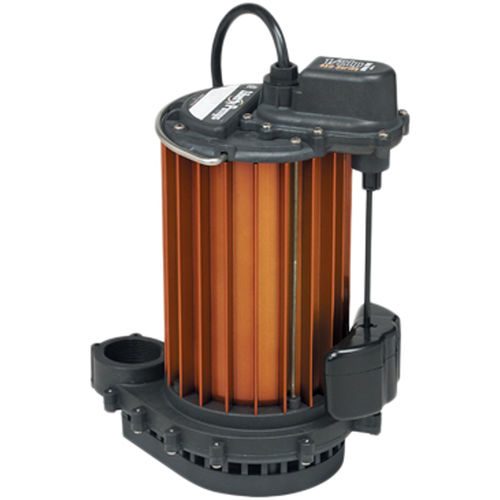

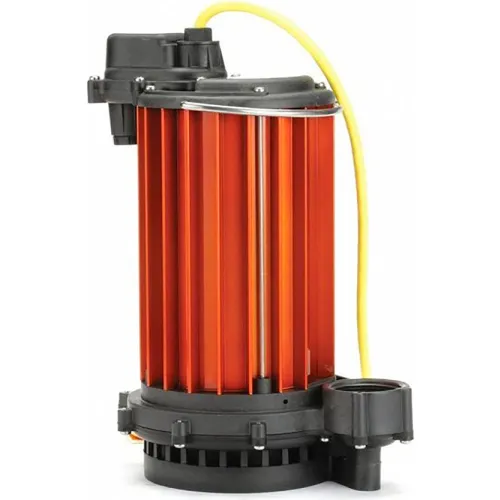

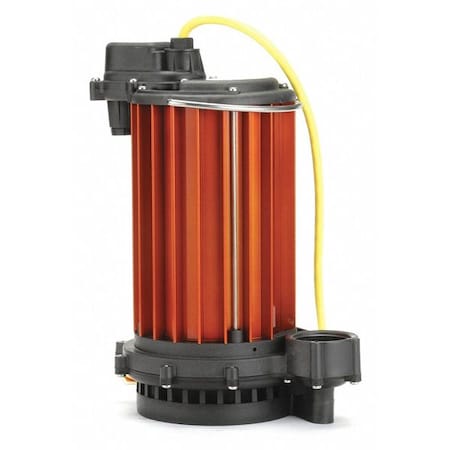

Liberty Pumps HT450

B002YS91SI

High-Temp. Sump Pump, 1/2 HP, 115VAC

High-Temp. Sump Pump, 1/2 HP, 115VACzoom

Attributes

Key Value
ADA CompliantNo
AdjustableNo
Agency ComplianceCSA/cUL
Alarm IncludedNo
AMP7.3
Amperage Rating7.3 A
Amps7.3 A
Amps - Pumps7.30
ApplicationCommercial, Residential
Automatic Shut-OffNo
Base Diameter9-3/5 in
Base MaterialAluminum
Bearing TypeBall
Body MaterialAluminum
BrandLiberty Pumps
Brand Model Compatibi.High Temp Sump Pumps
Built-In GrinderNo
Clean BaggedNo
CoatingPowder Coated
CollectionHT450 Series
Color FinishBlack, Copper, Yellow
Color Finish CategoryCopper Tones
Cord Length10 ft
Cord Length - Pumps10 ft.
Cord Type10 ft SJEOOW
Corded CordlessCorded
Country of Origin (subj.United States
Cover IncludedNo
CSA CertifiedCSA 22.2 No. 108
Current Stock47
Description:1/2 HP, Submersible Hig.
Diameter9-3/5 in
Dimensions9.6 in W x 12.5 in H
Discharge1-1/2 in, 1-1/2 in FNPT
Discharge ConfigurationVertical
Discharge Dia.1 1/2 in
Discharge GenderFemale
Discharge NPT1-1/2"
Discharge StandardNPT
DutyContinuous
Duty CycleContinuous
End Connection 1FNPT
End ConnectionsFNPT
Energy Star CompliantNo
Fits Pipe Size1-1/2 in
Flow Rate53 gpm
Flow Rate @ 10 Ft. of H.44 gpm
Flow Rate @ 15 Ft. of H.38.0 gpm
Flow Rate @ 20 Ft. of H.32.0 gpm
Flow Rate @ 5 Ft. of He.48.0 gpm
Frequency Rating60 Hz
Gauge/Conductor16/3
GPM of Water @ 10 Ft. o.44
GPM of Water @ 15 Ft. o.38
GPM of Water @ 20 Ft. o.32
GPM of Water @ 25 Ft. o.22
GPM of Water @ 30 Ft. o.10
GPM of Water @ 5 Ft. of.48
HandleYes
Height12-1/2 in, 12-13/32"
High Temp. Rated Impell.Yes
High Temp. Rated Power .Yes
High Temp. Rated SwitchNo
High Temp. Rated Therma.Yes
Horsepower1/2 hp
HP1/2
Hz60 Hz
ImpellerVortex
Impeller MaterialEngineered Polymer
Impeller Material - Pum.Engineered Thermoplastic
Impeller TypeVortex
Input Phase AC1
Installation TypeFreestanding
International ShippingNo
ISO SpecificationsISO 9001
ItemHigh-Temperature Submer.
Item - Sump PumpsHigh-Temperature Submer.
Lead TimeExpected to ship in 1-2.
Length9-39/64", 10-3/4 in
MA ApprovedYes
ManufacturerLiberty Pumps, Liberty .
Manufacturers Warranty .3 yr
MaterialAluminum
Material TypeNylon
Max. Diameter Solids3/8 in
Max. Head34.0 ft
Max. Head - Pumps34 ft.
Max. Liquid Temp.180 Degrees F
Maximum Feet of Head34
Maximum Head34 ft
Maximum Temperature180
MFG Part #:HT450
Min. Sump Pit Dia.14 in
Minimum Water Depth14 in
Motor RPM3450
Motor Speed3450 rpm
Motor TypeShaded pole
MpnHT450
NEC Cord DesignationSJEOOW
NSF CertifiedNo
OriginDomestic
Outlet1-1/2" FNPT
Outlet Size1-1/2 in
Overall Height12 13/32 in
PhaseSingle Phase, 1 ph
Phase - Pumps1
Power SourceElectric
ProductSump
Product TypeSubmersible
Pump ApplicationSump
Pump Body MaterialCast Aluminum, Aluminum
Pump HP1/2
Pump Motor TypeHermetically Sealed
Pump Phase1
Pump RPM3450
Pump Stage1
Pump TypeSubmersible Pump
Rated Voltage115V AC
RPM3,450 RPM, 3450
Shaft Seal Material - P.Nitrile Rubber
SKUZO-G5088909
SubCategoryPumps
Supplier:Liberty Pumps Inc
Switch ActuationNo Switch Included
Switch Electrical Conne.No Switch Included
Switch Type - PumpsManual
Temperature Rating180, 284 deg F Thermal .
Thermal ProtectionYes
Turn On Turn Off LevelsTurn-on 10-3/25 in/Turn.
TypeHigh Temperature Manual.
UL ListedUL 778
UPC671812114317
UPC:671812114317
VAC at 60 Hz115
Voltage115V
Voltage - Pumps115VAC
Voltage Rating115 VAC
Volts115V
Weight12.5
Width7-1/8", 9 in
Width at Widest Point7 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB002YS91SI342.861In Stock2LIBERTY PUMPS342.86 @ 1
thumbzoomCanarseeHT450354.01In StockLIBERTY PUMPS354.0 @ 1
ferguson.com3654331354.01In StockLiberty Pumps354.0 @ 1
thumbzoomPlumbersStock72198354.01In StockLiberty13.0354.0 @ 1
thumbzoomPexUniverseHT450354.01In StockLiberty Pumps354.0 @ 1
thumbzoompumpproducts.comHT450363.081In StockLiberty363.08 @ 1
thumbzoomGlobal IndustrialWBB2333680369.951In Stock15Liberty Pumps369.95 @ 1
thumbzoomZoroG5088909375.23180Liberty Pumps14.0375.23 @ 1
kscdirect.comLIB HT450382.281In StockLiberty Pumps Inc382.28 @ 1
thumbzoomsimsupply.comZO-G5088909462.79147Liberty Pumps462.79 @ 1
thumbzoomEdge SupplyHT450472.01In StockLiberty Pumps472.0 @ 1
thumbzoomwaterpumpsnow.comHT450488.271In StockLiberty13.0488.27 @ 1
