Marathon Electric Y544

B08KQHTXLD

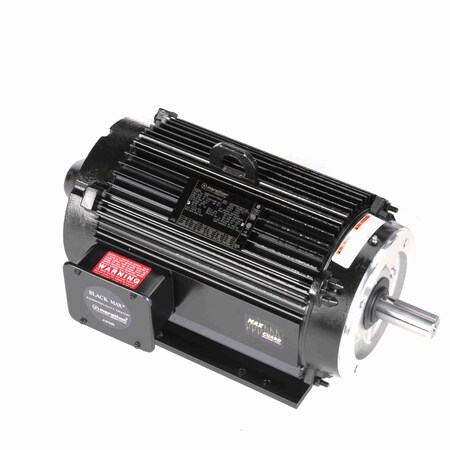

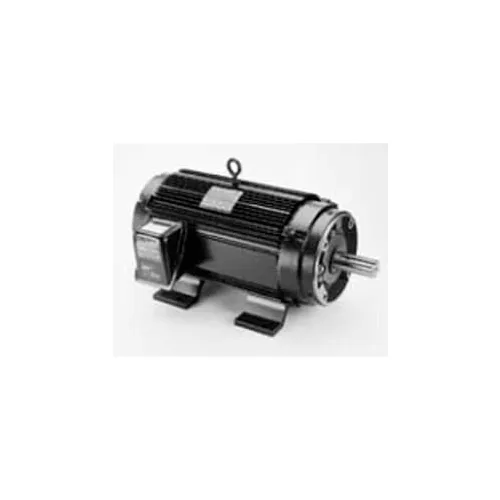

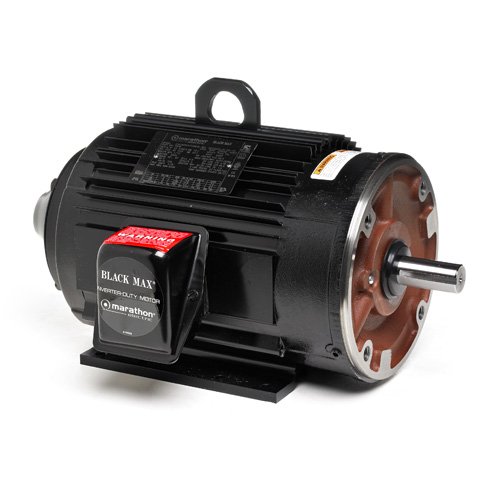

Marathon Electric Y544 Vector Drive Motor - 3 ph, 5 hp, 1200 rpm, 230/460 V, 215TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz

Marathon Electric Y544 Vector Drive Motor - 3 ph, 5 hp, 1200 rpm, 230/460 V, 215TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hzzoom

Attributes

Key Value
Amps15.4/7.7
ApprovalsCE, CSA, UL
Bearing TypeBall
BearingsBall
CompositionAluminum
Country of Origin (subj.United States
CT Speed Range1000:01:00
duty / condition type:Continuous Duty, Invert.
Duty CycleContinuous
Efficiency0.84
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialAluminum
Enclosure TypeTENV (Totally Enclosed .
enclosure type:TENV (Totally Enclosed .
Family SeriesMarathon Electric Motor.
Frame215TC
frame material:Aluminum
frame size:215TC
frequency rating:60 Hz
full load current:15.40 / 7.70 A
full load efficiency:84.00 %
Gross Weight0 lbs
Horsepower5 hp
HP5
Hz60
Insulation ClassF
insulation class:F
Inverter DutyYes
ip rating:43
Item NumberY544
ManufacturerMarathon Electric
Manufacturer Model #215THTL7776
Manufacturer Part Number215THTL7776
Maximum Ambient Tempera.40? C
Model Number215THTL7776
motor category:Vector Drive Motor
motor horsepower:5.00 hp, 5 hp
motor phase:3 ph
Motor Shell Length10.25"
motor supply voltage:230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeC-Face Footed
mounting type:Rigid Base/C-Face Flange
NEMA Frame215TC
Net Weight146 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length20.54", 20.54 "
overall length (c-dimen.20.54 in
Overload ProtectionThermostat
Phase3
Product SeriesHIGH PERFORMANCE INVERT.
Product TypeThree Phase
RotationReversible
RPM1,200 RPM, 1200, 1165
Service Factor1
service factor:1.00
Shaft Diameter1-3/8"
shaft diameter:1.38 in
Shaft Length3.12"
Ship Weight146 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
thermal protection:Thermostat
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230, 460
weight:146 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comY5441508.011MARATHON1508.0 @ 1
thumbzoomMRO Supply22702791883.821In StockMarathon Electric1883.82 @ 1
thumbzoomapexindustrialautomation.comY5442135.0135Marathon2135.0 @ 1
thumbzoommotionindustries.com042797782184.641In StockMarathon Electric2184.64 @ 1
thumbzoomGalcoY544-MARA2255.281In StockMarathon Electric146.02255.28 @ 1
us.rs-online.com726238652463.461In StockMarathon Motors2463.46 @ 1
thumbzoomAutomation DirectY5442510.01In StockMarathon138.02510.0 @ 1
thumbzoomemotorpro.comY5442602.041In StockMarathon146.02602.04 @ 1
thumbzoomGlobal IndustrialWBB8681102619.01In Stock17Marathon Motors2619.0 @ 1
thumbzoomZoroG25312042624.371In StockMarathon2624.37 @ 1
thumbzoommidwestapplianceparts.comY544-MT-P2651.491In StockMarathon2651.49 @ 1
thumbzoomcbtcompany.comY5442814.831In StockMarathon Electric Motors2814.83 @ 1
thumbzoomNational Supply NetworkB8681102838.511In StockMARATHON MOTORS2838.51 @ 1
kirbyrisk.com5144003062.591In StockMarathon3062.59 @ 1
