- mpnSE-100-9
- brandname: MEAN WELL
- manufacturername: MEAN WELL

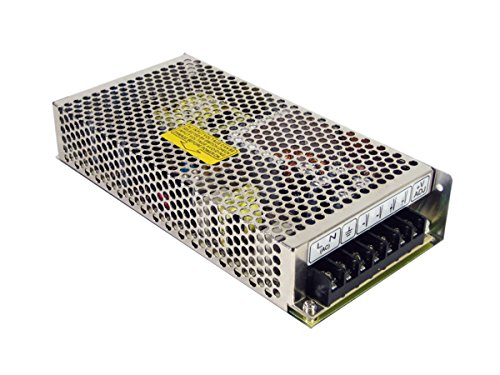

MW Mean Well SE-100-9 9V 11.2A 100W Single Output Switching Power Supply
- Brand: Mean Well
- PartNumber: SE-100-9
- Model: SE-100-9
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: Mean Well
- Label: Mean Well
Attributes
| Key | Value |
|---|
| Alternate Part No. | 709-SE100-9 |
| Approvals | UL60950-1 |
| Brand | Mean Well |
| Commercial/Medical | Commercial |
| Configuration | Enclosed |
| Dimensions | 159 mm L x 97 mm W, 159. |
| Height | 38 mm |
| Industry Aliases | new |
| Input Voltage | 85 VAC to 264 VAC, 248 . |
| Input Voltage Range | 115-132/176-264 VAC |
| Isolation Resistance | I/P - O/P, I/P-FG, O/P-. |
| Length | 159 mm |
| Manufacturer | Mean Well |
| Manufacturer Part No. | SE-100-9 |
| Mounting Style | Chassis |
| Mounting Type | Panel Mount |
| MTBF | 309.7K hrs min. MIL-HDB. |
| Number of Outputs | 1, 2 Output |
| Open Frame/Enclosed | Enclosed |
| Operation | Switching |
| Output Current | 11.2 A |
| Output Current-Channel 1 | 11.2 A |
| Output Power | 101 W |
| Output Power Rating | 100.8 W |
| Output Rated Current | 11.2A |
| Output Voltage | 9 VDC, 9V |
| Output Voltage-Channel 1 | 9 V |
| Primary Type | AC-DC |
| Product | Switching Supplies |
| Product Category | Switching Power Supplies |
| Series | SE-100, SE-100 Series |
| Storage Temp., Humidity | -40 ~ +85?C, 10 ~ 95% RH |
| Temp. Coefficient | ?0.03%/?C (0 ~ 50?C) |
| Type | Embedded |
| Unit Weight | 550 g |
| Vibration | 10 ~ 500Hz, 2G 10min. /. |
| Wattage | 100 |
| Width | 97 mm |
| Withstand Voltage | I/P - O/P : 3KVAC-----I. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | peaktopeakpower.com | SE-100-9 | 19.8 | 1 | In Stock | | Mean Well | | 19.8 @ 1 |
| Onlinecomponents.com | SE-100-9 | 20.52 | 1 | 6 | | MEAN WELL | | 20.52 @ 1 |
| us.rs-online.com | 70388319 | 29.95 | 1 | In Stock | | MEAN WELL | | 29.95 @ 1 |
 | swatee.com | SE-100-9 | 41.86 | 1 | 1 | | Mean Well | | 41.86 @ 1 |
