Woodhead / Molex 70553-0003

mpn705530003
brandname: Molex
manufacturername: Molex

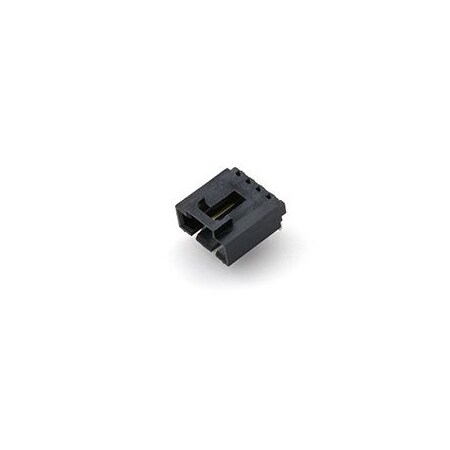

70553-0003,Conn Shrouded Header (4 Sides) HDR 4 POS 2.54mm Solder RA Side Entry Thru-Hole SL Tube (25 Items)

Brand: Woodhead / Molex
PartNumber: 70553-0003
Model: 70553-0003
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Agency Approvals	CSA ; UL
Alternate Mfr Part Numb.	70553-0003
Angle	Right Angle
Application	For PCB
Category	Connectors, Interconnec.
Color	Black
Connection Direction	Angle
Connector Shape	Square
Connector Type	Male Pin
Contact Finish - Mating	15.0?in (0.38?m)
Contact Finish - Post	Phosphor Bronze
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	Automotive, General Pur.
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	-
Contact Material	Polyester, Glass Filled.
Contact Plating	Gold
Contact Shape	Gold
Contact Type	0.100" (2.54mm)
Current Rating	3 A
Current Rating (Amps)	250V
Family Name	SL
Fastening Type	0.240" (6.10mm)
Features	-40?C ~ 105?C
Housing Material	Polyester
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Mated Stacking Heights	74.8?in (1.90?m)
Material Flammability R.	Black
Mfr	Molex
Mounting Hole Size	0.043 in
Mounting Type	Solder
Number of Circuits	4
Number of Contacts	4
Number of Positions	1
Number of Positions Loa.	Board to Cable/Wire
Number of Rows	1, -
Operating Temperature	-40 to +105 ?C, -
Orientation	Right Angle
Overall Contact Length	0.215" (5.45mm)
Overall Length	0.535 "
Package	Active
Package Quantity	1
Part Status	Header
Pin Length	0.13 "
Pin Spacing	0.1 in
Pitch	2.54 mm (0.100")
Pitch - Mating	4
Plating Material	Gold
Primary Type	Board Mount
Product Header	Wire-to-Board Shrouded .
Row number	1
Row Spacing - Mating	All
Series	Tube, 70553 Series
Shrouding	Through Hole, Right Ang.
Special Features	Not Low-Halogen
Strain Relief	Low Profile
Style	Shrouded - 4 Wall
Termination	Latch Holder, Through H.
Type	Right Angle Header
Voltage Rating	250 V, -
