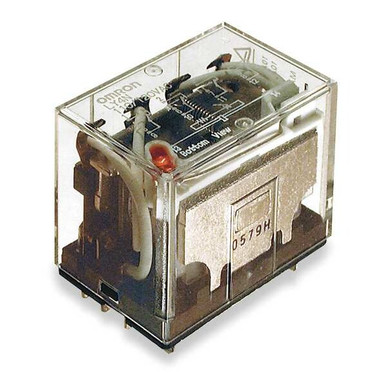

Omron LY4N-AC120

mpnB005T678E6
brandname: Omron
manufacturername: Omron

Omron LY4N-AC120 General Purpose Relay, LED Indicator Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 19 mA at 50 Hz and 16.4 mA at 60 Hz Rated Load Current, 120 VAC Rated Load Voltage

Brand: Omron
PartNumber: LY4N-AC120
Model: LY4N AC120
Size: Quadruple Pole Double Throw Contacts
PackageQuantity: 1
Binding: Misc.
Manufacturer: Omron
Label: Omron

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 120V
Alternate Mfr Part Numb.	LY4NAC120
Base Type - Plug In Rel.	Square
Body Depth	1.42 in
Body Depth - Relay	1.1 in
Body Height	1.1 in
Body Height - Relay	1.42 in
Body Width	1.63 in
Body Width - Relay	1.63 in
Brand	Omron
Category	Relays
Coil Current	25ms, 9.2 mA
Coil Insulation	96 VAC
Coil Resistance	4430 Ohms
Coil Type	Lighted Indicator
Coil Voltage	120 VAC ; 110/115/120/1.
Coil Volts	120V AC
Contact Current Rating	10 A
Contact Form	4PDT, 250VAC, 125VDC - .
Contact Form - Relay	4PDT
Contact Material	General Purpose, Silver.
Contact Rating (Current)	16.4mA
Contact Resistance	50 mOhms
Contact Voltage Rating	300
Control Voltage	120
Current Rating	10 A
Current Stock	197
DC Contact Rating - Rel.	10A @ 24V
Dielectric Rating	2000 VAC
Features	Arc Barrier Equipped, H.
Flat Pin Width	0.197 in
Function	General Purpose
Green Environmental Att.	RoHS 2011/65/EU Complia.
HP @ 120V	1/3 hp
International Shipping	No
Item	General Purpose Relay
Item - Relay	General Purpose Relay
Lead Time	Expected to ship in 1-2.
Maximum Operating Tempe.	40 C
Mfr	Omron Automation and Sa.
Minimum Operating Tempe.	-25 C
Mounting - Relay	Plug In
Mounting Type	Socket Mount, 120VAC
Mpn	LY4N-AC120
Must Operate Voltage	36 VAC
Must Release Voltage	-25?C ~ 40?C
Number of Pins	14 Pin
Number of Pins - Relay	14
Operate Time	25ms
Operating Temperature	Silver Alloy
Overall Depth	1.67 in
Overall Height - Relay	1.69 in
Package	Active
Part Status	Socketable
Power Consumption - Rel.	2 VA
Power Rating	1100 VA ; 240 W
Primary Type	Power Relays
Relay Type	Electromechanical, 10A
Release Time	2.2 kOhms
Seal Rating	-
Series	LY Series, Tray
SKU	ZO-G3498074
Special Features	LED Indicator
Standards	CE Certified, CSA Certi.
SubCategory	Electrical
Switching Voltage	Non Latching
Termination	QC Tabs
Termination Style	-
UPC	4536853620486
Voltage Rating	250 ; 125 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Carlton Bates Company	40312347701	19.85	1	In Stock		OMRON		19.85 @ 1
AmazonTP	B005T678E6	20.79	1	In Stock	2	Omron		20.79 @ 1
Zoro	G3498074	24.89	1	466		Omron	0.1	24.89 @ 1
Arrow	LY4N-AC120	24.97	1	In Stock		Omron		24.97 @ 1
Mouser	653-LY4N-AC120	25.66	1	46		Omron		25.66 @ 1
Kele	LY4N-AC120	26.0	1	In Stock		Omron		26.0 @ 1
MRO Supply	6164265	26.41	2	In Stock		Omron		26.41 @ 2
Onlinecomponents.com	LY4NAC120	30.21	1	10		Omron		30.21 @ 1
Newark	36K7555	30.36	1	4		OMRON INDUSTRIAL AUTOMATION		30.36 @ 1
sustainablesupply.com	C1209067	30.6	1	In Stock		Omron	0.1	30.6 @ 1
Master Electronics	LY4NAC120	32.8	1	115		Omron Automation		32.8 @ 1
Digi-Key	Z2879-ND	34.89	1	In Stock		Omron Automation and Safety		34.89 @ 1
Airline Hydraulics	OMRON LY4N-AC120	37.08	1	In Stock		Omron		37.08 @ 1
simsupply.com	ZO-G3498074	38.15	1	197		Omron		38.15 @ 1
us.rs-online.com	70178850	40.42	1	41		Omron Automation		40.42 @ 1
Raptor Supplies	AE7ZPC	46.4705865	1	In Stock		OMRON		46.4705865 @ 1
