Omron G2R1ATAC24

B0105IXO5E

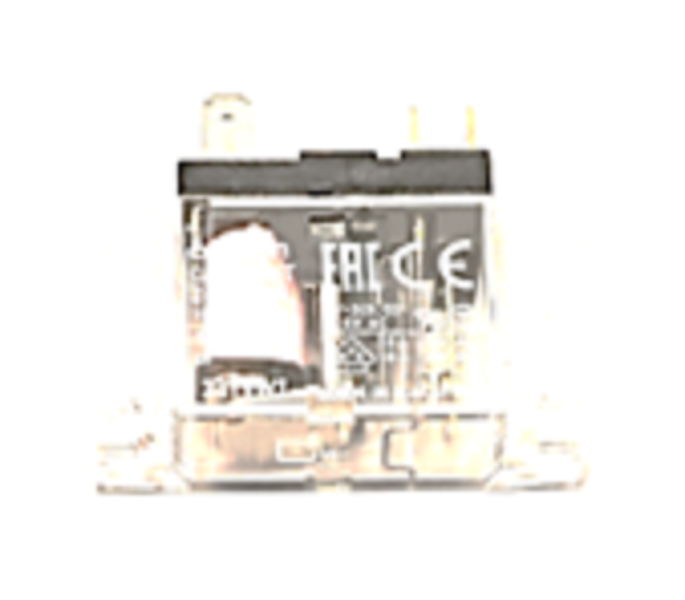

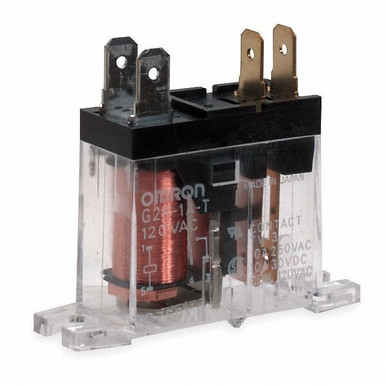

Omron Industrial G2R1ATAC24 Medium Power Relays (3 Amps to 19.9 Amps)

Omron Industrial G2R1ATAC24 Medium Power Relays (3 Amps to 19.9 Amps)zoom

Attributes

Key Value
AC Contact Rating - Rel.10 A @ 240V, 10A @ 240V
Alternate Mfr Part Numb.G2R1ATAC24
Base Product NumberG2R-1A
Body Depth1.16 in
Body Depth - Relay0.46 in
Body Height1.73 in
Body Height - Relay1.16 in
Body Width0.52 in
Body Width - Relay1.20 in, 1.2 in
BrandOmron
CategoryRelays
Coil Current37.5 mA
Coil Insulation-
Coil Resistance260 Ohms
Coil TypeNon Latching
Coil Voltage24 VAC, 24VAC
Coil Volts24V AC
Contact Current Rating10 A
Contact FormSPST-NO (1 Form A), SPS.
Contact Form - RelaySPST-NO
Contact MaterialSilver Alloy
Contact Rating (Current)10 A
Contact Voltage Rating300 VAC
Control Voltage24
Current Rating10 A
Current Stock397
DC Contact Rating - Rel.10 A @ 28V, 10A @ 28V
DescriptionRELAY GEN PURPOSE SPST .
Detailed DescriptionGeneral Purpose Relay S.
Digi-Key Part NumberZ6231-ND
Electrical ConnectionQuick-Connect, 0.187 in.
FeaturesCreepage Distance of 8..
Flat Pin Width0.187 in
FunctionGeneral Purpose
HP @ 120V1/3 hp, 1/3
HP @ 240V1/2 hp, 1/2
International ShippingNo
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Lead TimeExpected to ship in 1-2.
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.G2R-1A-T AC24
Manufacturer Standard L.26 Weeks
MfrOmron Automation and Sa.
Mounting - RelayTop Flange
Mounting Hole Diameter0.05 in
Mounting TypePanel Mount, Chassis Mo.
MpnG2R-1A-T-AC24
Must Operate Voltage19.2 VAC
Must Release Voltage7.2 VAC
Number of Pins - Relay4
Operate Time15 ms
Operating Temperature-40?C ~ 70?C
Overall Depth1.5 in
Overall Height - Relay1.49 in
PackageTray
Pins4
Power Consumption - Rel.0.9 VA
Power Rating2500 VA ; 300 W
Primary TypePower Relays
Product StatusActive
Promotion RestrictionNot eligible for promot.
Relay TypeElectromechanical, Gene.
Release Time10 ms
Seal RatingSealed - Flux Protection
SeriesG2R Series, G2R
SKUZO-G2602661
StandardsUL, CSA, CSA Certified,.
Status IndicatorNo
SubCategoryElectrical
Switching Voltage380VAC, 125VDC - Max
TerminationQC Tabs
Termination StyleQuick Connect - 0.187" .
UPC4547648031684
Voltage Rating380 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comG2R1ATAC247.251In StockOMRON INDUSTRIAL7.25 @ 1
thumbzoomZoroG26026618.351In StockOmron0.018.35 @ 1
Master ElectronicsG2R1ATAC249.361In StockOMRON INDUSTRIAL9.36 @ 1
Grainger6C89010.05161OMRON10.05 @ 1
AmazonSCB00M1ZKMS210.271In StockOMRON INDUSTRIAL AUTOMATION10.27 @ 1
grainger.caWWG6C89010.27015491In StockOMRON0.0110.2701549 @ 1
thumbzoomsustainablesupply.comC120906910.581In StockOmron0.0110.58 @ 1
thumbzoomDigi-Key36873810.931In StockOmron Automation and Safety10.93 @ 1
thumbzoomNewark89C522011.951365OMRON INDUSTRIAL AUTOMATION11.95 @ 1
us.rs-online.com7017857412.161472Omron Automation12.16 @ 1
Airline HydraulicsOMRON G2R-1A-T AC2412.341In StockOmron12.34 @ 1
thumbzoomRaptor SuppliesAE7ZPF14.3467741In StockOMRON14.346774 @ 1
AmazonTPB000LEL2MU14.351In Stock2OMRON14.35 @ 1
AmazonUNKB000LEL2MU14.351In StockOMRON14.35 @ 1
thumbzoomsimsupply.comZO-G260266114.611397Omron14.61 @ 1
thumbzoomgsistore.comG2R-1A-T-AC2414.6315Omron14.63 @ 1
RS Delivers807-457615.036128Omron15.036 @ 1
thumbzoommidwestapplianceparts.comG2R-1A-T-AC24-OM-P16.881In StockOmron16.88 @ 1
