Ruland SP-19-SS

B0063KZO20

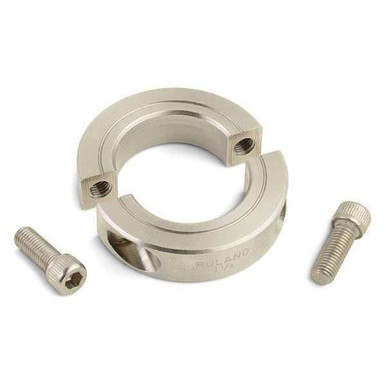

Ruland SP-19-SS Two-Piece Clamping Shaft Collar, Stainless Steel, 1.188" Bore, 2 1/16" OD, 1/2" Width

Ruland SP-19-SS Two-Piece Clamping Shaft Collar, Stainless Steel, 1.188" Bore, 2 1/16" OD, 1/2" Widthzoom

Attributes

Key Value
Bore (B)1.1875 in
Bore Dia.1 3/16 in, 1-3/16"
Bore Tolerance+0.0020 in / +0.0005 in
Bore Type - CollarsPlain Bore
BrandRULAND
CategoryHardware, Fasteners, Ac.
Clearance Dia.2-1/4", 2.25 in
Clearance Diameter (C) .2.295 in
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Current Stock47
Description1-3/16" STAINLESS SHAFT.
Digi-Key Part Number3188-SP-19-SS-ND
Dimension TypeInch
Finish SpecificationBright, No Plating
Forged Clamp Screw1/4-28
Hex Wrench Size3/16 in
International ShippingNo
ItemShaft Collar
Item - Shaft CollarsShaft Collar
Lead TimeExpected to ship in 1-2.
ManufacturerRuland Manufacturing
Manufacturer Product Nu.SP-19-SS
Material303 Stainless Steel
Material - Collars303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
MfrRuland Manufacturing
MpnSP-19-SS
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-40 Degrees F - 350 D.
Outer Diameter (OD)2 1/16 in
Outside Dia.2-1/16", 2 1/16 in
PackageBag
Product StatusActive
Prop 65This product contains a.
Recommended Gap0.063 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)0.828 in
Screw MaterialStainless Steel, 18-8 3.
Screw Size1/4"-28
Seating Torque110 lb-in
Series-
Shaft Locking Type - Co.2 Piece Clamp
SKUZO-G2264491
Specifications2.063" (52.39mm) Outer .
StandardsREACH Compliant, RoHS2 .
SubCategoryPower Transmission
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeShaft Collar
UNSPC31162811
UPC634529020678
Weight (lbs)0.295000
Width1/2", 1/2 in
Width (W)0.500 in
Width Tolerance+0.003 in / -0.010 in
