Schneider Electric ATS48C41Y

B00CONS8YG

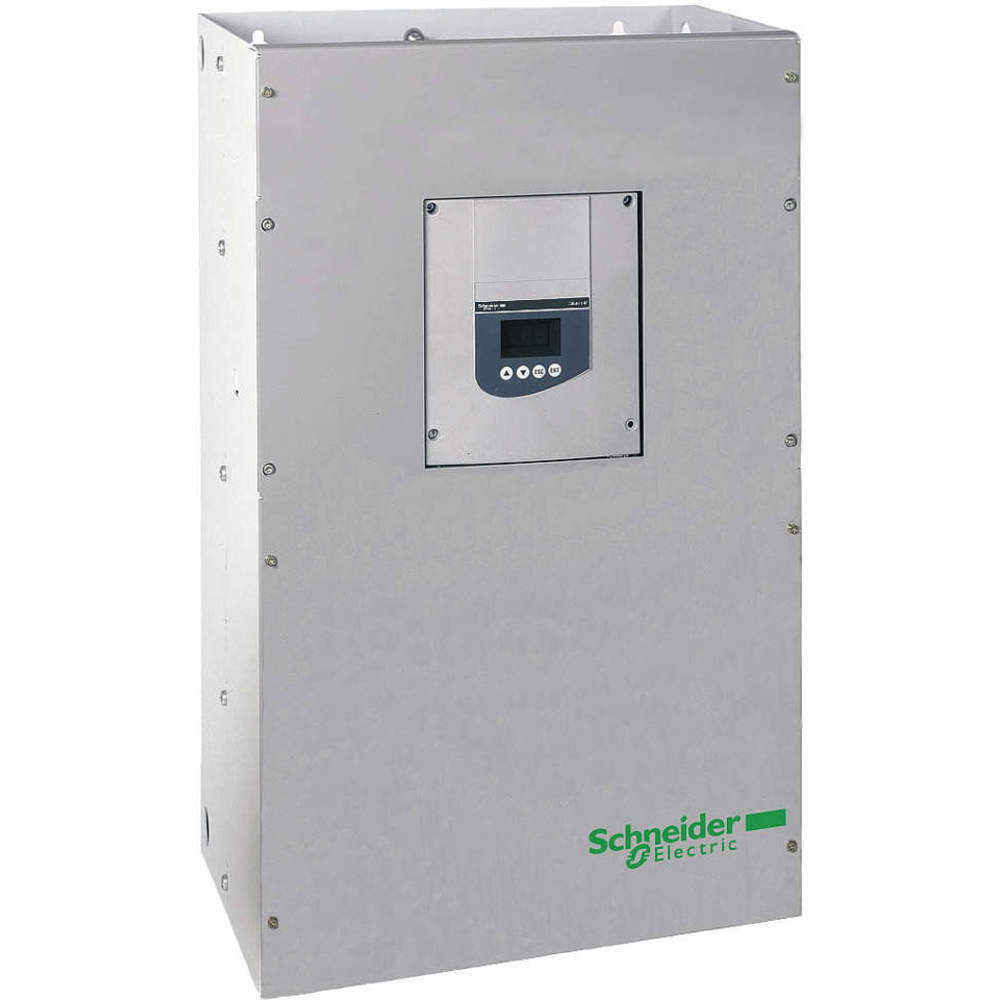

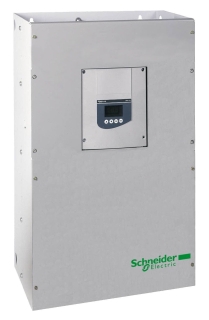

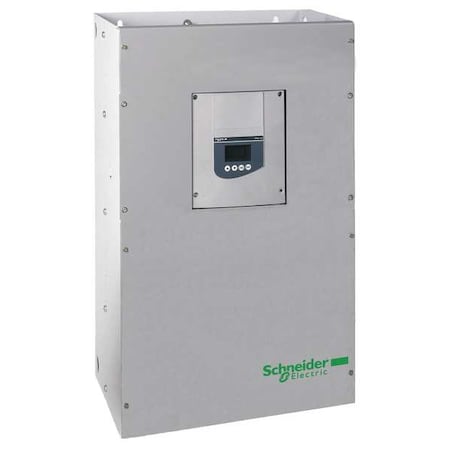

SCHNEIDER ELECTRIC ATS48C41Y Soft Start 208-690V AC410a Ats48

SCHNEIDER ELECTRIC ATS48C41Y Soft Start 208-690V AC410a Ats48zoom

Attributes

Key Value
ApplicationHeavy Duty Industry, Pu.
ApprovalsCCC, CSA, IEC 60947-4-2.
BypassYes
Communication PortModbus
Control Voltage110 to 230V AC, 110 to .
Current Rating410 A
Depth11.81 in
EnclosureYes
Enclosure RatingIP20, NEMA 1
Enclosure TypeIP00
Family SeriesSquare D Soft Starters
Gross Weight0 lbs
Height26.38 in
Horsepower Rating350 HP
HP @ 3 Phase - 240V150 hp
HP @ 3 Phase - 480V300
IncludesExclusive motor Torque .
Input Voltage208 to 690V AC
Inputs/Outputs4 Logic Inputs, 1 PTC P.
IP Rating20
ItemSoft Start
Item NumberATS48C41Y
ManufacturerSquare D
Manufacturer Part Number116723
Max Current361 A
Maximum Operating Tempe.40 ?C
Minimum Operating Tempe.-10 ?C
Mounting TypePanel Mount
Net Weight113.3188 lbs
Nominal Load Voltage208 V, 240 V, 380 V, 41.
Output Current410 A
Output Voltage208 to 690V AC
Overall Depth300 mm, 11.81 in
Overall Dimensions670 x 400 x 300 mm
Overall Height26.38 in
Overall Length670 mm
Overall Width400 mm, 15.75 in
PhaseThree, 3 Phase
Power Rating400 kW
Primary TypeSoft Start
Ramp Time1 to 60 sec.
SeriesAltistart ATS 48 Series
Size670 H x 400 W x 300 Dia.
Special FeaturesExternal Bypass
StandardsC-Tick, CCC, CSA, DNV, .
Start TypeTorque Control Start
Stop Time1 to 60 sec
Supply Voltage208 to 690 V
Temperature (F)14-104 ?F
Temperature Operating R.-10 to +40 ?C
TypeSoft Start
UPC Code785901982463
Voltage Rating208 to 690 V
Width15.75 in
With Bypass / No BypassNo Bypass

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comATS48C41Y285.391In StockSchneider Electric285.39 @ 1
thumbzoomRadwellATS48C41Y5705.71In StockSCHNEIDER ELECTRIC5705.7 @ 1
thumbzoomcappusa.com1365125719.221In StockSquare D5719.22 @ 1
thumbzoomblackhawksupply.comATS48C41Y5776.991In StockSquare-D5776.99 @ 1
thumbzoomgordonelectricsupply.comATS48C41Y6200.01In Stock10SQUARE D6200.0 @ 1
thumbzoomGalcoATS48C41Y-SQD6388.751In StockSquare D113.31886388.75 @ 1
thumbzoomNex InstrumentATS48C41Y6476.01In StockSchneiderElectric6476.0 @ 1
thumbzoomZoroG35190746588.871In StockSchneider Electric140.06588.87 @ 1
RS Delivers820-10096620.8441In StockSchneider Electric6620.844 @ 1
thumbzoomsustainablesupply.comC14950857183.131In StockSchneider Electric140.07183.13 @ 1
us.rs-online.com700083807486.461In StockSchneider Electric7486.46 @ 1
thumbzoomRaptor SuppliesAG7GFF10147.5045361In StockSCHNEIDER ELECTRIC10147.504536 @ 1
