Square D 8536SEH1V03

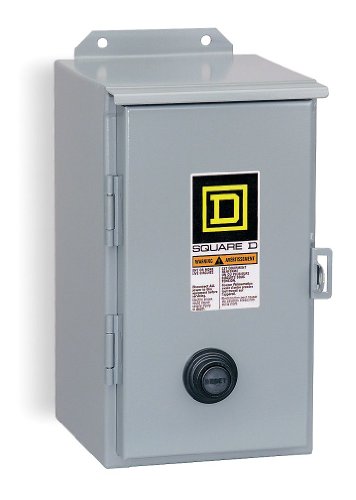

Square D - 8536SEH1V03 - Magnetic Motor Starter, 240VAC Coil Volts, NEMA Size: 3, Starter Type: NEMA

Square D - 8536SEH1V03 - Magnetic Motor Starter, 240VAC Coil Volts, NEMA Size: 3, Starter Type: NEMAzoom

Attributes

Key Value
[Uc] Control Circuit Vo.220 V AC 50 Hz || 240 V.
[Ue] Rated Operational .600 V AC
Accessory GroupC5
ActionNonreversing
Amps AC90 A
ApplicationUSED FOR FULL-VOLTAGE S.
Auxiliary Contact Compo.without
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog Number8536SEH1V03
China Rohs RegulationProduct out of China Ro.
Coil Voltage220 V AC 50 Hz;240 V AC.
Coil Volts240V AC
ConditionNew
Connectionscrew clamp terminals
Control Circuitcommon control circuit
Control Typeno control units
Country of OriginMexico
Country of Origin (subj.Mexico
Depth219 mm, 8.63 in
Electrical Connectionscrew clamp terminals
Enclosure NEMA Rating3R
Estimated Lead Time (in.11
Eu Rohs DirectiveNot compliant
GTIN785901823278
Height25.28 in, 642 mm
HP @ 3 Phase - 208V25 hp
HP @ 3 Phase - 240V30 hp
HP @ 3 Phase - 480V50 hp
HP @ 3 Phase - 575V50 hp
Hz50/60
ItemMagnetic Motor Starter
Item TypeMotor starter;No contro.
Line Rated Current90 A
Local Signallingwithout pilot light
Made in USANo
ManufacturerSquare D, Schneider Ele.
Motor Starter Typenon reversing
Nema Degree Of Protecti.NEMA 3R painted sheet s.
Nema Size3
NEMA Size3
Number of Poles3
Phase3, 3 phase
Poles Description3P
Power Supply240VAC@60HZ - 220VAC@50.
Product CertificationsUL Listed || CSA || NEMA
Product Or Component Ty.motor starter
Range Of ProductS
Rated Power In Hp25 HP 200 V AC || 30 HP.
Reach RegulationReference contains Subs.
Reset TypeMELTING ALLOY 3 THERMAL.
Size8.63
Special Featureswithout pilot light
StandardCSA-UL LISTED-NEMA
StandardsUL Listed/CSA Certified
Starter TypeNEMA
Sub BrandS
Thermal Overload Typemelting alloy 3
UPC785901823278
Voltage Rating600 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width326 mm, 12.84 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.com8536SEH1V031378.011In StockSquare D1378.01 @ 1
thumbzoomindustrialrefrigerationparts.com8536SEH1V031433.131In StockSquare D2.01433.13 @ 1
thumbzoomZoroG33972561899.991In Stock25Square D By Schneider Electric1899.99 @ 1
thumbzoomgordonelectricsupply.com8536SEH1V032180.01In Stock10SQUARE D2180.0 @ 1
thumbzoommayerelectric.comSQD8536SEH1V032188.641In StockSQUARE D2188.64 @ 1
Grainger6B3872475.01In Stock19SQUARE D2475.0 @ 1
thumbzoomsustainablesupply.comC12087612856.271In StockSquare D38.152856.27 @ 1
thumbzoomcrescentelectric.com5134863559.771In StockSquare D by Schneider Electric3559.77 @ 1
