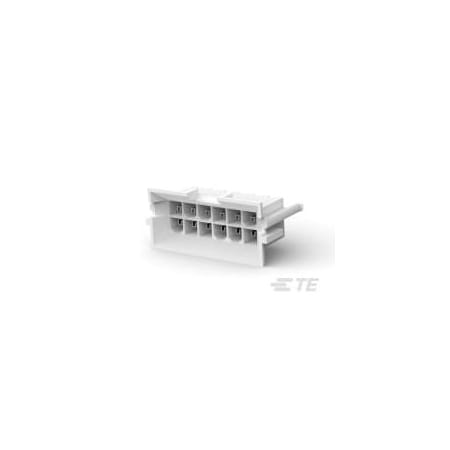

TE Connectivity 1-1586586-2

mpn1-1586586-2
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 1-1586586-2

Brand: TE Connectivity
PartNumber: 1-1586586-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Application	Power
Applications	General Purpose, Indust.
Base Product Number	1586586
Category	Connectors, Interconnec.
Color	Natural
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Length - Mating	-
Contact Length - Post	0.138" (3.50mm)
Contact Material	Brass Alloy
Contact Plating Thickne.	0.1 ?m
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	9 A
Current Rating (Amps)	9A
Description	CONN HEADER VERT 12POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	1-1586586-2-ND
Fastening Type	Latch Holder
Features	Circuit Identification .
Flammability Rating	UL 94 V-2
Height	14.1 mm
Hole Center to Center	4.2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.555" (14.10mm)
Insulation Material	Polyamide (PA), Nylon
Item	Header
Length	31.8 mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-1586586-2
Manufacturer Standard L.	13 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-2
Max. Insulation Dia.	3.1 mm
Max. Temp.	105?C
Max. Voltage	600V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	12
Number of Positions	12
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tray
Package Quantity	1
Pitch - Mating	0.165" (4.20mm)
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	VAL-U-LOK
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E2847.
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Solder
Termination	Solder
Voltage Rating	600VAC
Width	0.5905 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	1-1586586-2	0.4129	1	1550	TE Connectivity / AMP Brand	0.4129 @ 250
Waldom	TE CONNECTIVITY AMP BRAND 1-1586586-2	0.46	220	1549	TE CONNECTIVITY/AMP BRAND	0.46 @ 250
RS Delivers	865-3712	0.7656	1	250	TE Connectivity	0.7656 @ 250
Digi-Key	2324408	0.96	95	1160	TE Connectivity AMP Connectors	0.96 @ 250
Newark	95Y4831	0.977	1	1549	AMP - TE CONNECTIVITY	0.977 @ 250
Zoro	G900938868	156.2	1	250	Te Connectivity	156.2 @ 250
