Telemecanique XS4P12MA230

B000LEDJOY

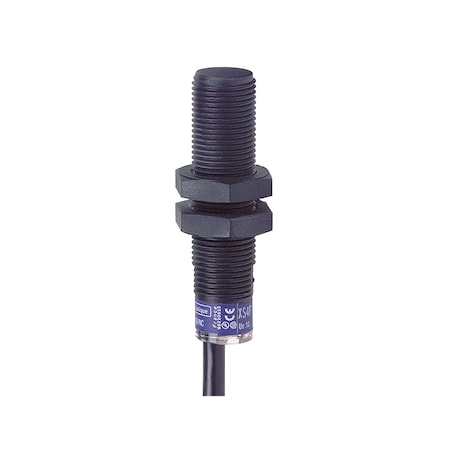

Telemecanique XS4P12MA230; Proximity Sensor; 24-240V; 200mA

Telemecanique XS4P12MA230; Proximity Sensor; 24-240V; 200mAzoom

Attributes

Key Value
Application-
Basic Proximity Sensor .PPS
Body materialPPS
Body StyleCylindrical
BrandTelemecanique
Cable Length2 m
Catalog NumberXS4P12MA230
Connectionlead 2m
Connection TypeCable 2-Wire
ConnectorCable
Control Output1 NO
Country of OriginFrance
Description/Special Fea.Output State 1 LED Yell.
EnclosureIP68 DOUBLE INSULATION .
Housing MaterialPlastic
IndicatorOutput state 1 LED yell.
IP RatingIP68
IP ratingIP68
ItemInductive Sensor 264Vac.
Item TypeINDUCTIVE PROXIMITY SEN.
Kind of foreheadembedded
Length52 mm
Made in USANO
ManufacturerTELEMECANIQUE SENSORS, .
Manufacturer seriesXS
Max. Detecting Distance4 mm
Max. operating current200mA
Maximum Voltage Drop<5.5 V closed)
Measurement Range4 mm
Mounting TypeM12 x 1 Threaded
Operating Temperature-13...158 F (-25...70 C)
Operating temperature-25...70?C
OutputNO
Output configuration2-wire NO
Overall length52mm
Package Quantity1
Primary TypeInductive Proximity Sen.
Promotion RestrictionNot eligible for promot.
Proximity Sensor Electr.Cable Connection
Proximity Sensor Operat.Less than Or Equal to 2.
Proximity Sensor Power .24 to 240V AC/DC
Range0...4mm
Sensing Range4 mm
Sensor52 mm
SeriesXS4P Series
Shock Resistance50 gn 11 ms IEC 60068-2.
Special FeaturesIP68 DOUBLE INSULATION .
StandardIP68 double insulation .
StandardsCSA; Ecolab; UL; CE Mar.
Sub BrandOSISENSE
Supply Voltage24...240 V AC/DC 50/60 .
Supply Voltage Limits20-264 V AC/DC
Switch housingM12
Switching Capacity5...200 mA AC/DC
Switching Frequency3000 Hz
Switching frequency max3kHz
Type of sensorinductive
UPC785901314400
UPC Code785901314400
Vibration Resistance25 gn +/- 2 mm 10-55 Hz.
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXS4P12MA23074.111In StockTELEMECANIQUE SENSORS74.11 @ 1
thumbzoomZoroG0564177120.991In StockTelemecanique Sensors0.18120.99 @ 1
Onlinecomponents.comXS4P12MA230126.3711Telemecanique126.37 @ 1
RS Delivers324-1232135.072123Telemecanique Sensors135.072 @ 1
Mouser996-XS4P12MA230152.3915Telemecanique152.39 @ 1
sustainablesupply.comC3048590155.181In StockTelemecanique Sensors0.18155.18 @ 1
thumbzoomNewark96F2196161.11In StockTELEMECANIQUE SENSORS161.1 @ 1
us.rs-online.com70279147178.211In StockTelemecanique Sensors178.21 @ 1
thumbzoomNational Supply Network69657088184.711In StockTelemecanique Sensors184.71 @ 1
thumbzoomcrescentelectric.com129115192.321In StockTelemecanique192.32 @ 1
