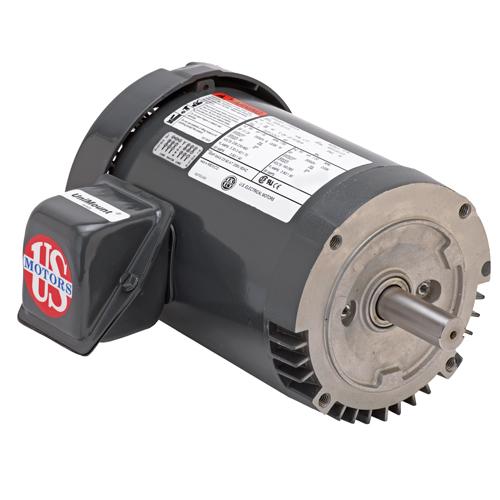

U1P2DFCR 1 HP Electric Motor 1755(1800) RPM 60hz 3 Phase 208-230/460 Volt 56C Frame (C-Face) TEFC Footless

mpnU1P2DFCR
brandname: U.S. Motors
manufacturername: U.S. Motors

U1P2DFCR 1 HP Electric Motor 1755(1800) RPM 60hz 3 Phase 208-230/460 Volt 56C Frame (C-Face) TEFC Footless

U1P2DFCR 1 HP Electric Motor 1755(1800) RPM 60hz 3 Phase 208-230/460 Volt 56C Frame (C-Face) TEFC Footless

zoom

Model: U1P2DFCR
Manufacturer: US Motors (NIDEC)

Attributes

Key	Value
Amps	3.1-3/1.5
Bearings	Ball
Efficiency	85.5%
Enclosure Type	TEFC (Totally Enclosed .
Frame	56C
HP	1
Hz	50/60
Insulation Class	F
Manufacturer Model #	FM80
Maximum Ambient Tempera.	40? C
Mounting	Face
Number of Speeds	1
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	1755
Service Factor	1.25
Ship Weight	30 lbs.
Volts	208, 230, 460
