- mpn901-9610-3
- brandname: Amphenol RF
- manufacturername: Amphenol RF

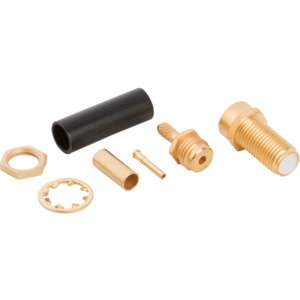

RF Connectors / Coaxial Connectors BLHD JCK 316/174 GLD
- Brand: Amphenol RF
- PartNumber: 901-9610-3
- Model: 901-9610-3
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Amphenol RF
- Label: Amphenol RF
Attributes
| Key | Value |
|---|
| Angle | Straight |
| Application | Commercial |
| Body Finish | Gold |
| Body material | Stainless Steel |
| Body Material | Stainless Steel |
| Body plating | Gold |
| Cable Group | RG-174, 188, 188A, 316,. |
| Cable Type | RG-/U 174 ; RG-/U 179 ;. |
| Category | Connectors, Interconnec. |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector | socket |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact material | Beryllium Copper |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Contact plating | gold-plated |
| Contact Termination | Solder |
| Dielectric Material | Tetrafluoroethylene Flu. |
| Electrical mounting | crimped |
| Fastening Type | Threaded |
| Features | - |
| Frequency | 12.4GHz |
| Frequency - Max | 12.4 GHz |
| Housing Color | Gold |
| Housing Finish | Gold |
| Housing Material | Stainless Steel |
| Impedance | 50Ohm, 50 Ohms |
| Includes | 8 pcs - 1 Connector, 1 . |
| Ingress Protection | Weatherproof |
| Insertion Loss | - |
| Insulator material | PTFE |
| Kind of cable | Belden 7805A, |
| Kind of connector | female |
| Length | 1.5 in |
| Manufacturer | Amphenol RF |
| Mating Cycles | 500 |
| Mating Type | Threaded |
| Max. frequency | 12.4GHz |
| Mechanical durability | 100 cycles |
| Mechanical mounting | for panel mounting, |
| Mfr | Amphenol RF |
| Mounting Feature | Bulkhead - Front Side N. |
| Mounting Type | Panel Mount, Bulkhead |
| Number of Ports | 1 |
| Operating Temperature | -65?C ~ 165?C |
| Operating temperature | -65...165?C |
| Package | Bulk |
| Packaging | Bulk |
| Part Status | Active |
| Primary Type | SMA |
| Series | SMA Series, - |
| Shield Termination | Crimp |
| Spatial orientation | Straight |
| Special Features | Captivated Contact |
| Termination | Crimp ; Solder |
| Type | Cable Jack |
| Type of connector | SMA |
| Voltage Rating | 375 V |
| Wave impedance | 50? |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Freelance Electronics | 901-9610-3 | 3.62 | 1 | 27 | | Amphenol | | 3.62 @ 1 |
| Onlinecomponents.com | 901-9610-3 | 19.61 | 1 | 17 | | AMPHENOL RF | | 19.61 @ 1 |
| Hotenda | H837670 | 27.23 | 1 | 27 | | Amphenol RF | | 27.23 @ 1 |
 | Digi-Key | ARF1203-ND | 28.77 | 1 | 27 | | Amphenol RF | | 28.77 @ 1 |
| Verical | 901-9610-3 | 29.59 | 2 | 164 | | Amphenol RF | | 29.59 @ 2 |
 | jensentools.com | 57458.1 | 30.19 | 1 | 27 | | Amphenol RF | | 30.19 @ 1 |
| Radwell | 901-9610-3 | 30.3 | 25 | 27 | | AMPHENOL | | 30.3 @ 25 |
| Mouser | 523-901-9610-3 | 30.63 | 1 | 37 | | Amphenol RF | | 30.63 @ 1 |
| Hawk Electronics | 901-9610-3 | 32.4 | 25 | In Stock | | Amphenol-RF | | 32.4 @ 25 |
 | Newark | 90F8492 | 34.75 | 1 | 8 | | AMPHENOL RF | | 34.75 @ 1 |
| us.rs-online.com | 70142711 | 36.73 | 1 | 7 | | Amphenol RF | | 36.73 @ 1 |
| TME | 901-9610-3 | 37.05 | 1 | 27 | | AMPHENOL RF | | 37.05 @ 1 |
