- mpnBAS40067F
- brandname: DIODES ZET
- manufacturername: DIODES ZET

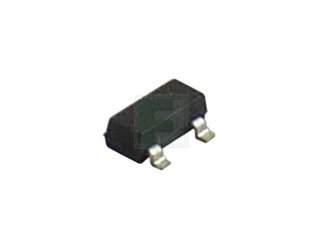

DIODES BAS40-06-7-F BAS40 Series 40 V 600 mA Surface Mount Schottky Barrier Diode - SOT-23-3 - 3000 item(s)
- Brand: DIODES
- PartNumber: BAS40-06-7-F
- Model: BAS40-06-7-F
- PackageQuantity: 1
- Manufacturer: DIODES
- Label: DIODES
Attributes
| Key | Value |
|---|
| Alternate Parts | BAS40-06 |
| Base Part Number | BAS40-06 |
| Base Product Number | BAS40-06 |
| Capacitance | 5pF |
| Case | SOT23, Standard |
| Category | Discrete Semiconductor . |
| Current - Average Recti. | 200mA (DC) |
| Current - Reverse Leaka. | 200 nA @ 30 V, 200nA @ . |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Schottky |
| Kind of package | reel, |
| Lead Free Status / RoHS. | RoHS Compliant |
| Leakage current | 0.2?A |
| Load current | 0.2A |
| Manufacturer | DIODES INCORPORATED, Di. |
| Manufacturer Part Number | BAS40-06-7-F |
| Manufacturer Standard L. | 14 Weeks |
| Max. forward impulse cu. | 0.6A |
| Max. forward voltage | 1V |
| Max. off-state voltage | 40V |
| Mfr | DIODES INCORPORATED |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Operating Temperature -. | -55, -55?C ~ 125?C |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23. |
| Packaging | Reel |
| Part Status | Active |
| Power dissipation | 0.35W |
| Reverse recovery time | 5ns |
| Reverse Recovery Time (. | 5ns, 5 ns |
| Semiconductor structure | common anode, |
| Series | - |
| SKU | 508180 |
| Speed | Small Signal =< 200mA (. |
| Standard Package | 3,000 |
| Supplier Device Package | SOT-23-3 |
| Type | Diode |
| Type of diode | Schottky rectifying |
| Voltage - DC Reverse (V. | 40V, 40 V |
| Voltage - Forward (Vf) . | 1V @ 40mA, 1 V @ 40 mA |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Newark | 95AC8093 | 0.018 | 3000 | 87000 | | DIODES INC. | | 0.018 @ 3000 |
| iodParts | BAS40-06-7-F | 0.0227 | 12000 | 78000 | | Diodes Inc. | | 0.0227 @ 12000 |
| Onlinecomponents.com | BAS40-06-7-F | 0.0278 | 1 | 16889 | | DIODES ZETEX | | 0.0278 @ 3000 |
 | TME | BAS40-06-7-F | 0.032 | 20 | 6000 | | DIODES INCORPORATED | | 0.032 @ 3000 |
| Verical | BAS40-06-7-F | 0.045 | 189 | 3000 | | Diodes Inc. | | 0.045 @ 3000 |
| Mouser | 621-BAS40-06-F | 0.049 | 1 | 9711 | | Diodes Inc. | | 0.049 @ 3000 |
| Digi-Key | 808536 | 0.0609615 | 3000 | 3000 | | Diodes Incorporated | | 0.0609615 @ 3000 |
| RS Delivers | 738-4819 | 0.2916 | 1 | 14400 | | DiodesZetex | | 0.2916 @ 3000 |
| AmazonSC | B076FC5TRB | 1470.75 | 1 | 3000 | | DIODES | | 1470.75 @ 3000 |
