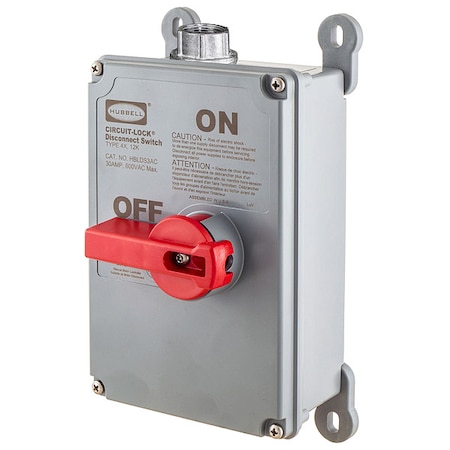

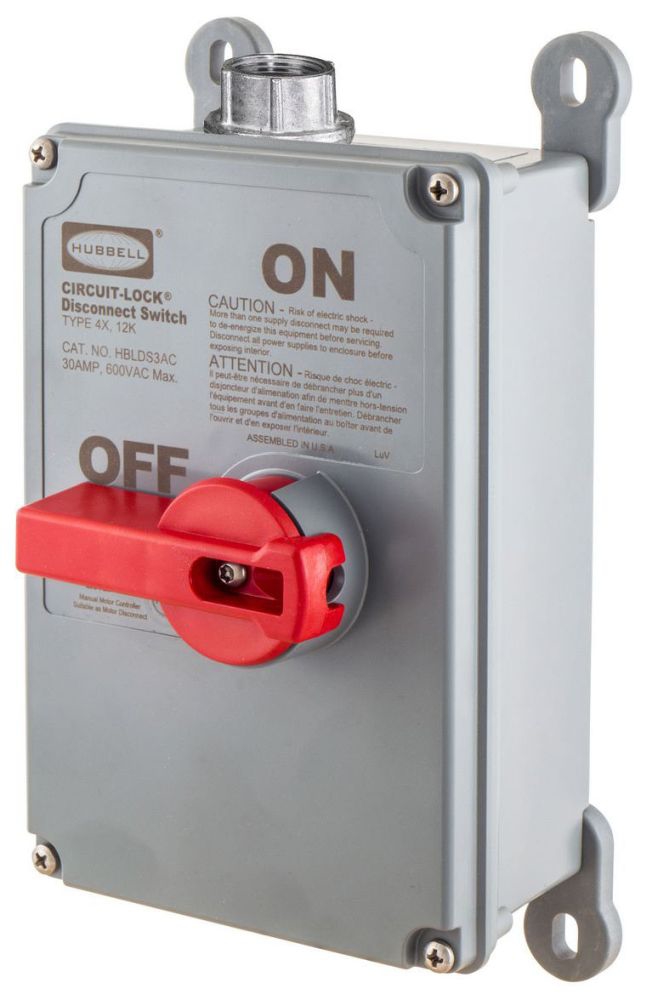

Hubbell HBLDS3VFD

B00GQQL9KM

Hubbell HBLDS3VFD Misc Products

Hubbell HBLDS3VFD Misc Productszoom

Attributes

Key Value
ActionSnap
ActuatorLever, No
Amperage30 A
Amperage Rating30 Amp, 30, 30A
Amps30 A
ApplicationLabelless
ApprovalsCSA, UL
BrandHubbell, Hubbell Wiring.
Brand NameHubbell-Wiring
Catalog NumberHBLDS3VFD
ColorGrey
ConnectionTerminal Screws
Connection TypeTerminal Screw
Contact ConfigurationTwo Position
Contact Form3PST
Contact Rating30A
Country of OriginPL - Poland, Poland
Country Of OriginPoland
Current / amperage rati.30 A
Current Rating30A, 30 A
Current rating30 A
Current Stock97
Degree of ProtectionIP69K
Depth4.1 in
Dielectric strengthWithstands 3000V AC min.
Dimensions8.5 in x 6 in x 4.12 in.
DutyHeavy
ECCNEAR99
EnclosureNEMA 4X, 12, Type 4X, I.
Enclosure CompositionNon-Metallic
Enclosure Depth0-10 inches
Enclosure Height0 to 9 3/4 inches
Enclosure RatingNEMA 4X
Enclosure typeType 4X, IP69k
Enclosure Width0 to 9 3/4 inches
Energy Star FlagNo
Environmental ConditionsNEMA 4X, VA and V0 Flam.
Family SeriesHubbell Disconnect Swit.
Frequency Rating60Hz
Fuse TypeClass J
FusibleNo
Fusible / NonfusibleNonfusible
Gross Weight2.59 lbs
GTIN00783585242439
Handle ColorRed
Height7.6 in, 4.12 in, 4.12 i.
HP15 hp @ 600V AC, 1 to 1.
IncludesAll Mounting Hardware, .
Industry Standard(s)UL Listed
International ShippingNo
IP Rating54, IP66
ItemDisconnect Switch, Encl.
Item NameDisconnect Switch
Item NumberHBLDS3VFD
Item TypeDisconnect Switches
Lead TimeExpected to ship in 1-2.
Length8.5 in, 8.5 in.
Made in USANo
ManufacturerHubbell Wiring Device-K.
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberHBLDS3VFD
MaterialComposite, PBT Enclosur.
Max HP 120V 1P1 hp
Max HP 230/240V 3PH7.5 hp
Max HP 240V 1P3 hp
Max HP 460/480V 3PH15 hp
Max HP 600V 3PH15 hp
Maximum Current30 A
Maximum Load Capacity1 hp at 120 Volt AC, 7..
Maximum Operating Tempe.75 C
Minimum Operating Tempe.-40 C
MountingWall, Feet, Adjustable .
Mounting methodExternal fully adjustab.
Mounting TypeSurface Mount
MpnHBLDS3VFD
NEMA RatingNEMA 4, NEMA 4X, NEMA 12
Net Weight2.295 lbs
Neutral Assembly Includ.Yes
Number of Poles3
Number of Wires5
Operating Cycles6,000 Cycles
Operating temperatureMaximum continuous 75C .
Operating TemperatureMaximum continuous 75?C.
Operating Temperature R.-40 to 75 deg C
Operator TypeSelector - Red
Phase3
Poles3
Primary TypeDisconnect
Protection MethodNonfusible
RoHS FlagYes
SeriesNon-Fused Series
ShapeSquare Top
Size8.5 in x 6 in x 4.12 in
SKUZO-G4314177
Special FeaturesVariable Frequency Drive
StandardUL Listed
Standard Conduit Size0.75 in
StandardsUL, CSA, UL 746C Listed.
StyleHeavy duty
Sub BrandCircuit-Lock, Circuit-L.
SubCategoryElectrical
Switch typeThree Pole Unfused
Temperature Operating R.-40 to 75 C
Terminal TypeScrew
TypeDisconnect Switches, No.
UL ClassUL98
UNSPSC39122233, 39122205
UPC783585242439, 783585242.
UPC Code783585242439
Voltage600V AC
Voltage Rating600 Volt AC, 600, 600 V
Wattage18000
Width5.1 in, 6 in.
Width (in)6

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB007PD6T0A184.521In StockHubbell184.52 @ 1
Onlinecomponents.comHBLDS3VFD225.6813HUBBELL225.68 @ 1
AmazonTPB07J4VR15L299.361In Stock2HUBBELL WIRING DEVICE-KELLEMS299.36 @ 1
AmazonUNKB07J4VR15L299.361In StockHUBBELL WIRING DEVICE-KELLEMS299.36 @ 1
Monarch Electric203820322.01In StockHubbell-Wiring322.0 @ 1
thumbzoomZoroG4314177335.99184Hubbell2.6335.99 @ 1
thumbzoomMRO Supply1026650361.331In StockHubbell Wiring361.33 @ 1
standardelectricsupply.com2232043371.661In StockHubbell371.66 @ 1
thumbzoomsustainablesupply.comC1162646389.281In StockHubbell2.6389.28 @ 1
thumbzoomgordonelectricsupply.comHBLDS3VFD392.951In StockHUBBELL392.95 @ 1
thumbzoomsimsupply.comZO-G4314177424.92197Hubbell424.92 @ 1
thumbzoomGalcoHBLDS3VFD-HBBL433.61In StockHubbell2.59433.6 @ 1
thumbzoomRadwellHBLDS3VFD450.01In StockHUBBELL KELLEMS450.0 @ 1
thumbzoomcrescentelectric.com3894457.4714Hubbell Wiring Device - Kellems457.47 @ 1
thumbzoomFrench GerlemanHUBHBLDS3VFD459.321In StockWiring Device-Kellems459.32 @ 1
steinerelectric.com604705471.741In StockHubbell Wiring Device-Kellems471.74 @ 1
Graybar25366455484.31041In StockHubbell Wiring Device - Kellems484.3104 @ 1
Newark79T0576495.931In StockHUBBELL WIRING DEVICES495.93 @ 1
thumbzoomUnited Electric502910498.1618WIRING DEVICE-KELLEMS498.16 @ 1
us.rs-online.com70394211505.851105Hubbell Wiring Device-Kellems505.85 @ 1
grainger.caWWG16R068513.43516441In StockHUBBELL WIRING DEVICE-KELLEMS2.6513.4351644 @ 1
kirbyrisk.com2401763572.821In StockHubbell572.82 @ 1
thumbzoomRaptor SuppliesAA7UZY779.5527481In StockHUBBELL WIRING DEVICE-KELLEMS779.552748 @ 1
