Molex / Waldom 09-48-4069

B00GQR4LCE

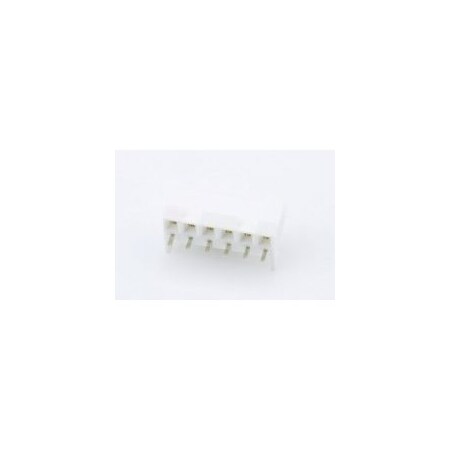

Molex / Waldom 09-48-4069 Connector Headers and PCB Receptacles

Molex / Waldom 09-48-4069 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number000948
CategoryConnectors, Interconnec.
Connector TypeReceptacle, Bottom Entry
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Length - Post0.125" (3.18mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)4.5A
DescriptionCONN RCPT 6POS 0.156 TI.
Detailed Description6 Position Receptacle, .
Digi-Key Part Number23-0009484069-ND
Fastening TypeLocking Ramp
FeaturesBoard Hooks
Ingress Protection-
Insulation ColorNatural
Insulation Height0.449" (11.40mm)
Insulation MaterialPolyester
ManufacturerMolex
Manufacturer Product Nu.0009484069
Manufacturer Standard L.55 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Positions6
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
PackageTray
Pitch - Mating0.156" (3.96mm)
Product StatusActive
Row Spacing - Mating-
SeriesKK396, 41815
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical09-48-40690.7245351Molex0.72 @ 50
WaldomMOLEX 09-48-40690.747550MOLEX0.74 @ 75
Onlinecomponents.com09-48-40690.93150MOLEX / WALDOM0.93 @ 50
Avnet09-48-40691.0476150Molex1.0476 @ 50
HotendaH14210971.144150Molex1.144 @ 50
thumbzoomNewark24M99711.35701373MOLEX1.35 @ 50
thumbzoomZoroG77835411.42755029Molex1.42 @ 75
thumbzoomDigi-Key8633471.626150Molex1.626 @ 50
