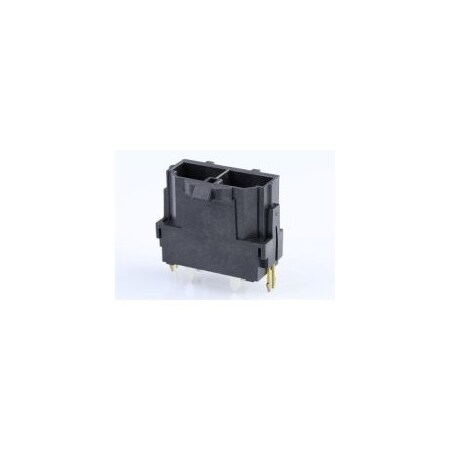

Molex / Waldom 42819-2223 Connector Headers and PCB Receptacles
- Brand: Molex
- PartNumber: 42819-2223
- Model: 428192223
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 42819-2223 |
| Alternate Part No. | 538-42819-2223 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector | socket |
| Connector series | Mini-Fit Sr. |
| Connector Type | Male Blade |
| Contact Finish - Mating | 30.0?in (0.76?m) |
| Contact Finish - Post | Copper Zirconium Alloy |
| Contact Finish Thicknes. | Tin |
| Contact Finish Thicknes. | Automotive, General Pur. |
| Contact Length - Mating | 0.201" (5.11mm) |
| Contact Length - Post | - |
| Contact Material | Brass, Polyamide (PA46). |
| Contact Plating | Gold |
| Contact plating | gold-plated |
| Contact Shape | Gold |
| Contact Type | 0.394" (10.00mm) |
| Contacts pitch | 10mm |
| Current Rating | 50 A |
| Current Rating (Amps) | - |
| Electrical mounting | THT |
| Family Name | Mini-Fit Sr. |
| Fastening Type | - |
| Features | - |
| Housing Material | Thermoplastic |
| Ingress Protection | UL94 V-0 |
| Insulation Color | - |
| Insulation Height | Rectangular |
| Insulation Material | Board Lock |
| Kind of connector | male |
| Manufacturer | Molex |
| Manufacturer Part No. | 42819-2223 |
| Mated Stacking Heights | 100.0?in (2.54?m) |
| Material Flammability R. | Black |
| Maximum current | 50A |
| Mechanical mounting | on PCBs, |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Solder |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of pins | 2 |
| Number of Positions | 1, 2 |
| Number of Positions Loa. | Board to Cable/Wire |
| Number of Rows | 1, - |
| Operating Temperature | - |
| Orientation | Vertical |
| Overall Contact Length | 0.827" (21.00mm) |
| Package | Active, Tray |
| Package Quantity | 1 |
| Packaging | Tray |
| Part # Aliases | 0428192223 |
| Part Status | Active, Header |
| Pitch | 10.00 mm (0.394"), 10 mm |
| Pitch - Mating | 2 |
| Plating Material | Gold over Nickel |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Type | Headers |
| Rated voltage | 600V |
| Row Spacing - Mating | All |
| Series | 42819, *, Tray, 42819 S. |
| Shrouding | Through Hole |
| Spatial orientation | straight |
| Special Features | Not Low-Halogen |
| Style | Shrouded - 4 Wall |
| Termination | Locking Ramp |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Sr. |
| Type | Vertical Header, Shroud. |
| Type of connector | wire-board |
| UPC Code | 800756512709 |
| Voltage Rating | -, 600 V |
