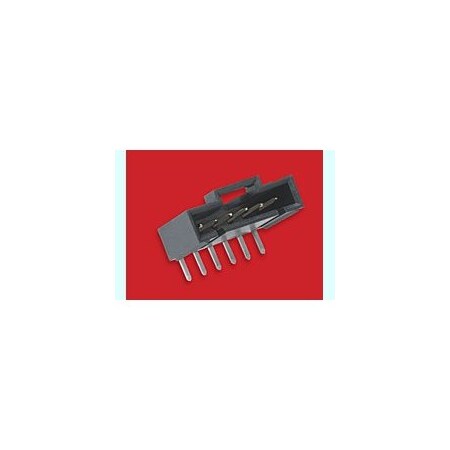

0705530005 Conn Shrouded Header (4 Sides) HDR 6 POS 2.54mm Solder RA Thru-Hole SL Tube, (25 Items)
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL |
| Alternate Mfr Part Numb. | A-70553-0005 |
| Angle | Right Angle |
| Application | For PCB |
| Applications | Automotive, General Pur. |
| Base Product Number | 070553 |
| Case | Standard |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connection Direction | Angle |
| Connector Shape | Square |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 15.0?in (0.38?m) |
| Contact Finish Thicknes. | 74.8?in (1.90?m) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Contact Material | Copper Alloy, Phosphor . |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 6POS 2.. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM4904-ND |
| Family Name | SL |
| Fastening Type | Latch Holder |
| Features | - |
| Housing Material | Polyester |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.215" (5.45mm) |
| Insulation Material | Polyester, Glass Filled |
| Manufacturer | Molex Inc, Molex |
| Manufacturer Product Nu. | 0705530005 |
| Manufacturer Standard L. | 18 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Hole Size | 0.043 in |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | -40 to +105 ?C, -40?C ~. |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Overall Length | 0.535 " |
| Package | Tube |
| Package Quantity | 1 |
| Pin Length | 0.13 " |
| Pin Spacing | 0.1 in |
| Pitch | 2.54 mm (0.100") |
| Pitch - Mating | 0.100" (2.54mm) |
| Plating Material | Gold |
| Primary Type | Board Mount |
| Product Header | Wire-to-Board Shrouded . |
| Product Status | Active |
| Row number | 1 |
| Row Spacing - Mating | - |
| Series | SL 70553, 70553 Series |
| Shrouding | Shrouded - 4 Wall |
| SKU | 497855 |
| Special Features | Not Low-Halogen |
| Strain Relief | Low Profile |
| Style | Board to Cable/Wire |
| Termination | Solder, Surface Mount |
| Type | Semiconductor, Right An. |
| Voltage Rating | 250V, 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Sager Electronics | 0705530005 | 0.579 | 1 | 6641 | | Molex | | 0.579 @ 10 |
| Power and Signal Group | 70553-0005 | 0.6693 | 1200 | 10 | | Molex | | 0.6693 @ 1200 |
| Waldom | MOLEX 70553-0005 | 0.7 | 80 | 5495 | | MOLEX | | 0.7 @ 80 |
 | jensentools.com | 10195614 | 0.87 | 1 | 6575 | | Molex | | 0.87 @ 10 |
 | NEP Electronics | 70553-0005 | 0.8971 | 85 | 6575 | | Molex | | 0.8971 @ 85 |
| Onlinecomponents.com | 70553-0005 | 1.112 | 30 | 10 | | Molex | | 1.112 @ 10 |
 | Jameco | 1933697 | 1.49 | 90 | 10 | | Molex | | 1.49 @ 90 |
 | Component Electronics | 299-2544 | 1.54 | 1 | 16 | | Molex | | 1.54 @ 10 |
 | TME | MX-70553-0005 | 1.85 | 1 | 815 | | MOLEX | | 1.85 @ 10 |
 | Digi-Key | 114967 | 1.88 | 1 | 1411 | | Molex | | 1.88 @ 10 |
 | Newark | 64T4861 | 1.91 | 1 | 10 | | MOLEX | | 1.91 @ 10 |
| us.rs-online.com | 70190956 | 2.06 | 1 | 10 | | Molex Incorporated | | 2.06 @ 10 |
| Bristol Electronics | 70553-0005 | 2.1937 | 1 | 547 | | MOLEX | | 2.1937 @ 10 |
 | Misumi USA | 70553-0005 | 2.28 | 1 | 10 | | Molex | | 2.28 @ 10 |
| RS Delivers | 679-2522P | 2.5872 | 1 | 420 | | Molex | | 2.5872 @ 10 |
| Little Diode | 705530005 | 17.8217325 | 1 | 10 | | Molex Inc | | 17.8217325 @ 10 |
 | Zoro | G7767609 | 87.2 | 1 | 10 | | Molex | | 87.2 @ 10 |
