- mpnF1.5X3WH6
- brandname: Panduit
- manufacturername: Panduit

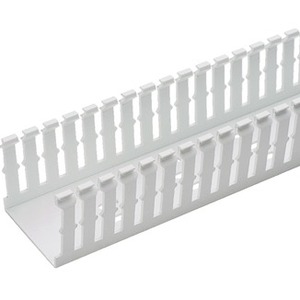

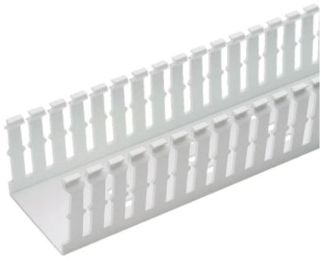

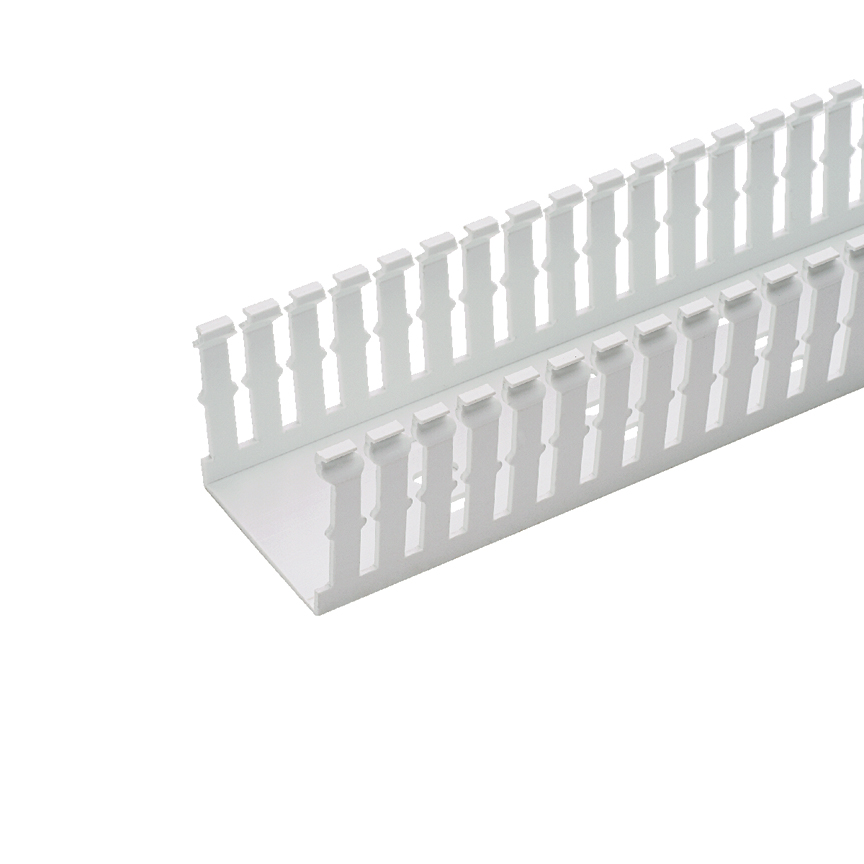

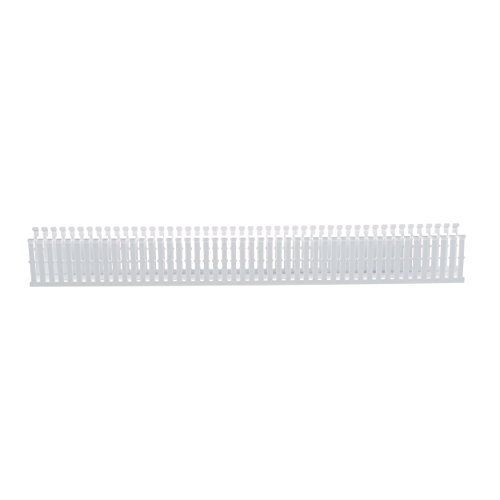

Panduit F1.5X3WH6 Type F Narrow Slotted Duct, PVC, White
- Brand: Panduit
- PartNumber: F1.5X3WH6
- Model: F1.5X3WH6
- Color: White
- Size: 1.5 by 3-Inch
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Application | For general purpose con. |
| Approval | Approval |
| ARRA Compliant | Y |
| Base Product Number | F1.5X3 |
| Brand | Panduct? |
| Brand Name | Panduit |
| Buy American Compliant | Y |
| Category | Cables, Wires - Managem. |
| Color | White |
| Color Family | White |
| Connection Type | Standard Mounting Holes |
| Country of Origin | US - United States |
| Country of Origin (subj. | Unknown |
| Country of Origin 2Digit | US |
| Cover Included | Cover Included |
| Cover Part Number | C1.5WH6 |
| Description | WIRE DUCT SLOTTED SCREW. |
| Detailed Description | Wire Duct White Slotted. |
| Digi-Key Part Number | 298-10598-ND |
| Dimenions | 1.5 W x 3 in. H |
| Duct Type | Duct Type |
| EAN | 00074983375363 |
| ECCN | EAR99 |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Family Series | Panduit Miscellaneous |
| Features | - |
| Flammability Rating | UL94V-0 |
| Gross Weight | 1.8655 lbs |
| GTIN Carton | 50074983375368 |
| GTIN Package | 00074983375363 |
| Hazardous Material Flag | N |
| Height | 3.12 in., 3 1/8 in, 3.0. |
| Includes | Base Only |
| Item | Wiring Duct |
| Item Number | F1.5X3WH6 |
| Length | 6.00' (1.83m), 6 ft, Le. |
| Length (Straight Wirewa. | 6 ft |
| Manufacturer | PANDUIT CORP, Panduit |
| Manufacturer Part Number | F1.5X3WH6 |
| Manufacturer Product Nu. | F1.5X3WH6 |
| Manufacturer Standard L. | 2 Weeks |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Poly-Vinyl Chloride (PV. |
| Measurement System | Metric |
| Mercury Content Indicat. | No |
| Mfr | PANDUIT CORP |
| Min Order Qty | 6 |
| Min. Order UOM | Foot |
| Mount Method | Mounting Holes |
| Mounting | Mounting |
| Mounting Style | Screw Mount |
| Mounting Type | Screw |
| Net Weight | 1.8655 lbs |
| Nominal Height | 3 in |
| Nominal Width | 1 1/2 in |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Package | Bulk |
| Packaged Quantity | 6 |
| Pallet Quantity | 1,800 |
| Pallet Volume | 44.679013 |
| Pallet Weight | 589.9500 |
| Primary Type | Wiring Duct |
| Product Header | Narrow Finger Slotted W. |
| Product Line | Panduct |
| Product Name | Panduct Duct |
| Product Segment | IEI |
| Product Status | Active |
| Product Type | Duct, Base Wiring Duct |
| Protection Class | Duct, Wiring |
| Quantity | 1 |
| REACH Status | False |
| RoHS Compliant | Compliant |
| Series | Panduct PanelMax Series. |
| Slot Height | 2.1 in |
| Slot Width | 0.2 in |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Slot-to-Slot Centerline | 1/2 in |
| Special Features | Flame Retardant, Narrow. |
| Standard Carton Volume . | 2.9786 |
| Standard Carton Weight . | 39.3300 |
| Standard Package | Standard Package |
| Standard Package Volume. | 0.1489 |
| Standard Package Weight. | 1.9665 |
| Standards | CE Compliant, RoHS, UL . |
| Standards Met | RoHS Compliant, UL Reco. |
| Std Carton Height In | 6.4 |
| Std Carton Height MM | 162.56 |
| Std Carton Length In | 72.4 |
| Std Carton Length MM | 1838.96 |
| Std Carton Width In | 10.3 |
| Std Carton Width MM | 261.62 |
| Std Ctn Qty | 120 |
| Std Package Height In | 3 |
| Std Package Height MM | 76.2 |
| Std Package Length In | 72 |
| Std Package Length MM | 1828.8 |
| Std Package Width In | 1.5 |
| Std Package Width MM | 38.1 |
| Std. Pkg. Qty. | 6 |
| Std. Pkg. UOM | Foot |
| Sub Brand | Panduct? |
| Type | Wiring Duct Base, Slott. |
| UNSPSC | 39131712 |
| UOM EA PK | PK |
| UPC | 07498337536 |
| UPC Code | 074983375363 |
| UPC ID | UPC ID |
| Wall Type | Slotted |
| Width | 1.75" (44.45mm), 1 3/4 . |
| Wire Duct Type | Slotted (Raceway), Base |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Heilind Electronics | F1.5X3WH6 | 7.2258 | 24 | 282 | | PANDUIT | | 7.2258 @ 24 |
 | French Gerleman | PANDF15X3WH6 | 7.62 | 6 | 20 | | Panduit | | 7.62 @ 20 |
 | cbtcompany.com | F1.5X3WH6 | 7.67 | 1 | 834 | | PANDUIT | | 7.67 @ 20 |
 | mecampbell.com | PANF1.5X3WH6 | 7.67 | 120 | 20 | 56 | Panduit | | 7.67 @ 120 |
 | Galco | F1.5X3WH6-PNDT | 8.33 | 6 | 20 | | Panduit | 1.8655 | 8.33 @ 20 |
 | Platt.com | 0740161 | 8.97 | 1 | 180 | | Panduit | | 8.97 @ 20 |
| kirbyrisk.com | 488275 | 8.97 | 6 | 400 | | Panduit | | 8.97 @ 20 |
 | turtle.com | PAN F1.5X3WH6 | 9.04 | 1 | 20 | | Panduit | | 9.04 @ 20 |
 | mayerelectric.com | PANF1.5X3WH6 | 9.24 | 1 | 20 | | PANDUIT | 39.33 | 9.24 @ 20 |
| Graybar | 93171019 | 9.3184 | 1 | 132 | | Panduit | | 9.3184 @ 20 |
 | Newark | 65H9539 | 9.56 | 120 | 20 | | PANDUIT | | 9.56 @ 60 |
| steinerelectric.com | 46737 | 10.47 | 1 | 20 | | Panduit | | 10.47 @ 20 |
| us.rs-online.com | 70044101 | 42.37 | 1 | 20 | | Panduit | | 42.37 @ 20 |
 | PCNation | 6WT550 | 43.82 | 1 | 20 | | PANDUIT | 2.0 | 43.82 @ 20 |
| Radwell | F15X3WH6 | 44.42 | 1 | 20 | | PANDUIT | | 44.42 @ 20 |
 | Carlton Bates Company | 07498337536 | 45.6 | 1 | 20 | | PANDUIT | | 45.6 @ 20 |
 | Zoro | G1867345 | 46.15 | 1 | 23 | | Panduit | 2.03 | 46.15 @ 20 |
| Hotenda | H162081 | 47.0125 | 1 | 20 | | Panduit | | 47.0125 @ 20 |
 | sustainablesupply.com | C1193395 | 48.56 | 1 | 20 | | Panduit | 2.03 | 48.56 @ 20 |
 | alldataresource.com | 277038 | 50.62 | 1 | 20 | | Panduit | | 50.62 @ 20 |
 | jensentools.com | 10015639 | 51.12 | 1 | 20 | | Panduit | | 51.12 @ 20 |
| CDW | 4310543 | 52.99 | 1 | 20 | | Panduit | | 52.99 @ 20 |
 | gordonelectricsupply.com | F1.5X3WH6 | 53.94 | 1 | 20 | 12 | PANDUIT | | 53.94 @ 20 |
 | Digi-Key | 448318 | 55.322 | 1 | 146 | | Panduit Corp | | 55.322 @ 20 |
| Airline Hydraulics | 1976041 | 55.48 | 1 | 20 | | PANDUIT | | 55.48 @ 20 |
 | Raptor Supplies | AC8YWU | 80.739711 | 1 | 20 | | PANDUIT | | 80.739711 @ 20 |
