Parker 68C-10-8

mpn68C-10-8
brandname: Parker
manufacturername: Parker

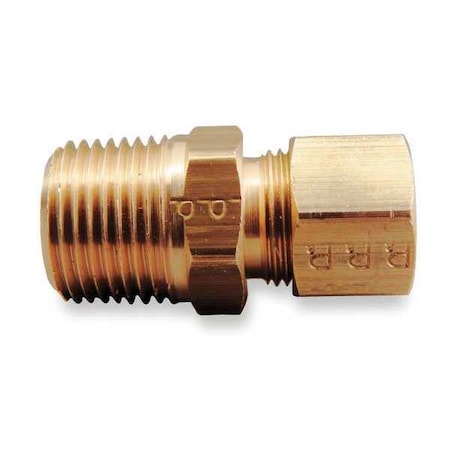

Parker Hannifin 68C-10-8 Brass Male Connector Compression Fitting, 5/8" Compression Tube x 1/2" Male Thread

Brand: Parker
PartNumber: 68C-10-8
Model: 68C-10-8
Color: Brass
Size: 5/8 inches x 1/2 inches
PackageQuantity: 1
Binding: Misc.
Manufacturer: Parker Hannifin Corporation
Label: Parker Hannifin Corporation

Attributes

Key	Value
Application	Air, Inert Gases, Non-C.
Availability:	In Stock
Basic Pipe Fitting Mate.	Metal
Basic Pipe Fitting Shape	Adapter
Brand:	Parker?
Compatible Tube Material	Aluminum, Copper, Therm.
Configuration Sub-Type:	Male Connector
Connection Type	Compression x MNPT
Country of Origin (subj.	United States
Country:	United States
End Connection Type	Compression, Threaded
End Style:	Tube x Male NPTF
Fitting Body Material	Brass
Fitting Connection Type	Compression x MNPT
Fitting Material	Brass
Fitting Pipe Size	1/2 in
Fitting Shape	Adapter
Fitting Side A Connecti.	Compression
Fitting Side A Tube Out.	5/8 in
Fitting Side B Connecti.	MNPT
Fitting Side B Pipe Size	1/2 in
Fitting/Connector Type:	Connector
For Tube OD	5/8 in
For Tube Outside Diamet.	5/8 in
Hex Size	7/8 in
Hex Size:	7/8 in
Inch/Metric:	Inch
Industry Standards:	SAE J-512, SAE 060102 B.
Item	Male Connector
Length:	1.9 in
Manufacturer:	Parker Hannifin
Max. Pressure	150 psi
Maximum Operating Press.	650 psi
Maximum Operating Tempe.	200 Degrees F
Minimum Operating Tempe.	65 Degrees F
MPN:	68C-10-8
Nominal Size:	5/8 x 1/2 in
Outer Diameter 1:	5/8 Inch
Overall Length	1 29/32 in
Parker Group:	Fluid Connector
Pipe Fitting Connection.	Compression x MNPT
Pipe Size	1/2"
Pipe Size (Fittings)	1/2"
Pipe Size - Pipe Fitting	1/2 in
Pressure Rating:	150 psi
RSPID:	39217757
RSPN:	39217757
Series	Compression
Series:	Compression, 68C
Specific Fitting Shape	Straight Adapter
Specific Pipe Fitting S.	Connector
Standards	SAE J512, UL
System of Measurement	Imperial
Temp. Range	-65 Degrees to 200 Deg.
Temperature Rating:	-65 to 250 deg F
Thread Size B	13/16-18
Threading Size	13/16-18
Tube Fitting Material	Brass
Tube Size	5/8 in
Type	Compression
UNSPSC:	40183110
UOM:	EACH

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
bscsource.com	68C108	9.29	1	10	Parker		9.29 @ 10
MRO Stop	9271012632	10.01	1	10	Parker		10.01 @ 10
Guardian	63031637	11.1	1	10	Parker		11.1 @ 10
Wilson	68C-10-8	12.17	1	10	Parker - Fluid System Connectors Division		12.17 @ 10
Airline Hydraulics	PARKER 68C-10-8	13.09	1	10	Parker		13.09 @ 10
National Supply Network	63031637	14.609	1	10	Parker		14.609 @ 10
Radwell	68C-10-8	22.0	10	10	PARKER BRASS PRODUCTS DIVISION		22.0 @ 10
Resourceful Supply	68C-10-8	52.0	10	16	Parker Hannifin		52.0 @ 10
Zoro	G1408985	53.29	1	200	Parker	1.7	53.29 @ 10
sustainablesupply.com	C1939069	74.63	1	10	Parker	1.7	74.63 @ 10
Raptor Supplies	AC2YMC	127.8583605	1	10	PARKER		127.8583605 @ 10
