Schneider Electric ATS48C25Y

B00CONCO8C

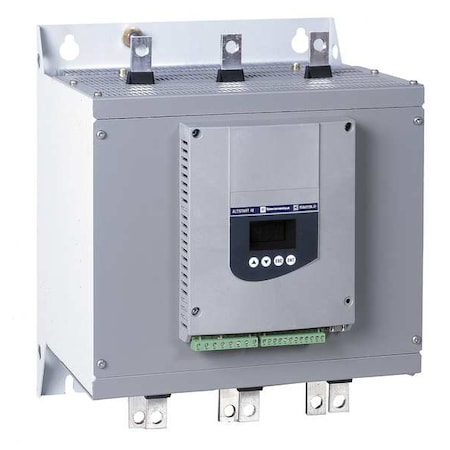

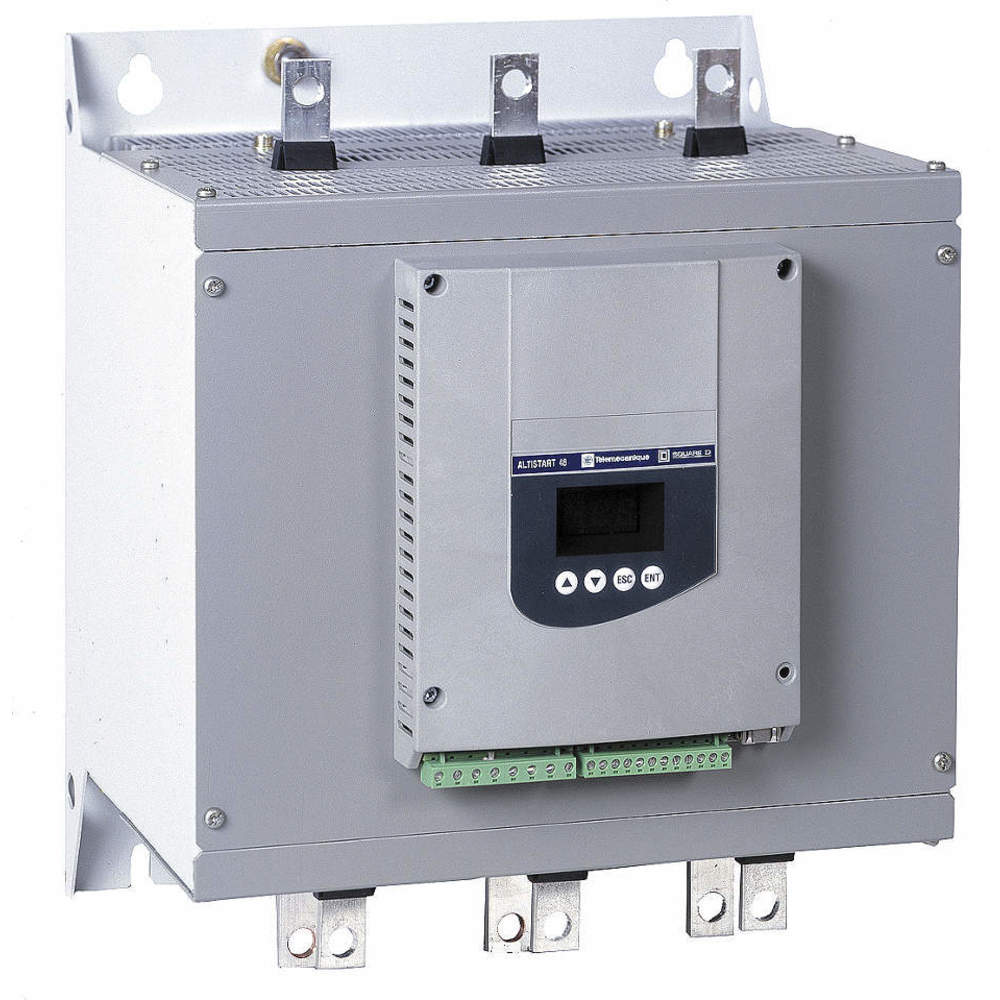

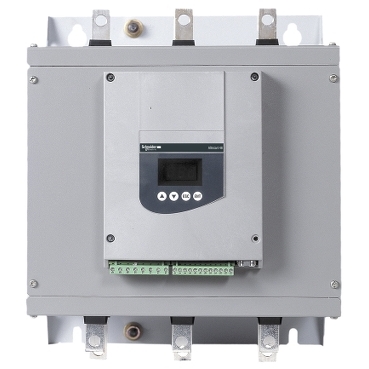

SCHNEIDER ELECTRIC ATS48C25Y Soft Start 208-690V AC250amp Ats48

SCHNEIDER ELECTRIC ATS48C25Y Soft Start 208-690V AC250amp Ats48zoom

Attributes

Key Value
Ambient air temperature.40?60 ?C (with current .
Ambient air temperature.-25?70 ?C
Analogue output typeCurrent output AO: 0-20.
ApplicationHeavy Duty Industry, Pu.
CategoryMotors, Actuators, Sole.
Communication data linkSerial
Communication PortModbus
communication port prot.Modbus
connector type1 RJ45
Control / Drive TypeMotor Starter
Control Voltage110 to 230V AC, 110 to .
Country of OriginID - Indonesia
Country of Origin (subj.Multiple
Current - Output240A
Current Rating250 A
Depth265 mm, 10.43 in
device connectionIn the motor supply line
device short nameATS48
Discrete input logicPositive logic Stop, Ru.
Discrete input number5
Discrete input typePTC, 750 Ohm at 25 ?C
Discrete output number2
Discrete output type(LO1) logic output 0 V .
Display3 Seven -Segment display
ECCNEAR99
Electromagnetic compati.Conducted and radiated .
Enclosure RatingIP20, NEMA 1
Enclosure TypeIP00
Features-
For Use With/Related Pr.Altivar Series
Frequency50/60 Hz
function availableExternal bypass (option.
Function TypeStart or Stop
Height380 mm, 14.96 in
Horsepower Rating75 hp
HP @ 3 Phase - 208V75 hp
HP @ 3 Phase - 230V100, 100 hp
HP @ 3 Phase - 240V100 hp
HP @ 3 Phase - 460V200 hp, 200
HP @ 3 Phase - 480V200 hp, 200
HP @ 3 Phase - 575V250 hp
IncludesExclusive motor Torque .
Input Voltage208 to 690V AC
Inputs/Outputs4 Logic Inputs, 1 PTC P.
InterfaceRS-485
IP Rating20
ItemSoft Start
MarkingCE
Maximum Operating Tempe.40 ?C
Minimum Operating Tempe.-10 ?C
Minimum switching curre.10 mA at 6 V DC for rel.
Motor power hp100 hp at 230 V for sta.
Motor power kW110 kW at 400 V for sev.
Motor TypeAC Motor
Mounting TypePanel Mount, Chassis Mo.
Net weight18.2 kg
Number of Motors1
Number of Units in Pack.1
Operating altitude<= 1000 m without derat.
Operating positionVertical +/- 10 degree
Operating Temperature-10?C ~ 60?C
Output Current250 A
Output Power100 hp @ 3 Phase, 230V .
Output Voltage208 to 690V AC
Overall Depth265 mm, 10.43 in
Overall Dimensions380 x 320 x 265 mm
Overall Height14.96 in
Overall Length380 mm
Overall Width12.6 in, 320 mm
Package 1 Height43.000 cm
Package 1 Length51.000 cm
Package 1 Weight22.000 kg
Package 1 Width46.000 cm
PhaseThree, 3 Phase
Physical interfaceRS485 multidrop
Power Rating250 kW
power supply frequency50?60 Hz ? 5?5 %
Primary TypeSoft Start
product certificationsCCC
Product destinationAsynchronous motors
Product or component ty.Soft starter
Product specific applic.Heavy duty industry and.
Product TypeSoft Start
Protection typePhase failure: line
Ramp Time1 to 60 sec.
Range of productAltistart 48
Relative humidity0?95 % without condensa.
SeriesAltistart ATS 48 Series.
Size380 H x 320 W x 265 Dia.
Special FeaturesExternal Bypass
StandardsC-Tick, CCC, CSA, DNV, .
Start TypeTorque Control Start
Starting Torque0% to 400%
Stop Time1 to 60 sec
Supply Voltage208 to 690 V
Temperature Operating R.-10 to +40 ?C
Transmission rate4800, 9600 or 19200 bps
TypeHMI Control, Soft Start.
Ue power supply voltage208?690 V ? 15?10 %
Unit Type of Package 1PCE
UNSPSC39121521
UPC Code785901982425
Use WithAsynchronous motors
Utilisation categoryAC-53A
Voltage - Load208 ~ 690V
Voltage - Supply110 ~ 230VAC
Voltage Rating208 to 690 V
Wattage - Load250 kW
Weight-
Width12.6 in, 320 mm
With Bypass / No BypassNo Bypass

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialrefrigerationparts.comATS48C25Y668.81In StockSchneider Electric668.8 @ 1
thumbzoomcappusa.com16816633839.521In StockSchneider Electric3839.52 @ 1
thumbzoomNex InstrumentATS48C25Y3921.01In StockSchneider Electric3921.0 @ 1
thumbzoommodiconpac.com68484065.01In StockSchneider Electric48.44065.0 @ 1
thumbzoomZoroG35347454344.491In Stock26Schneider Electric49.154344.49 @ 1
thumbzoomgordonelectricsupply.comATS48C25Y4405.01In Stock10SQUARE D4405.0 @ 1
AmazonTPB00CONCO8C4495.961In Stock30SCHNEIDER ELECTRIC4495.96 @ 1
thumbzoomkempstoncontrols.co.ukATS48C25Y4617.2924461In StockSchneider4617.292446 @ 1
Digi-Key167164824638.451In StockSchneider Electric4638.45 @ 1
RS Delivers820-09964653.6961In StockSchneider Electric4653.696 @ 1
thumbzoomsustainablesupply.comC14950834852.231In StockSchneider Electric49.154852.23 @ 1
Graybar220538145729.47211Square D (Schneider Electric)5729.472 @ 1
us.rs-online.com700083795848.631In StockSchneider Electric5848.63 @ 1
thumbzoomRaptor SuppliesAG7GFD6647.6514781In StockSCHNEIDER ELECTRIC6647.651478 @ 1
grainger.caSQDATS48C25Y7381.0841171In StockSCHNEIDER ELECTRIC49.157381.084117 @ 1
