Square D/Telemecanique

mpnHL100WTR2M10
brandname: SQUARE D
manufacturername: SQUARE D

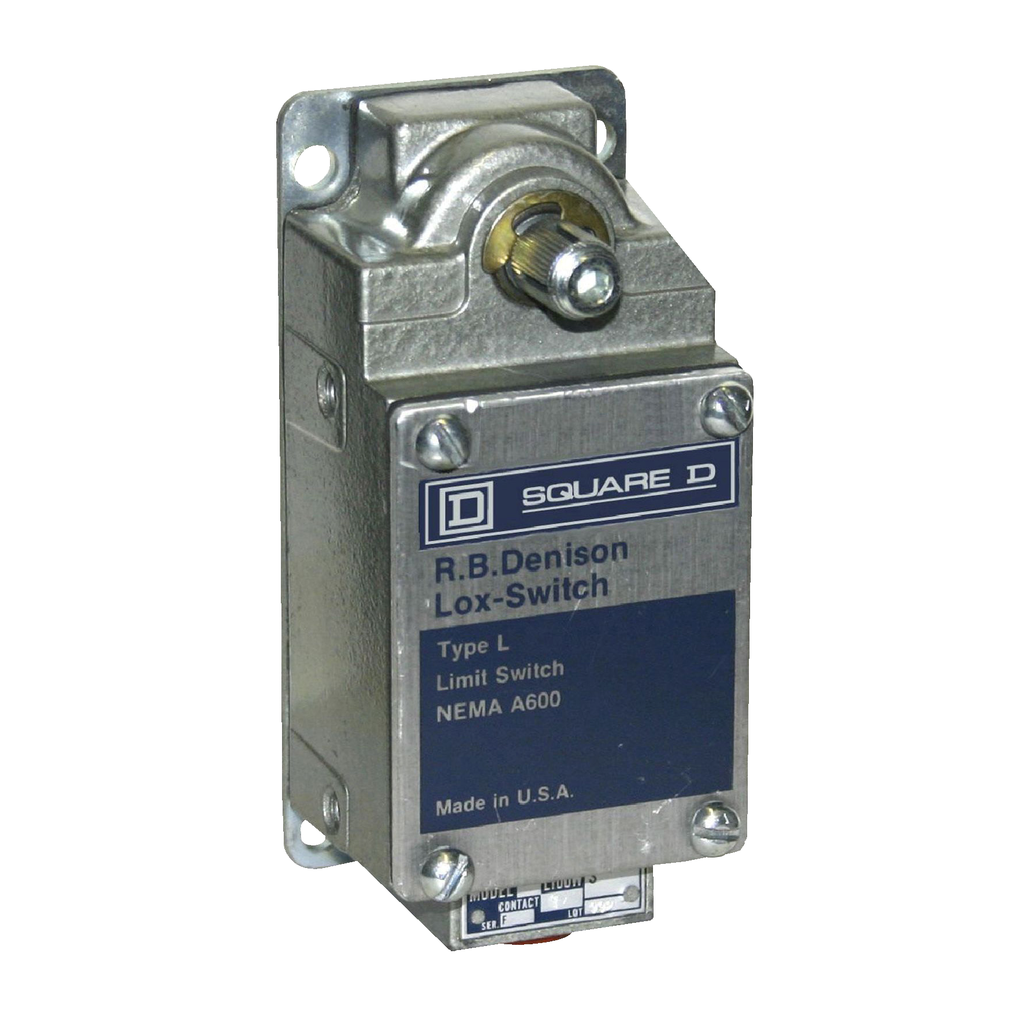

Square D Hl100Wtr2M10 Limit Switch

Brand: Square D/Telemecanique
Manufacturer: Square D/Telemecanique
Label: Square D/Telemecanique

Attributes

Key	Value
[Ithe] Conventional Enc.	20 A
[Ui] Rated Insulation V.	600 V 3)IEC 60947-1 \|\| .
[Uimp] Rated Impulse Wi.	2.5 kV AC for 1 minute .
Ambient Air Temperature.	0-350 ?F
Ambient Air Temperature.	0-350 ?F
Base Plate Style	style 2
Body Material	cast aluminium
Body Type	fixed
Cable Entry	1 entry for 3/4" - 14 N.
California Proposition .	Diisononyl phthalate (D.
Ccw Operation Contacts	1 NC + 2 NO
Contact Code Designation	A600, AC (Ue = 600 V) I.
Contact Form	Form XXY
Contact Operation	snap action
Contact Sequence Number	10
Contacts Material	90/10 AgCdO on copper b.
Contacts Style	A
Cw Operation Contacts	2 NC + 1 NO
Depth	3.41 in
Device Short Name	L300 \|\| L100
Electrical Connection	screw-clamp terminals A.
Electrical Shock Protec.	class 0 IEC 61140
Environmental Disclosure	ENVPEP111160EN
Eu Rohs Directive	Not applicable, out of .
Fixing Mode	by the body
Head Type	rotary head
Height	4.95-4.95 in
Ip Degree Of Protection	IP67 conforming to IEC .
Maximum Actuation Speed	90 ft/min with 45? cam .
Maximum Displacement An.	80 ?
Minimum Torque For Trip.	190 ozf.in
Nema Degree Of Protecti.	NEMA 1 Nema type 250 \|\|.
Net Weight	1.5 lb(US)
Number Of Poles	3
Positive Opening	without
Product Or Component Ty.	limit switch
Product Specific Applic.	mill switch
Protective Treatment	corrosion resistant gra.
Range Of Product	L100/300
Reach Regulation	Reference contains Subs.
Repeat Accuracy	+/- 0.03 %
Sale Per Indivisible Qu.	1
Series Name	severe duty mill
Shock Resistance	30 gn 9 ms IEC 60068-2-.
Short-Circuit Protection	20 A Bussmann class CC .
Switch Actuation	CW \|\| from left
Switch Function	TPDT-DB
Terminals Description I.	(1-2) left side contact.
Tripping Angle	17 ?
Type Of Approach	lateral approach
Type Of Operator	spring return without o.
Vibration Resistance	10 gn 10-55 Hz)IEC 6006.
Warranty	18 months
Width	2.25 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	HL100WTR2M10	468.0	1	In Stock	10	SQUARE D		468.0 @ 1
Radwell	HL100WTR2M10	500.0	1	In Stock		SCHNEIDER ELECTRIC SQUARE D		500.0 @ 1
mayerelectric.com	SQDHL100WTR2M10	611.94	1	In Stock		SQUARE D	1.5	611.94 @ 1
Graybar	22122994	746.2672	1	In Stock		Square D (Schneider Electric)		746.2672 @ 1
