TE CONNECTIVITY / POTTER & BRUMFIELD JWD-171-23

B00Q7WG0WM

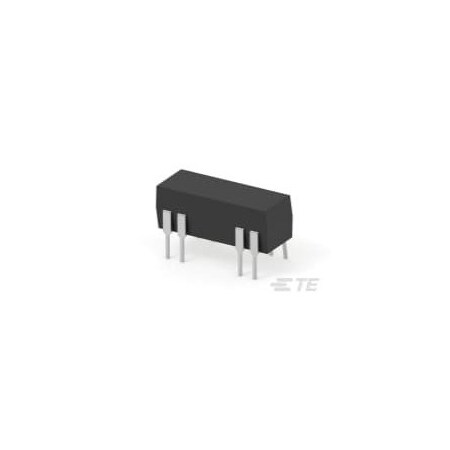

Tyco Electronics TYCO P&B DRY REED RELAY, DIP P

Tyco Electronics TYCO P&B DRY REED RELAY, DIP Pzoom

Attributes

Key Value
Alternate Mfr Part Numb.JWD-171-23
Base Product Number1393771
CategoryRelays
Coil Current24 mA
Coil Resistance500 Ohms
Coil TypeNon Latching
Coil Voltage12 VDC, 12VDC
Contact Current Rating0.5 A
Contact FormDPST-NO, DPST-NO (2 For.
Contact MaterialRuthenium, Ruthenium (R.
Contact Rating (Current)500 mA
Contact Voltage Rating100 VDC
Control Voltage12 VDC
Country of Origin (subj.China
Current Rating0.5 A
Dimensions0.770 L x 0.3 W x 0.320.
Features-
FunctionGeneral Purpose
MfrTE Connectivity Potter .
Mounting TypeThrough Hole
Must Operate Voltage9.6 VDC
Must Release Voltage1 VDC
Number of Pins14 Pin
Operate Time1.5 ms
Operating Temperature-35?C ~ 85?C
PackageBox
Part StatusActive
Primary TypeReed Relays
Product HeaderJWD Series Dual-In-Line.
Relay TypeReed
Release Time0.5 ms
Seal Rating-
SeriesJWD Series, JWD
StandardsUL, CSA, RoHS
Switching Voltage100VDC - Max
TerminationPCB
Termination StylePC Pin
Voltage Rating100

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1393771-57.15115TE Connectivity / AMP Brand7.15 @ 2
HotendaH384808312.331407TE Connectivity Potter & Brumfield Relays12.33 @ 2
WaldomTE CONNECTIVITY AMP BRAND 1-1393771-512.35400027TE CONNECTIVITY/AMP BRAND12.35 @ 4000
thumbzoomZoroG10097326312.5340002Te Connectivity12.53 @ 4000
us.rs-online.com7019875112.6412TE Connectivity12.64 @ 2
Newark37AC163018.572527AMP - TE CONNECTIVITY18.57 @ 25
Digi-Key1362569318.77500075TE Connectivity Potter & Brumfield Relays18.77 @ 2
