TE Connectivity 1776136-2

B096T2P6YQ

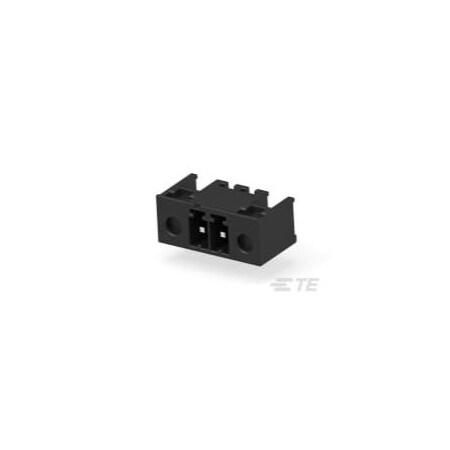

Conn Shrouded Header HDR 2 POS 3.5mm Solder RA Thru-Hole Box

Conn Shrouded Header HDR 2 POS 3.5mm Solder RA Thru-Hole Boxzoom

Attributes

Key Value
Base Product Number1776136
CategoryConnectors, Interconnec.
ColorBlack
Contact MaterialPhosphor Bronze
Contact Mating FinishTin
Contact Tail Length0.122" (3.10mm)
Country of Origin (subj.Italy
Current - IEC-
Current - UL11 A
DescriptionTERM BLOCK HDR 2POS 90D.
Detailed Description2 Position Terminal Blo.
Digi-Key Part NumberA112761-ND
FeaturesMating Flange
Header Orientation90?, Right Angle
Housing MaterialPolyamide (PA), Nylon
Ingress Protection-
Insulation Height0.285" (7.25mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1776136-2
Manufacturer Standard L.51 Weeks
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Levels1
Number of Positions2
Operating Temperature-40?C ~ 110?C
PackageBulk
Pitch0.138" (3.50mm)
Plug Wire Entry-
Positions Per Level2
Product StatusActive
Screw Size-
SeriesBuchanan
Termination StyleSolder
Torque - Screw-
TypeHeader, Male Pins, Shro.
Voltage - UL300 V
Wire Gauge or Range - A.-
Wire Gauge or Range - m.-
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1776136-21.14501698TE CONNECTIVITY/AMP BRAND1.14 @ 50
Newark21R56171.5120066TE CONNECTIVITY1.5 @ 1000
thumbzoomZoroG6009300871.5860066Te Connectivity1.58 @ 600
thumbzoomDigi-Key22217781.77501698TE Connectivity AMP Connectors1.77 @ 50
HotendaH15406781.87166TE Connectivity AMP Connectors1.87 @ 1
