- mpnD100P2E
- brandname: U.S. Motors
- manufacturername: U.S. Motors

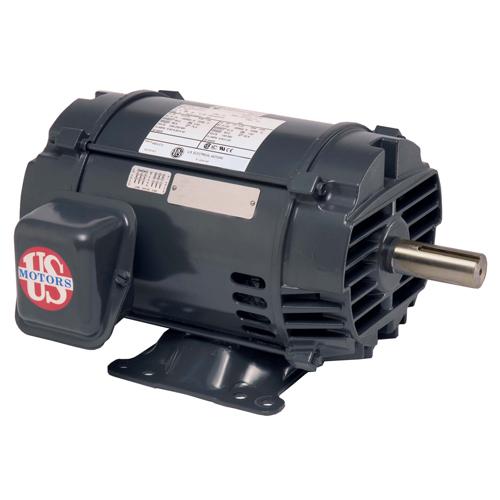

US Motors D100P2E
- PartNumber: D100P2E
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 225/112 |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 95.4% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 825.00 |
| Family Series | US Motors Motors |
| FL Amps | 225/112 |
| FL Efficiency | 95.4 |
| Frame | 404T |
| Frequency | 60 Hz |
| Gross Weight | 750 lbs |
| Hertz | 50, 60 |
| Horsepower | 100 hp |
| HP | 100 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | Motor,3PH,100HP,1800,23. |
| Item Number | D100P2E |
| Kilowatts | 74.6 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DC93 |
| Manufacturer Part Number | D100P2E |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DC93 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 404T |
| Net Weight | 0 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Part Number | D100P2E |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,785 RPM, 1785 |
| Service Factor | 1.15 |
| Ship Weight | 750 lbs. |
| Speed (RPM) | 1785 |
| Voltage | 190V, 230V, 380V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Volts | 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | D100P2E | 4780.4 | 1 | In Stock | | U.S. Motors | 750.0 | 4780.4 @ 1 |
 | Zoro | G0400904 | 4844.92 | 1 | In Stock | | U.S. Motors | 750.0 | 4844.92 @ 1 |
 | motorsandcontrol.com | D100P2E | 5458.98 | 1 | In Stock | | US Motors (Nidec) | 825.0 | 5458.98 @ 1 |
 | Galco | D100P2E-USM | 6692.31 | 1 | In Stock | | US Motors | 750.0 | 6692.31 @ 1 |
| motionindustries.com | 04787113 | 9822.33 | 1 | In Stock | | US Motors (Nidec) | | 9822.33 @ 1 |
