Burndy YA252NTC38

B00CBNROJ4

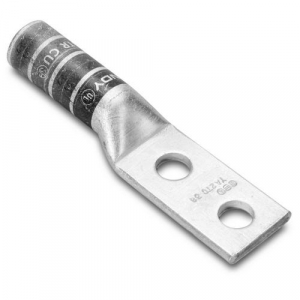

Burndy YA252NTC38 Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 1/0 AWG Conductor, 3/8" Stud Hole Size, 1-3/4" Stud Hole Spacing, 0.75" Tongue Width, 4.37" Length, Pink

Burndy YA252NTC38 Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 1/0 AWG Conductor, 3/8" Stud Hole Size, 1-3/4" Stud Hole Spacing, 0.75" Tongue Width, 4.37" Length, Pinkzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA252NTC38
Certification - CSA App.No
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorPink
Color CodePink
Conductor - Copper DLO .N/A
Conductor - Copper Soli.1/0 AWG
Conductor - Copper Soli.1/0 AWG
Conductor - Copper Str .100 (61) Navy
Conductor - Copper Str .1/0
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States
Country of Origin (subj.United States
Die Index12
Dimension - B Length fr.1-3/8 in
Dimension - B Length in.1.38 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.3/8
Dimension - Hole Size i.0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Ov.111 mm
Dimension - Length Over.4.37 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.51 in
Dimension - Pad Width i.0.75 in
Dimension - Strip Lengt.1-7/16
Dimension - Stud Size i.3/8
Dimension - Thread Size3/8
Dimension - Z inch0.43 in
Family SeriesBurndy Terminals, YA-2N.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Gross Weight0.0069 lbs
InsulatedNon-Insulated
Item NumberYA252NTC38
Item TypeLong Barrel, Tin Plated
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA252NTC38
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYA-2N
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: Compression T.
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Spacing1.75
Sub BrandTERMINALS, HYLUG
Terminal MaterialCopper
Terminal TypeBarrel - Long, Two Hole
Tongue Width0.75 "
TypeLong Barrel, Tin Plated
UL ListedYes
UPC781810020357
Voltage - Maximum35000
Voltage Rating35
Volts600 V
Wire Size1/0 AWG
Wire Size (AWG)1/0 AWG
Wire Strip Length1.4375 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com72532111.051In StockBURNDY11.05 @ 1
thumbzoomZoroG70243856615.811In Stock59Burndy15.81 @ 1
thumbzoomMegadepotYA252NTC3820.091In StockBurndy20.09 @ 1
thumbzoomusmegastore.comYA252NTC3820.091In StockBurndy20.09 @ 1
thumbzoomgordonelectricsupply.comYA252NTC3820.71In StockBURNDY20.7 @ 1
thumbzoomGalcoYA252NTC38-BURN27.081In StockBurndy0.006927.08 @ 1
thumbzoomcrescentelectric.com3153137.271In StockBurndy-US, a Hubbell affiliate37.27 @ 1
kirbyrisk.com352928946.741In StockBurndy46.74 @ 1
