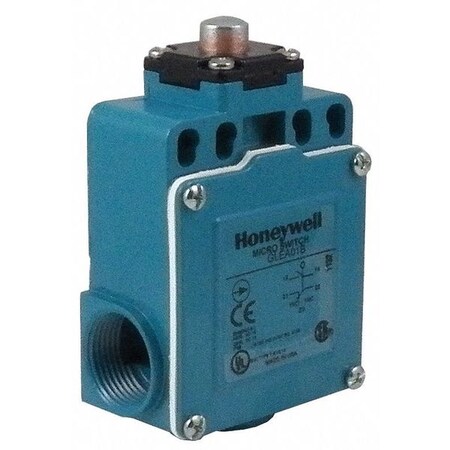

Honeywell GLEA24B

mpnGLEA24B
brandname: Honeywell
manufacturername: Honeywell

Honeywell Sensing and Control Part Number GLEA24B

Brand: Honeywell
PartNumber: GLEA24B
Model: GLEA24B
Manufacturer: Honeywell Sensing and Control
Label: Honeywell Sensing and Control

Attributes

Key	Value
Actuator	Plunger
Actuator Length	1.38"
Actuator Length - Limit.	1.38 in
Actuator Location	Top
Actuator Location - Lim.	Top
Actuator Style	Plunger
Actuator Type	Round (Pin Plunger), Pin
Alternate Part No.	785-GLEA24B
Amps	10
Base Product Number	GLEA24
Body Depth - Limit Swit.	1.18 in
Body Height - Limit Swi.	2.37 in
Body Material	Zinc Die Cast
Body Style - Limit Swit.	Miniature
Body Width - Limit Swit.	2.56 in
Brand	Honeywell
Category	Switches
Circuit	DPDT
Contact Form	2NC/2NO, DPDT, DPDT - 2.
Contact Form- Switches	2NC/2NO
Country of Origin (subj.	United States
Current Rating	10 A
Current Rating (Amps)	6A (AC), 550mA (DC)
Depth	1.18"
Differential Travel	0.025" (0.6mm)
Electrical Connection	Screw Terminals
Electrical Life	-
Family Name	GLS Family
Features	-
Head Type	Top Plunger Head
Height	2.37"
Ingress Protection	IP67 - Dust Tight, Wate.
IP Rating	IP66, IP 66, 67
Item	General Purpose Limit S.
Limit Switch Style	General Purpose Limit S.
Manufacturer	Honeywell
Manufacturer Part No.	GLEA24B
Mechanical Life	15,000,000 Cycles
Mfr	Honeywell Sensing and P.
Mounting Hole Size	0.118 in
Mounting Type	Chassis Mount
Movement	Linear
NEMA Rating	1, 4, 12, 13
Number of Poles	2
Number of Positions	2
Operating Force	2.90 in.-lb., 13 N, 131.
Operating Position	0.710" (18.0mm)
Operating Temp. Range	-40 Degrees to 185 Deg.
Operating Temperature	-40?C ~ 85?C, -25 to +8.
Overtravel	0.118" (3.0mm)
Package	Bulk
Pretravel	0.120" (3.0mm)
Product Category	Limit Switches
Product Status	Active
Release Force	-
Series	GLE/GLS, GLS, GLE Series
Standards	UL, CE, CSA, CCC. IEC 9.
Switch Function	On-Mom
Switch Type	Limit Switches
Termination	Screw
Termination Style	Screw, Screw Terminal
Tradename	Microswitch
Travel	Maximum Pretravel 0.12 .
Type	Limit
Voltage Rating	300 V, 300VAC/250VDC
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V
Voltage Rating AC	300 V
Voltage Rating DC	250 V
Width	2.56"
Wiring Entry	1/2" NPT

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Onlinecomponents.com	GLEA24B	61.21	1	6		HONEYWELL	61.21 @ 1
Zoro	G4060393	83.53	1	In Stock	15	Honeywell Micro Switch	83.53 @ 1
Carlton Bates Company	78454915235	95.24	1	In Stock		HONEYWELL	95.24 @ 1
Digi-Key	1249074	154.57	10	In Stock		Honeywell Sensing and Productivity Solutions	154.57 @ 10
Radwell	GLEA24B	160.0	1	In Stock		HONEYWELL MICROSWITCH	160.0 @ 1
swatee.com	GLEA24B	169.58	1	1		Honeywell	169.58 @ 1
Newark	38B6602	222.31	10	In Stock		HONEYWELL	222.31 @ 10
us.rs-online.com	70118645	255.77	8	In Stock		Honeywell	255.77 @ 8
kempstoncontrols.co.uk	GLEA24B	2085.64551	1	In Stock		Honeywell	2085.64551 @ 1
