Leeson E119361.00

B093QL7GQH

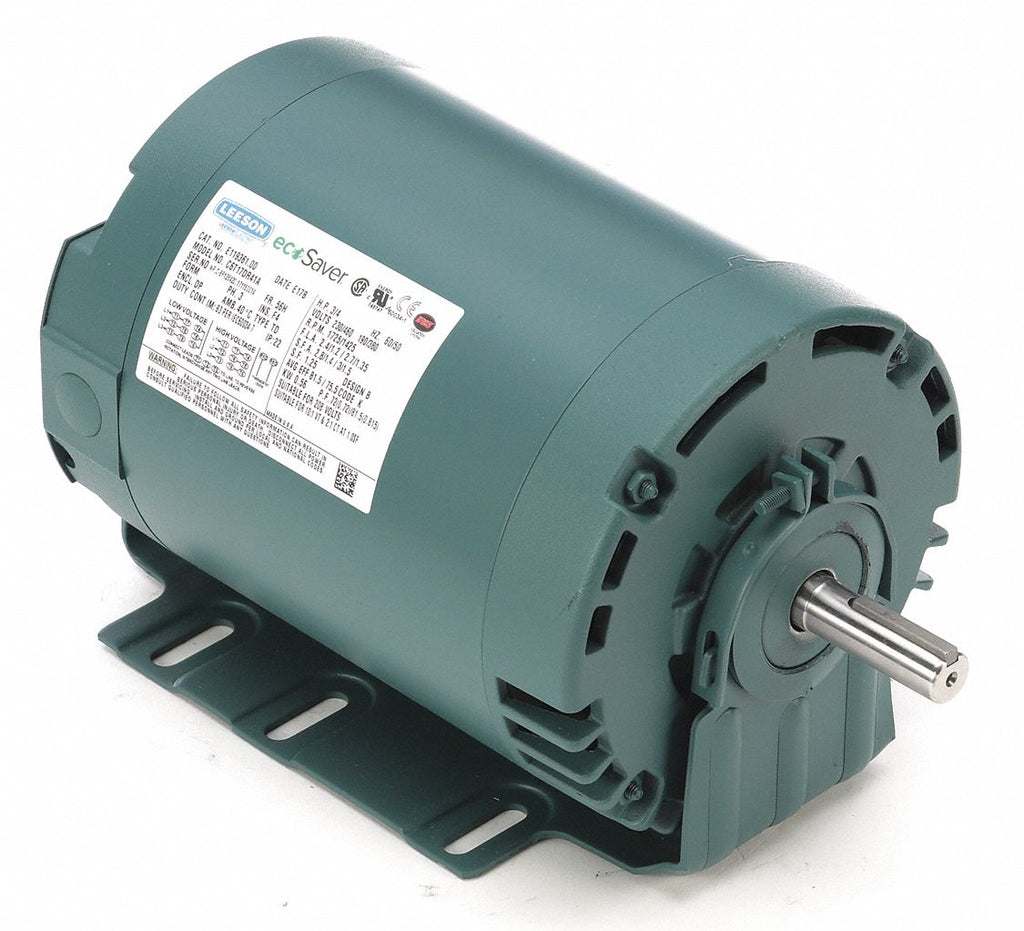

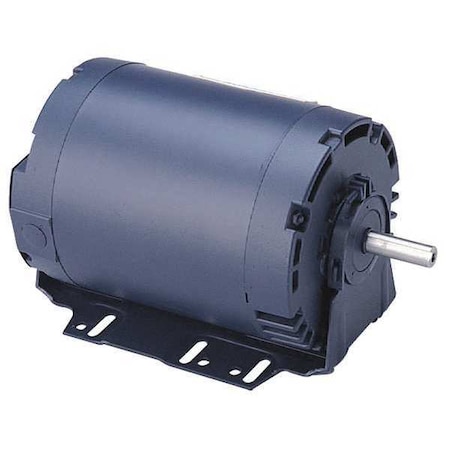

GP Motor, 3/4HP, 1725rpm, 56C, 3-Ph, 230/460V

GP Motor, 3/4HP, 1725rpm, 56C, 3-Ph, 230/460Vzoom

Attributes

Key Value
Amperage Rating2.4/1.2 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CategoryElectric Motor
CompositionSteel
Country of Origin (subj.United States
Description:.3/4HP..1725RPM.56.DP.2.
Dimensions11.82 in L x 6.4 in W x.
DutyContinuous
Duty CycleContinuous
Efficiency %81.5 %
EnclosureODP, Drip Proof
Enclosure TypeDP
Family SeriesLeeson Motors
Frame56H
Frame MaterialRolled steel
Frame RemarksResilient Base
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps2.4/1.20
Full Load Amps @ 50Hz2.4/1.20
Gross Weight0 lbs
Horsepower0.75 hp, 3/4 hp
HP3/4, 0.75
HP @ 50Hz3/4
Hz60/50
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Item NumberE119361.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberE119361.00
Manufacturers Warranty .1 yr
MaterialRolled steel
Max. Ambient Temp.40 Degrees C
MFG Part #:E119361.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeCradle Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
mountingResilient Base
Mounting TypeFoot Mount, Resilient B.
Nameplate RPM1,725
NEMA DesignB
NEMA Frame56H
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency81.5 %
Nominal Voltage240 VAC, 480 VAC
Number of Speeds1
Overall Length11 13/16 in
Phase3, Three, 3 ph
RotationReversible
RPM1800, 1,725 RPM
RPM @ 50Hz1,725
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Service Factor @ 50Hz1.25
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Speed1725 rpm
StandardsCE Certified, CSA Certi.
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720103692
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage (AC)230 VAC, 460 VAC
Voltage @ 50Hz230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight29 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoE119361.00-LEES155.041In StockLeeson155.04 @ 1
thumbzoomelectricmotorwholesale.comE119361297.01In StockLEESON297.0 @ 1
AmazonTPB0773VX5PM332.481In Stock2Leeson / Regal Beloit332.48 @ 1
thumbzoomDealers ElectricE119361.00354.811In StockLeeson29.0354.81 @ 1
thumbzoomZoroG2035069435.01In StockLeeson29.55435.0 @ 1
thumbzoomsustainablesupply.comC2787645613.041In StockLeeson29.0613.04 @ 1
kirbyrisk.com3198291616.251In StockLeeson616.25 @ 1
kscdirect.comLEE E119361.00674.551In StockLEESON ELECTRIC CORPORATION674.55 @ 1
factorysupplyoutlet.comSP85JZ706.361In StockLEESON706.36 @ 1
