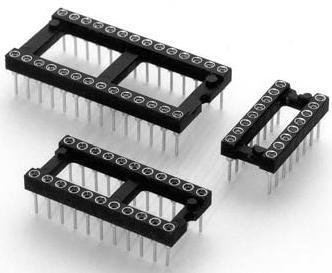

Mill-Max 110-99-640-41-001000 Socket, DIP; 40Pins; Low Profile; Open; Solder Tail; 0.6In.; Beryllium Copper; Tin/Lead (10 pieces)

mpn110-99-640-41-001000
brandname: Mill-Max
manufacturername: Mill-Max

Mill-Max 110-99-640-41-001000 Socket, DIP; 40Pins; Low Profile; Open; Solder Tail; 0.6In.; Beryllium Copper; Tin/Lead (10 pieces)

Size: 10 Piece
Manufacturer: Mill-Max
Label: Mill-Max

Attributes

Key	Value
Alternate Part No.	575-199640
Angle	Straight
Base Product Number	110-99
Body Material	Polybutylene Terephthal.
Brand	Mill-Max
Case Style	DIP
Category	Connectors, Interconnec.
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thicknes.	200.0?in (5.08?m)
Contact Finish Thicknes.	200.0?in (5.08?m)
Contact Material	Beryllium Copper
Contact Material - Mati.	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Mating Area Pla.	Tin?Lead
Contact Plating	Tin / Lead over Nickel,.
Contact Resistance	-
Current Rating	3 A
Current Rating (Amps)	3 A
Description	CONN IC DIP SOCKET 40PO.
Detailed Description	40 (2 x 20) Pos DIP, 0..
Digi-Key Part Number	ED3740-ND
Features	DIP socket, Open Frame
Flammability Rating	UL 94 V-0
Frame Type	Open
Housing Material	Polycyclohexylenedimeth.
Manufacturer	Mill-Max, Mill-Max Manu.
Manufacturer Part No.	110-99-640-41-001000
Manufacturer Product Nu.	110-99-640-41-001000
Manufacturer Standard L.	3 Weeks
Material Flammability R.	-
Mfr	Mill-Max Manufacturing .
Mounting Style	Through Hole
Mounting Type	Through Hole, Surface M.
Number of Contacts	40
Number of Positions	40
Number of Positions or .	40 (2 x 20)
Number of Rows	2
Operating Temperature	-55?C ~ 125?C
Operating Temperature R.	- 55 C to + 125 C
Package	Tube
Packaging	Tube
Pin Spacing	0.1" (2.54mm)
Pitch	2.54 mm
Pitch - Mating	0.100" (2.54mm)
Pitch - Post	0.100" (2.54mm)
Primary Type	DIP
Product	DIP / SIP Sockets
Product Category	IC & Component Sockets
Product Header	Dual-In-Line IC Socket .
Product Status	Active
Row Spacing	15.24 mm, 0.6" (15.2mm)
Series	110, 110 Series
Socket/Case Type	Open Frame
Terminal Post Length	0.125 In.
Termination	Solder, Through Hole
Termination Post Length	0.125" (3.18mm)
Termination Style	Solder Tail
Type	DIP, 0.6" (15.24mm) Row.
Voltage Rating	100 ; 150 V, 1 kV

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Newark	17C2387	1.86	1	302	MILL-MAX		1.86 @ 1
Arrow	110-99-640-41-001000	1.936	1	14	Mill-Max		1.936 @ 1
Mouser	575-199640	1.94	1	499	Mill-Max		1.94 @ 1
swatee.com	110-99-640-41-001000	2.17	1	1281	Mill-Max		2.17 @ 1
Bristol Electronics	110-99-640-41-001000	2.4	1	41	MILLMAX		2.4 @ 1
Hotenda	H1488650	2.41	1	41	Mill-Max		2.41 @ 1
Digi-Key	102877	2.55	1	439	Mill-Max Manufacturing Corp.		2.55 @ 1
us.rs-online.com	70206340	2.63	1	79	Mill-Max		2.63 @ 1
Future Electronics	7629348	6.276	100	41	Mill-Max		6.276 @ 100
AmazonSC	B00DKC5NIE	11.09	1	41	MILL MAX	0.0440625	11.09 @ 1
