TE Connectivity / AMP 770264-1

mpn770264-1
brandname: TE Connectivity (TE)
manufacturername: TE Connectivity (TE)

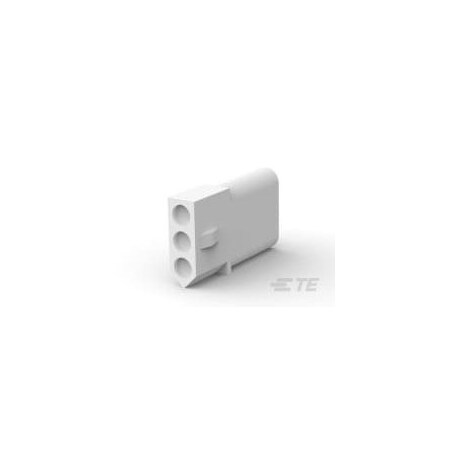

TE Connectivity / AMP Brand 770264-1 Connector Discrete Wire Housing

zoom

Brand: TE Connectivity / AMP
PartNumber: 770264-1
PackageQuantity: 1
Manufacturer: TE Connectivity / AMP Brand
Label: TE Connectivity / AMP Brand

Attributes

Key	Value
Agency/Standard	CSA, UL
Agency/Standard Number	E28476
Application	Power, Signal
Base Product Number	770264
Category	Connectors, Interconnec.
Centerline (Pitch)&thin.	5.03?mm?[?.198?in?]
Circuit Application	Power & Signal
Color	Natural
Connector & Contact Ter.	Wire & Cable
Connector Mounting Type	Cable Mount
Connector System	Wire-to-Wire
Connector Terminates To	Wire & Cable
Connector Type	Receptacle
Contact Layout	Inline
Contact Retention	Without
Contact Termination	Crimp
Contact Type	Male or Female, Socket
CSA File Number	LR7189
CSA Rating	Certified
Fastening Type	Locking Ramp
Features	-
Flammability Rating	UL 94 V-2
For Use With	Plug Housing
Glow Wire Rating	Standard Part - Not Glo.
Height	22.1, 22.1 mm
Hole Center to Center	5.03 mm
Housing Color	Natural
Housing Material	Nylon 6/6
Housing Type	Receptacle
Item	Housing
Length	28.58, 28.58 mm
Material	Nylon
Max. Temp.	105?C
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Contacts	3
Number of Positions	3
Number of Rows	1
Number of Signal Positi.	3
Operating Temperature R.	-55 ? 105??C?[?-67 ? 22.
Operating Voltage	250
Package	Bulk
Package Quantity	1
Packaging Method	Package
Packaging Quantity	1
Panel Mount Feature	Without
Part Status	Active
Pitch	0.198" (5.03mm)
Product Type	Housing
Row Spacing	-
Sealable	No
Series	Commercial .093" Pin an.
Standards	CSA Certified; UL E2847.
Terminal Type	Crimp
Termination Method to W.	Crimp
UL Flammability Rating	UL 94V-2
UL Rating	Recognized
Width	6.1 mm, 6.1

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	1151796	0.19814	6000	509		TE Connectivity AMP Connectors		0.19814 @ 6000
	Newark	16H5744	0.205	6000	487		AMP - TE CONNECTIVITY		0.205 @ 6000
	Zoro	G001039990	1920.0	1	487		Te Connectivity		1920.0 @ 1
