TEMPCO TTW00180

B0078ROBVM

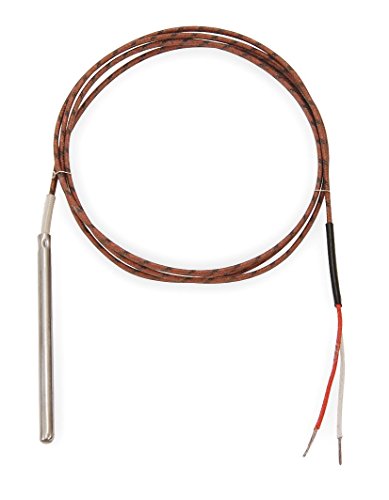

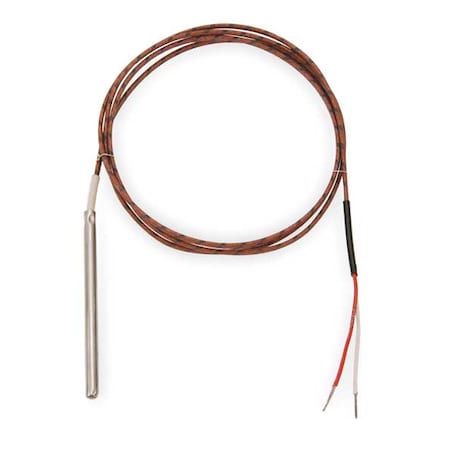

Thermocouple Probe, Type K, Length 3 In

Thermocouple Probe, Type K, Length 3 Inzoom

Attributes

Key Value
Accuracy+/-2.2 Degrees C or +/.
BrandTempco
Cable Length3 ft
Cable MaterialFiberglass
Connector TypeSplit Leads
Construction3/16 in dia Can Be Used.
Current Stock42
Error Accuracy (%)(Over 293 Degrees C) +/.
Error Accuracy (Deg. C)+/-2.2 Below 293 Degrees
For AirYes
For ApplicationAppliances, Duct, Food .
For GasesYes
For Liquids and GelsYes
For SolidsYes
For SurfacesNo
Grounded / UngroundedGrounded
Includes ThermowellNo
InsulationFiberglass
International ShippingNo
ItemThermocouple Probe
Junction TypeGrounded
Lead Length3 ft
Material304 Stainless steel
Max. Pressure (PSI)1,000 psi
Maximum Temperature ?C1,260 Degrees C
Maximum Temperature ?F2,300 Degrees F
Maximum Temperature C1,260 Degrees C
Maximum Wire Gauge0.25 mm
Minimum Temperature ?C0 Degrees C
Minimum Temperature ?F32 Degrees F
Minimum Temperature F32 Degrees F
Mounting TypeProbe Insertion
MpnTTW00180
Plug or Connector TypeBare Wire
Probe BendStraight
Probe Diameter0.188 in
Probe Length3 in
Probe Sheath Material304 Stainless steel
Probe Size3/16 in x 3 in
Probe Tip Diameter0.188 in
Sensor TypeThermocouple
Sheath Size (In.)0.188 in
SKUZO-G1150791
SubCategoryTest Instruments
Temp. Limit (Deg. F)900
Temperature Range32 Degrees to 2,300 De.
Thermocouple Element20 AWG
Thermocouple TypeType K
Tip StyleRounded

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG3AAA222.405631221In StockTEMPCO0.0622.40563122 @ 1
Grainger3AAA222.641650TEMPCO22.64 @ 1
thumbzoomsustainablesupply.comC119233427.051In StockTempco0.0627.05 @ 1
thumbzoomRaptor SuppliesAC8GUR32.77187551In StockTEMPCO32.7718755 @ 1
thumbzoomZoroG115079141.631205Tempco0.0641.63 @ 1
thumbzoomsimsupply.comZO-G115079154.15142Tempco54.15 @ 1
