Weg Electric 04036ET3E286JM-W22

B07BQDRQNF

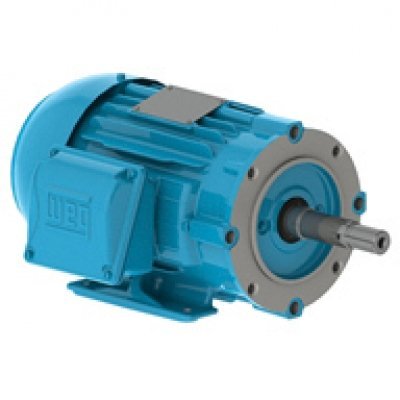

Weg Electric 04036ET3E286JM-W22, 40HP, 3600 RPM, 3PH, 208V,230V,460V, 284/6JM Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Weg Electric 04036ET3E286JM-W22, 40HP, 3600 RPM, 3PH, 208V,230V,460V, 284/6JM Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating101 to 91.6/45.8 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.13.8 in
Bolt Circle Dia.11 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 40HP 2P 284/6JM W.
Dimensions28.7 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %92.4 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight469.00
Family SeriesWEG Electric Motors
FL Amps45.8
FL Efficiency92.4
FlangesC-Face Flange
Frame284/6JM, 286JM
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps101.0-91.6/45.8
Full Load Amps @ 50Hz101.0-91.6/45.8
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height13 13/16 in
Hertz60
Horsepower40 hp
HP40
Hz60
IncludesBase
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number04036ET3E286JM-W22
Length Less Shaft23 7/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number04036ET3E286JM-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:04036ET3E286JM-W22
Model13523072
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1
Motor Shaft DesignJM Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3,535
NEMA DesignA
NEMA Frame284/6JM
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency92.4 %
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating40 hp
Overall Length28 11/16 in
Part Number04036ET3E286JM-W22
Phase3, 3 ph, Three
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces04036EP3E286JM-W22
RotationCW/CCW
RPM3600, 3400 - 3600, 3,60.
RPM Range3,001-3,600
Service Factor1
Shaft Dia.1 1/4 in
Shaft Length5 1/4 in
Shaft MaterialCarbon Steel
Shaft Size1-1/4 in Dia x 5-1/4 in.
Speed3535 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909322340265
Usable @ 200VNo
Usable @ 208VYes
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460*
Weight472.970000, 437 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com04036ET3E286JM-W222874.01In StockWEG443.02874.0 @ 1
thumbzoomWalker Industrial04036ET3E286JM-W224026.01In Stock17WEG4026.0 @ 1
thumbzoommotorsandcontrol.com04036ET3E286JM-W224026.01In StockWEG Electric469.04026.0 @ 1
thumbzoomGalco04036ET3E286JM-W22-WEG4408.921In StockWEG Electric4408.92 @ 1
thumbzoomindustrialrefrigerationparts.com04036ET3E286JM-W224464.951In StockWEG472.974464.95 @ 1
kscdirect.comWEG 04036ET3E286JM-W224569.211In StockWEG ELECTRIC CORP4569.21 @ 1
thumbzoomDealers Electric04036ET3E286JM-W224901.031In StockWeg593.04901.03 @ 1
thumbzoomZoroG75984314967.941In Stock15Weg450.04967.94 @ 1
cbtcompany.com04036ET3E286JM-W225231.421In StockWEG5231.42 @ 1
motionindustries.com069762596885.521In StockWEG Electric Corporation6885.52 @ 1
