Baldor EM3771T

B007ZQPAA2

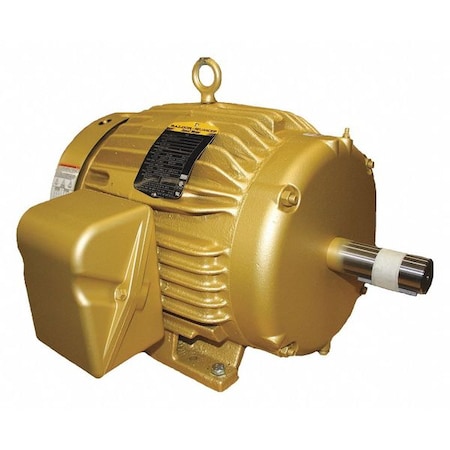

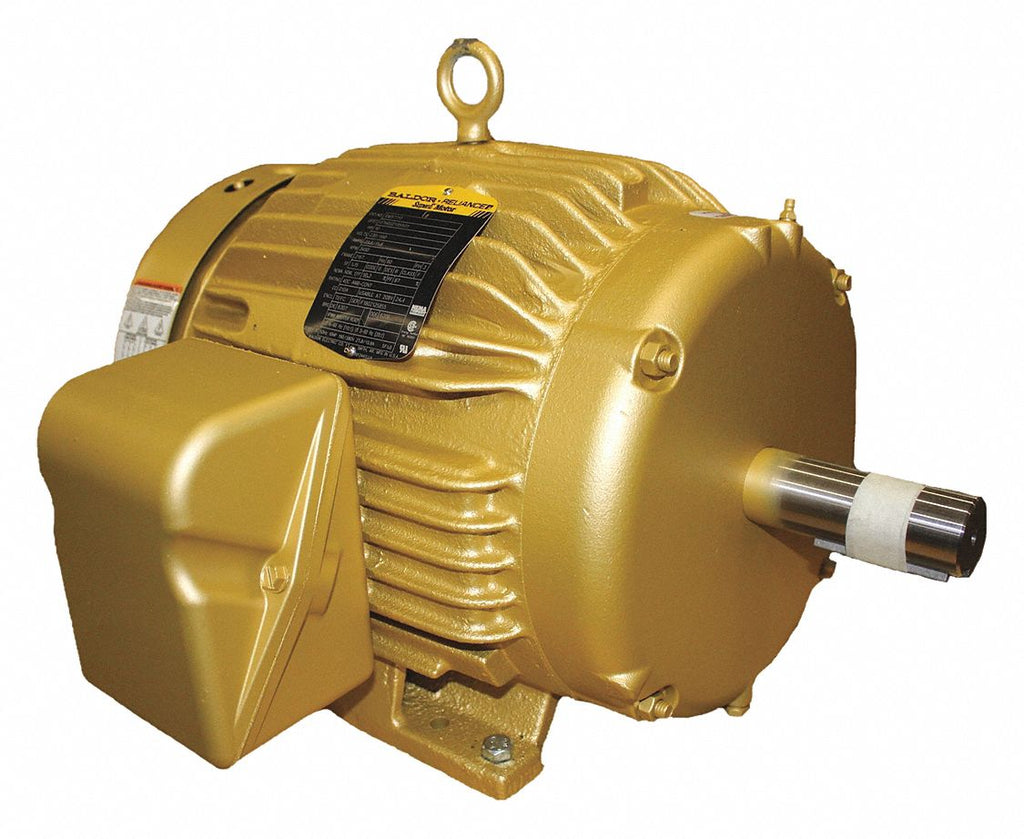

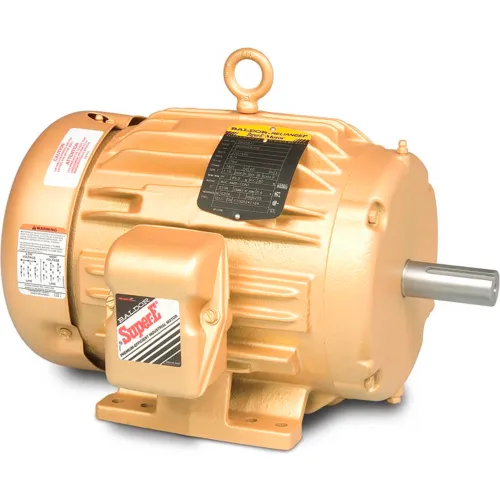

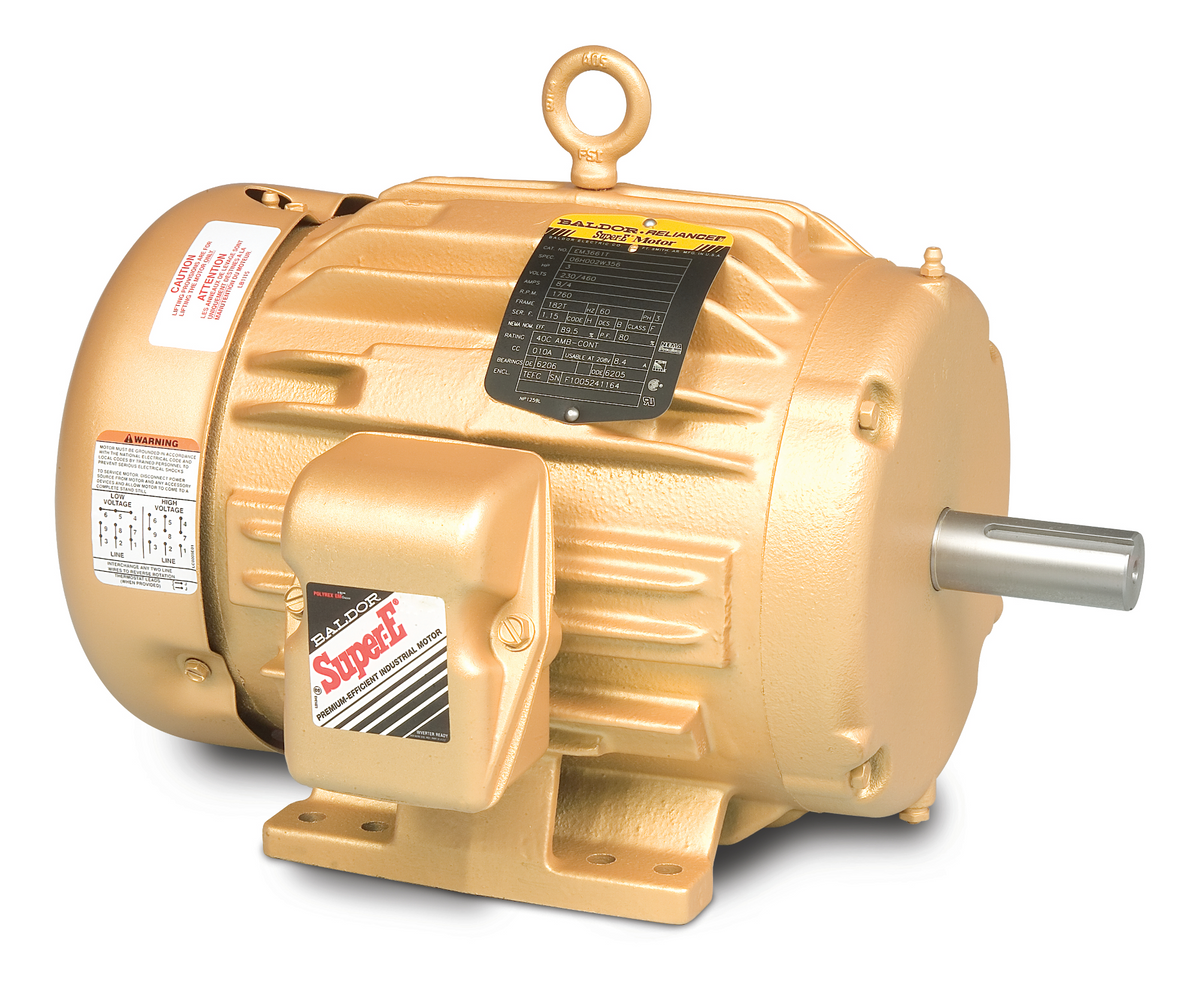

Baldor EM3771T General Purpose AC Motor, 3 Phase, 215T Frame, TEFC Enclosure, 10Hp Output, 3490rpm, 60Hz, 230/460V Voltage

Baldor EM3771T General Purpose AC Motor, 3 Phase, 215T Frame, TEFC Enclosure, 10Hp Output, 3490rpm, 60Hz, 230/460V Voltagezoom

Attributes

Key Value
Amps25.2/23.4/11.7
ApplicationGeneral Purpose
Baldor Type0729M
BaseRG
Bearing TypeBall
BearingsBall
Catalog NumberEM3771T
CC NumberCC031A
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
DE Bearing6307
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency90.2%
Efficiency %90.2 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight182.00
Family SeriesBaldor Motors, M Series
FL Amps23.6/11.8
FL Efficiency90.2
Frame215T
Frame MaterialCast Iron
Frame Size215T
Full Load Amps23.6/11.8, 22.4/11.2
Full Load Efficiency91.7
Green Certification or .NEMA Premium(R) Rated
Gross Weight182 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Ins. ClassF
Insulation ClassF
Inverter DutyYes, No
Inverter RatedYes
ItemGeneral Purpose Motor
Item NumberEM3771T
Length Less Shaft15 1/16 in
Locked Rotor CodeL
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #07H002T513G1
Manufacturer Part NumberEM3771T
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingF1, Rigid, Foot Mount
Mounting TypeFoot Mount, Rigid
Nameplate RPM3,490
NEMA DesignB
NEMA Design CodeB
NEMA Frame215T
Net Weight182 lbs
No. of Speeds1
Nominal Efficiency90.2 %
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing6206
Overall Length18 7/16 in, 18.45 ", 18.
Overload ProtectionNone
Part NumberEM3771T
Phase3, Three, 3 Phase
Power Factor92
Product SeriesM
Product TypeGeneral Purpose, Three .
Rating40C AMB-CONT
RotationReversible
RPM3485, 3400 - 3600, 3490.
RPM Group3001-3600
RPM Range3,001-3,600
SeriesSuper-E Series
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Diameter1.375"
Shaft Length3 3/8 in
Ship Weight182 lbs.
Specification Number07H002W723
Speed (RPM)3490
StandardsCSA, CSA EEV, UR
UPC Code781568102817
Usable @ 200VNo
Usable @ 208VNo
Usable at 208 Volts24.4
Voltage230V, 460V, 230/460V AC.
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight185 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comEM3771T1288.321In StockBaldor1288.32 @ 1
thumbzoomemotorpro.comEM3771T1713.681In StockBaldor182.01713.68 @ 1
factorysupplyoutlet.comST47EW1877.221In StockBaldor-Reliance1877.22 @ 1
thumbzoomGalcoEM3771T-BLDR1883.631In StockBaldor182.01883.63 @ 1
thumbzoomgalesburgelectric.comEM3771T1896.181In StockBaldor1896.18 @ 1
thumbzoomWalker IndustrialEM3771T1896.191In StockBaldor1896.19 @ 1
thumbzoomGlobal IndustrialWBB3897021936.01In StockBaldor-Reliance1936.0 @ 1
motorsandcontrol.comEM3771T1975.191In StockBaldor Reliance182.01975.19 @ 1
thumbzoomZoroG86285322128.01In Stock26Baldor-Reliance161.02128.0 @ 1
thumbzoompumpproducts.comEM3771T2244.01In StockBaldor2244.0 @ 1
us.rs-online.com719442612370.2211Baldor-Reliance2370.22 @ 1
kirbyrisk.com32885672486.261In StockBaldor2486.26 @ 1
motionindustries.com005425793003.491In StockBaldor-Reliance3003.49 @ 1
thumbzoomsustainablesupply.comC15561843266.221In StockBaldor Electric161.03266.22 @ 1
thumbzoomRaptor SuppliesAJ6UFQ3363.8492161In StockBALDOR MOTOR3363.849216 @ 1
