DAYTONAUDIO 285-115

B00BYE9098

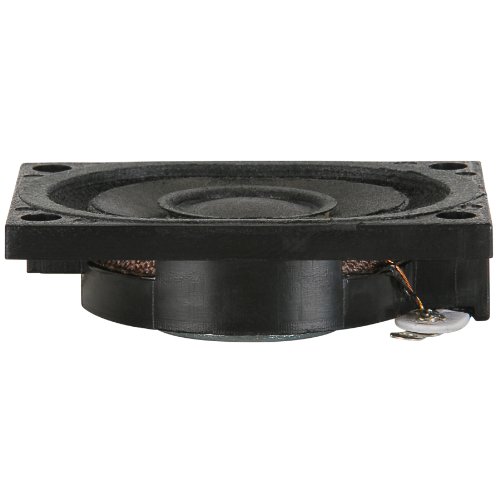

CE40-28P-8 1-1/2" x 1-1/8" Mini Speaker 8 Ohm

CE40-28P-8 1-1/2" x 1-1/8" Mini Speaker 8 Ohmzoom

Attributes

Key Value
# Mounting Holes4
Baffle Cutout Diameter0.97" x 1.32"
BL Product (BL)1.03T?m
BrandDayton Audio
Cone MaterialPaper
DC Resistance (Re)7?
Depth0.45"
Electromagnetic Q (Qes)9.87
Frequency Response550 to 15,000Hz
Impedance8?
Magnet MaterialNeodymium
Maximum Linear Excursio.0.1mm
Mechanical Compliance o.0.18mm/N
Mechanical Q (Qms)3.96
ModelCE40-28P-8
Nominal Diameter1 x 2"
Overall Outside Diameter1.13" x 1.57"
Part Number285-115
Power Handling (MAX)4 Watts
Power Handling (RMS)2 Watts
Resonant Frequency (Fs)608Hz
Sensitivity75dB 2.83V/1m
Surface Area of Cone (S.5.28cm?
Surround MaterialCloth
Total Q (Qts)2.83
Unit of MeasureEach
UPC848791000362
Voice Coil Diameter0.5"
Voice Coil Inductance (.0.26mH
Weight0.05

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomparts-express.com285-1154.49122Dayton Audio0.054.49 @ 1
