Molex / Waldom 90152-2110

B07QM9WYGP

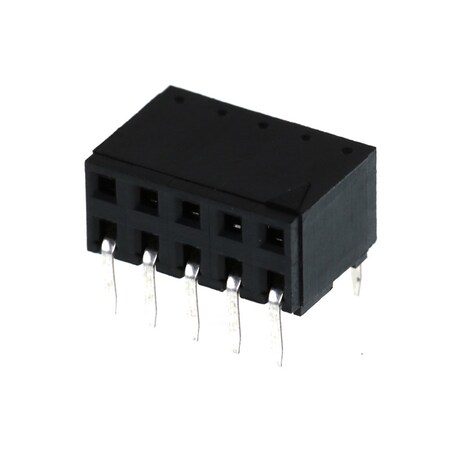

90152-2110, Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole C-Grid III Tube (25 Items)

90152-2110, Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole C-Grid III Tube (25 Items)zoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number90152
CategoryConnectors, Interconnec.
ColorBlack
Connectorsocket
Connector pinout layout2x5
Connector seriesC-Grid III
Connector TypeReceptacle
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.40.0?in (1.02?m)
Contact Finish Thicknes.40.0?in (1.02?m)
Contact Length - Post0.114" (2.90mm)
Contact MaterialPhosphor Bronze
Contact platingtinned
Contact Plating Thickne.1.016 ?m
Contact ShapeSquare
Contact TypeFemale Socket
Contacts pitch2.54mm
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN RCPT 10POS 0.1 TIN.
Detailed Description10 Position Receptacle .
Digi-Key Part NumberWM3631-ND
Electrical mountingTHT
Family NameC-Grid III
Fastening TypePush-Pull
Features-
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.230" (5.85mm)
Insulation MaterialPolyester, Glass Filled
Kind of connectorfemale
ManufacturerMolex
Manufacturer Product Nu.0901522110
Manufacturer Standard L.41 Weeks
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.-
Max. Temp.230?C
Max. Voltage350V
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits10
Number of Contacts10
Number of pins10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 105?C
PackageTube
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Plating MaterialTin
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Series90152 Series, C-Grid II.
Spatial orientationangled 90?
StandardsCSA Certified
StyleBoard to Board
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Type of connectorwire-board
Voltage Rating350V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEMX-90152-21101.3713272MOLEX1.37 @ 132
Onlinecomponents.com90152-21101.57172MOLEX / WALDOM1.57 @ 1
WaldomMOLEX 90152-21101.584472MOLEX1.58 @ 44
thumbzoomjensentools.com101984032.11110295Molex2.11 @ 1
HotendaH14206192.34172Molex2.34 @ 1
us.rs-online.com714664332.44172Molex Incorporated2.44 @ 1
Newark94M31093.18445367MOLEX3.18 @ 25
thumbzoomDigi-Key24051893.76172Molex3.76 @ 1
thumbzoomZoroG2088883116.6172Molex116.6 @ 1
