- mpnLCAX4-56-L
- brandname: Panduit
- manufacturername: Panduit

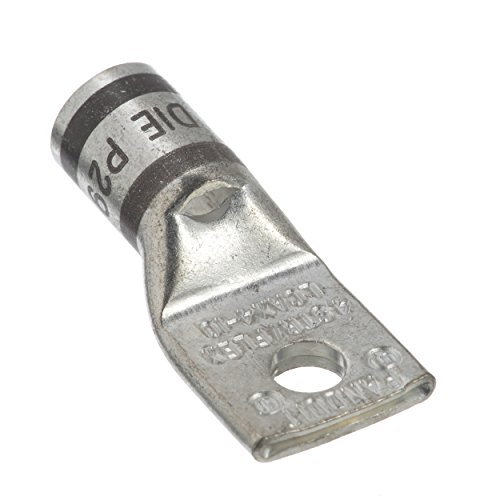

Panduit LCAX4-56-L Flex Conductor Lug, One Hole, Standard Barrel With Window, #4 AWG Code Conductor Size, #5/#4/#3 AWG Diesel Locomotive Size, #4 AWG Class G/H/I/K/M Conductor Size, 5/16" Stud Hole Size, Gray Color Code, 5/8" Wire Strip Length, 0.09" Tongue Thickness, 0.55" Tongue Width, 0.53" Neck Length, 1.47" Overall Length
- Brand: Panduit
- PartNumber: LCAX4-56-L
- Model: LCAX4-56-L
- Color: Gray
- Size: 5/16
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 4 |
| Angle | Straight |
| Approvals | CSA, UL |
| Base Product Number | LCAX4 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 4 AWG |
| Catalog Number | LCAX4-56-L |
| Category | Connectors, Interconnec. |
| Color | Gray |
| Color Code | Gray |
| Color Family | Gray |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper, Seamless Copper |
| Contact Plating | Electro-Tin |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 4 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.380" (9.65mm) |
| Diameter - Ring ID | 0.340" (8.64mm) |
| Die Type | P29 |
| Digi-Key Part Number | 298-11753-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.18 lbs |
| GTIN | 00074983434152 |
| Hole Size | 5?16 |
| Insulation | Non-Insulated |
| Insulation Type | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCAX4-56-L |
| Item Type | Copper Compression Conn. |
| Length | 1.47" |
| Length - Overall | 1.470" (37.34mm) |
| Lug Wire Size | 4 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCAX4-56-L |
| Manufacturer Product Nu. | LCAX4-56-L |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 3 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 5 AWG |
| Mounting | 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Overall Length | 1.47 " |
| Overall Width | 0.55 " |
| Package | Bulk |
| Package Quantity | 50 |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug LCAX Series, Pa. |
| Size | #4 AWG Class B, C, G, H. |
| Special Features | Standard Flex Barrel, C. |
| Strip Length | 5?8" |
| Stud Size | 5/16 ", 44697, 5/16 in |
| Stud/Tab Size | 5/16 Stud |
| Style | One-Hole |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.090" (2.29mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel, Crimp |
| Type | 1 Hole |
| UNSPSC | 39121405 |
| UPC | 074983434152 |
| UPC Code | 074983434152 |
| Volts AC | 600 |
| Width | 0.55" |
| Width - Outer Edges | 0.550" (13.97mm) |
| Wire Gauge | 4 AWG |
| Wire Size | 4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCAX4-56-L | 1.74 | 1 | 50 | | PANDUIT | | 1.74 @ 50 |
 | alldataresource.com | LCAX4-56-L | 2.67 | 1 | 50 | | Panduit | | 2.67 @ 50 |
| Onlinecomponents.com | LCAX4-56-L | 3.02 | 1 | 50 | | Panduit | | 3.02 @ 50 |
 | Digi-Key | 4564961 | 3.1656 | 1 | 448 | | Panduit Corp | | 3.1656 @ 50 |
 | Zoro | G0774142 | 3.52 | 3 | 50 | 58 | Panduit | 1.19 | 3.52 @ 50 |
 | Newark | 14AC0743 | 3.67 | 1 | 50 | | PANDUIT | | 3.67 @ 50 |
 | Platt.com | 0686847 | 4.11 | 1 | 50 | | Panduit | | 4.11 @ 50 |
 | Galco | LCAX4-56-L-PNDT | 4.34 | 50 | 50 | | Panduit | 1.18 | 4.34 @ 50 |
| Airline Hydraulics | PANDUIT LCAX4-56-L | 4.65 | 1 | 50 | | Panduit Corp | | 4.65 @ 50 |
 | crescentelectric.com | 115363 | 4.84 | 1 | 50 | | Panduit | | 4.84 @ 50 |
| us.rs-online.com | 70044046 | 152.75 | 1 | 50 | | Panduit | | 152.75 @ 50 |
 | gordonelectricsupply.com | LCAX4-56-L | 204.0 | 1 | 50 | 12 | PANDUIT | | 204.0 @ 50 |
 | turtle.com | PAN LCAX4-56-L | 455.07 | 1 | 50 | | Panduit | | 455.07 @ 50 |
| steinerelectric.com | 319729 | 455.44 | 1 | 50 | | Panduit | | 455.44 @ 50 |
| Graybar | 25104532 | 504.3248 | 1 | 50 | | Panduit | | 504.3248 @ 50 |
