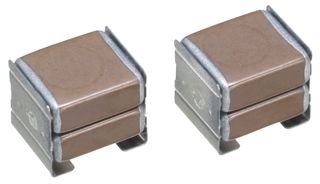

TDK CKG57NX5R1H226M500JH Multilayer Ceramic Capacitor, CKG Series, 22 ??F, ???? 20%, X5R, 50 V, 2220 [5750 Metric]
![TDK CKG57NX5R1H226M500JH Multilayer Ceramic Capacitor, CKG Series, 22 ??F, ???? 20%, X5R, 50 V, 2220 [5750 Metric]](https://m.media-amazon.com/images/I/31YyRd8KiPL._SL75_.jpg)
- Brand: TDK
- PartNumber: CKG57NX5R1H226M500JH
- Manufacturer: TDK
- Label: TDK
Attributes
| Key | Value |
|---|
| Alternate Part No. | 810-CKG57NX5R1H226M |
| Applications | SMPS Filtering, Bypass,. |
| Brand | TDK |
| Capacitance | 22 uF, 22 ?F, 22?F |
| Case - inch | 2220 |
| Case - mm | 5750 |
| Case Height | 5.5 mm |
| Case Length | 6.5 mm |
| Case Width | 5.5 mm |
| Category | Capacitors |
| Description | CAP CER 22UF 50V X5R SMD |
| Detailed Description | 22 ?F ?20% 50V Ceramic . |
| Dielectric | X5R |
| Digi-Key Part Number | 445-1655-2-ND - Tape & . |
| Failure Rate | - |
| Features | Low ESL (Stacked) |
| Height - Seated (Max) | - |
| Kind of capacitor | MLCC |
| Lead Spacing | - |
| Lead Style | J-Lead |
| Manufacturer | TDK, TDK Corporation |
| Manufacturer Part No. | CKG57NX5R1H226M500JH |
| Manufacturer Product Nu. | CKG57NX5R1H226M500JH |
| Manufacturer Standard L. | 44 Weeks |
| Maximum Operating Tempe. | + 85 C |
| Mfr | TDK Corporation |
| Minimum Operating Tempe. | - 55 C |
| Mounting | SMD |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55?C ~ 85?C |
| Operating temperature | -55...85?C |
| Operating Temperature R. | - 55 C to + 85 C |
| Operating voltage | 50V |
| Package | Tape & Reel (TR) |
| Package / Case | Stacked SMD, 2 J-Lead |
| Packaging | Reel |
| Part # Aliases | CKG57NX5R1H226M |
| Product | Stacked MLCCs |
| Product Category | Multilayer Ceramic Capa. |
| Product Status | Active |
| Ratings | - |
| Series | CKG, MEGACAP, CKG |
| Size / Dimension | 0.236" L x 0.197" W (6.. |
| Temperature Coefficient | X5R |
| Temperature Coefficient. | +/- 15 % |
| Termination Style | SMD/SMT |
| Thickness (Max) | 0.217" (5.50mm) |
| Tolerance | ?20%, 20 % |
| Type | Mega Cap Multilayer Cer. |
| Type of capacitor | ceramic |
| Voltage - Rated | 50V |
| Voltage Rating DC | 50 V |
