TE Connectivity KUP-11A55-24

B00DDDIWEW

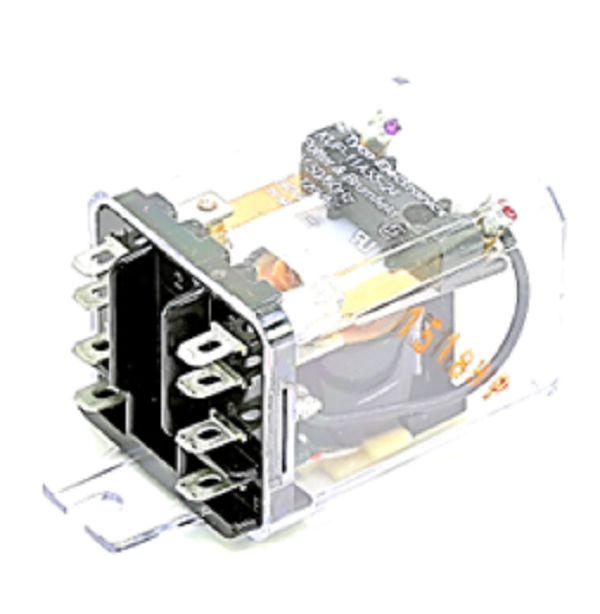

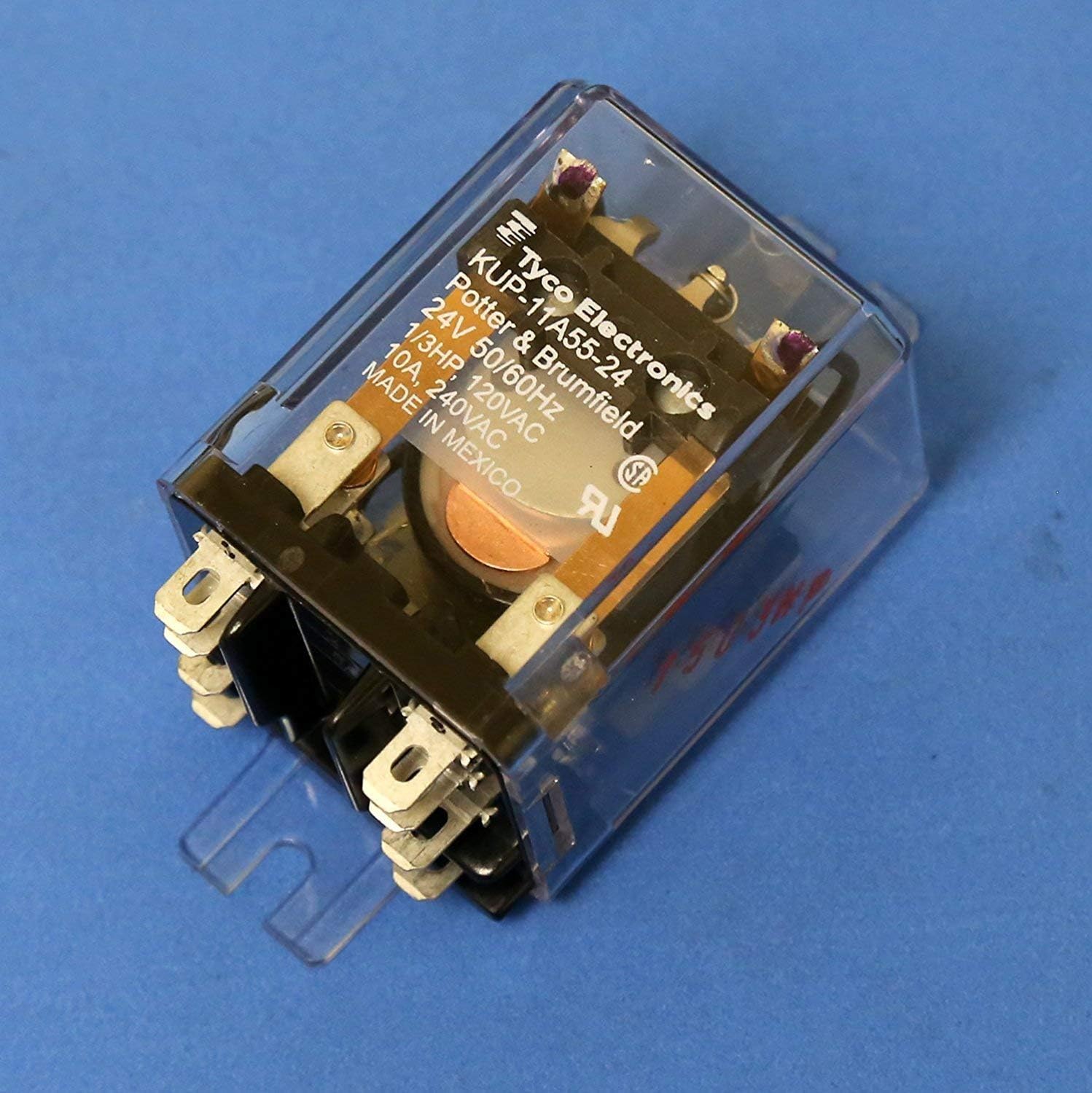

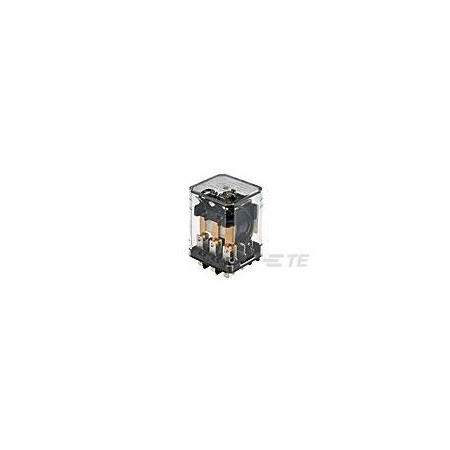

T-E Connectivity KUP-11A55-24 (1 pc) INDUSTRIAL RELAYSGENERAL PURPOSE

T-E Connectivity KUP-11A55-24 (1 pc) INDUSTRIAL RELAYSGENERAL PURPOSEzoom

Attributes

Key Value
Alternate Mfr Part Numb.3-1393117-0
Amperage Rating10A
ASINB00HPLUYFI
Base Product NumberKUP-11
Batteries Included?No
Batteries Required?No
carry current10 a
CategoryRelays
Coil Current84 mA
Coil InsulationClass B
Coil Power Rating AC2.8 VA
Coil Power Rating Class2 to 3 VA
Coil Resistance85 Ohms, 85 ?
Coil Special FeaturesUL Coil Insulation Clas.
Coil TypeNon Latching
Coil Voltage24 VAC, 24 V ac, 24VAC
coil voltage ac24 v
Coil Voltage Rating24 VAC
Contact Arrangement2 Form C (CO)
Contact Current Class5 to 10 A, 16 A
Contact Current Rating10 a
Contact FormDPDT, DPDT (2 Form C)
Contact Limiting Breaki.10A
Contact Limiting Short-.10A
Contact MaterialSilver Cadmium Oxide (A.
Contact Number of Poles2
Contact OperationDPDT
Contact Rating (Current)10 a
Contact Voltage Rating300 VAC
Control Voltage24
Country of OriginMX - Mexico
Current Rating10 a
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberPB222-ND
Dimensions1.532 L x 1.406 W x 1.9.
ECCNEAR99
Environmental Ambient T.55?C
Environmental Category .RTI
Features-
FunctionGeneral Purpose
Height Class (Mechanica.30 to 40 mm
Insulation Initial Diel.2200 Vrms
Insulation Initial Diel.1200 Vrms
Item model numberKUP-11A55-24
Item Package Quantity1
item per pack1
Length Class (Mechanica.40 to 50 mm
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.KUP-11A55-24
Manufacturer Standard L.19 Weeks
MfrTE Connectivity Potter .
Mounting TypePanel Mount, Chassis Mo.
Must Operate Voltage20.4 VAC
Must Release Voltage-
No. of Pins9
Number of Pins9 Pin
Operate Time15 ms
Operating Temperature-45?C ~ 55?C
Operating Temperature R.-45 to 55?C
Packagebulk
packagebulk
Part NumberKUP-11A55-24
Power Relay TypeIndustrial Panel Plug-In
Primary TypePower Relays
Product HeaderKU Series Basic Enclose.
Product Height1.405 in
Product Length1.906 in
Product StatusActive
Product Width1.531 in
Relay TypeElectromechanical, Gene.
Release Time10 ms
Seal Rating-
SeriesKUP Series, KUP
StandardsUL ; CSA
switch functionDPDT
Switching Voltage240VAC - Max
Terminal TypeQuick Connect, Solder
TerminationQC Tabs
Termination StyleQuick Connect - 0.187" .
Voltage Rating300 V
Width Class (Mechanical)30 to 40 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager Electronics3-1393117-012.091278TE Connectivity12.09 @ 1
thumbzoomamericanmicrosemi.comKUP-11A55-2413.41In StockPOTTER & BRUMFIELD13.4 @ 1
thumbzoomTMEKUP-11A55-2415.831In StockTE Connectivity15.83 @ 1
thumbzoomNewark17M025417.081104POTTER&BRUMFIELD - TE CONNECTIVITY17.08 @ 1
Graybar8906893918.55841In StockTE Connectivity18.5584 @ 1
WaldomTE CONNECTIVITY POTTER-BRUMFIELD KUP-11A55-2418.68313TE CONNECTIVITY / POTTER-BRUMFIELD18.68 @ 3
AmazonTPB00HPLUYFI19.31In Stock2TE CONNECTIVITY / POTTER & BRUMFIELD19.3 @ 1
thumbzoomAmazonB00HPLUYFI19.461In StockTE CONNECTIVITY / POTTER & BRUMFIELD0.219.46 @ 1
thumbzoomTedss203400007119.991In StockTE CONNECTIVITY POTTER & BRUMFIELD19.99 @ 1
Onlinecomponents.comKUP-11A55-2420.3922108TE Connectivity20.39 @ 2
us.rs-online.com7019923121.981884TE Connectivity21.98 @ 1
thumbzoomDigi-Key21004226.9041In StockTE Connectivity Potter & Brumfield Relays26.904 @ 1
thumbzoomgsistore.comKUP-11A55-2432.4611TE Connectivity32.46 @ 1
thumbzoomVoomi SupplyKUP-11A55-2436.211In StockTE Connectivity36.21 @ 1
thumbzoommidwestapplianceparts.comKUP-11A55-24-TV-P43.711TE Connectivity43.7 @ 1
thumbzoomZoroG50097548581.753In StockTe Connectivity81.75 @ 3
thumbzoomebay.com_welderguy2011KUP-11A55-24113.941In StockPOTTER&BRUMFIELD - TE CONNECTIVITY113.94 @ 1
thumbzoomebay.com_northeasterntradingKUP-11A55-24118.971In StockPOTTER&BRUMFIELD - TE CONNECTIVITY118.97 @ 1
thumbzoomebay.com_tasksurplusKUP-11A55-24119.991In StockPOTTER&BRUMFIELD - TE CONNECTIVITY119.99 @ 1
thumbzoomebay.com_plccenterKUP-11A55-24125.991In StockTE Connectivity125.99 @ 1
thumbzoomebay.com_buccaneerbarqueKUP-11A55-24143.131In StockPOTTER&BRUMFIELD - TE CONNECTIVITY143.13 @ 1
thumbzoomebay.com_equipment-proKUP-11A55-24149.991In StockPOTTER&BRUMFIELD - TE CONNECTIVITY149.99 @ 1
thumbzoomebay.com_plctoolboxsupplyKUP-11A55-24153.991In StockPOTTER&BRUMFIELD - TE CONNECTIVITY153.99 @ 1
thumbzoomebay.com_jugu_1532KUP-11A55-24169.991In StockPOTTER&BRUMFIELD - TE CONNECTIVITY169.99 @ 1
