TE Connectivity 1776119-4

B083L7WMNC

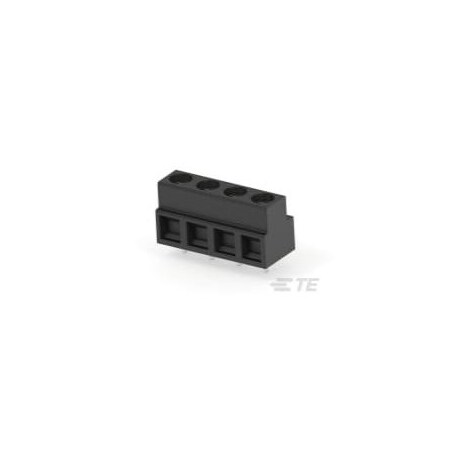

1776119-4, Terminal Block Assembly, PCB Mount, Stacking Side Wire Entry, 5.08mm Pitch (25 Items)

1776119-4, Terminal Block Assembly, PCB Mount, Stacking Side Wire Entry, 5.08mm Pitch (25 Items)zoom

Attributes

Key Value
Base Product Number1776119
Block TypePCB Mount
CategoryConnectors, Interconnec.
Centerline (Pitch)5.08?mm?[?.2?in?]
Circuit ApplicationPower & Signal
Clamp Material - PlatingBrass - Nickel Plated
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleHeader
Connector SystemWire-to-Board
Contact Base MaterialBrass
Contact Current Rating .10
Contact Material - Plat.Brass - Tin Plated
Country of Origin (subj.Italy
Current13.5 A
Current Rating (Max)10
DescriptionTERM BLK 4P SIDE ENT 5..
Detailed Description4 Position Wire to Boar.
Digi-Key Part NumberA97986-ND
Features-
Housing MaterialPolyamide (PA), Nylon
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1776119-4
Manufacturer Standard L.42 Weeks
Mating OrientationHorizontal with Board
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Levels1
Number of Positions4
Number of Rows1
Operating Temperature-
Operating Temperature R.-40 ? 105??C?[?-40 ? 22.
PackageBulk
Pitch0.200" (5.08mm)
Positions Per Level4
Product StatusActive
Screw Material - PlatingBrass - Nickel Plated
Screw ThreadM3
SeriesBuchanan
Torque - Screw0.68 Nm (6 Lb-In)
Voltage300 V, 300
Wire Entry AngleSide
Wire Gauge16-30 AWG
Wire Size30 ? 16, .05 ? 1.4
Wire TerminationScrew - Rising Cage Cla.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark21R55751.01120099TE CONNECTIVITY1.01 @ 1000
Onlinecomponents.com1776119-41.121160TE Connectivity / AMP Brand1.12 @ 1
thumbzoomDigi-Key18268491.51367TE Connectivity AMP Connectors1.5 @ 1
HotendaH16174492.071637TE Connectivity AMP Connectors2.07 @ 1
TE Connectivity1776119-42.09711318TE Connectivity (TE)2.0971 @ 1
thumbzoomZoroG8009300161044.060099100Te Connectivity1044.0 @ 600
