Vishay 1N5258B-TR

mpn1N5258B-TR
brandname: Vishay Semiconductor/Diodes Division
manufacturername: Vishay Semiconductor/Diodes Division

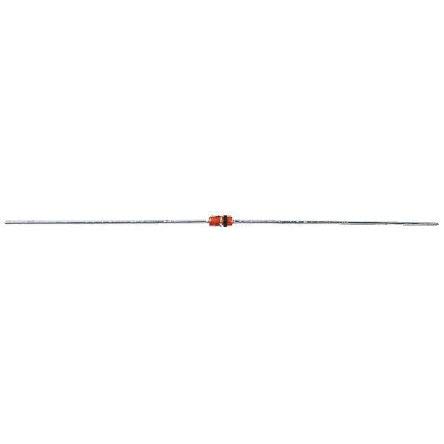

Vishay 1N5258B-TR, Zener Diode Single 36V 5% 70Ohm 500mW Automotive 2-Pin DO-35 T/R (250 Items)

Vishay 1N5258B-TR, Zener Diode Single 36V 5% 70Ohm 500mW Automotive 2-Pin DO-35 T/R (250 Items)

zoom

Brand: Vishay
PartNumber: 1N5258B-TR
Model: 1N5258B-TR
PackageQuantity: 1
Manufacturer: Vishay
Label: Vishay

Attributes

Key	Value
Base Product Number	1N5258
Category	Discrete Semiconductor .
Configuration	Single
Current - Reverse Leaka.	100 nA @ 27 V
Description	DIODE ZENER 36V 500MW D.
Detailed Description	Zener Diode 36 V 500 mW.
Diameter	1.7 mm
Digi-Key Part Number	1N5258BGITR-ND - Tape &.
Dimensions	1.7 Dia. x 3.9 L mm
Forward Current	200 mA
Forward Voltage	1.1 V
Impedance	70 ?
Impedance (Max) (Zzt)	70 Ohms
Junction to Ambient The.	300 K/W
Length	0.153 in
Manufacturer	Vishay General Semicond.
Manufacturer Product Nu.	1N5258B-TR
Manufacturer Standard L.	14 Weeks
Maximum Junction Temper.	175 ?C
Maximum Operating Tempe.	+175 ?C
Mfr	Vishay General Semicond.
Mounting Type	Through Hole
Number of Pins	2
Operating Temperature	175?C, -65 to 175 ?C
Package	Tape & Reel (TR)
Package / Case	DO-204AH, DO-35, Axial
Package Type	DO-35
Power - Max	500 mW
Power Dissipation	500 mW
Primary Type	Zener
Product Header	Small Signal Zener Diode
Product Status	Active
Reverse Current	3.4 mA
Reverse Voltage	36 V
Series	1N5258 Series, -
Supplier Device Package	DO-35 (DO-204AH)
Switching Speed	Standard
Temperature Operating R.	Maximum of +175 ?C
Test Current	3.4 ?A
Tolerance	?5%
Type	Small Signal
Typical Voltage Tempera.	0.093 %/K
Voltage - Forward (Vf) .	1.1 V @ 200 mA
Voltage - Zener (Nom) (.	36 V
Zener Current	3.4 mA
Zener Type	Silicon Planar, Small S.
Zener Voltage	36 V
Zener Voltage Tolerance	+/-5 %

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	159-6371	0.0084	1	250		Vishay		0.0084 @ 250
	us.rs-online.com	70061650	0.02185	30000	250		Vishay / Small Signal & Opto Products (SSP)		0.02185 @ 30000
	Hotenda	H1852674	0.024	1	250		Vishay Semiconductor/Diodes Division		0.024 @ 250
	Newark	33C2892	0.026	30000	250		VISHAY		0.026 @ 30000
	Arrow	1N5258B-TR	0.058	1	15171		Vishay		0.058 @ 250
	Mouser	78-1N5258B	0.094	1	4463		Vishay		0.094 @ 250
	Digi-Key	4810521	0.1212	1	27746		Vishay General Semiconductor - Diodes Division		0.1212 @ 250
