Edison/Bussmann ECSR1

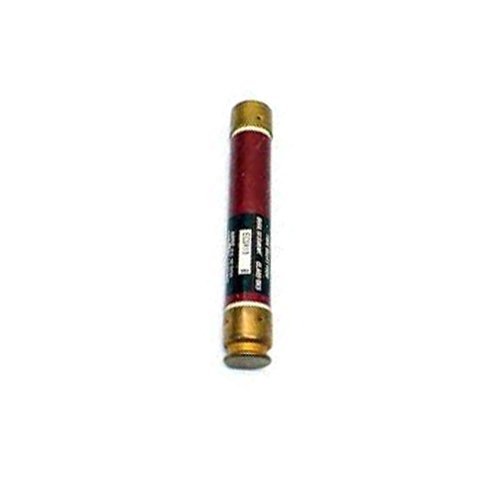

Bussmann ECSR1, 1 Amp 600V Cartridge Fusezoom

Bussmann ECSR1, 1 Amp 600V Cartridge Fuse

B00O3OFJFK

Attributes

Key Value
Additional InformationApplication Branch and Feeder Circuit, AC Drive, Loadcenter, Panel Board and Switch Board, Non-Inductive Load, General Purpose, Lighting and Heating
Alarm ContactNo
Amperage Rating:1 A
ApplicationsElectrical, Industrial
ApprovalUL, CSA C22.2, CE
Approval AgencyCE, CSA, UL
ApprovalsCE, CSA, UL
BrandEDISON FUSE, INC.
Breaking Capacity @ Rated Voltage200kA
Carton1
CategoryCircuit Protection, Cartridge Fuses
Category DescriptionFuses & Fuse Accessories
CharacteristicTime Delay
Characteristics10 SEC TIME DELAY (AT 500 PERCENT RATED LOAD), DUAL ELEMENT
ClassRK5
Class:RK-5
ClassificationFuses & Fuse Accessories
Commodity DescriptionDUAL ELEMENT FUSES
Country of OriginMX
Current Rating1 A, 1 AMPERE
Current Rating (Amps)1A
DescriptionFUSE CARTRIDGE 1A 600VAC, 1A 600V Class RK5 Time Delay CL Fuse
Detailed Description1A 600 VAC Fuse Cartridge Requires Holder
Diameter0.81 INCH
Digi-Key Part NumberECSR1-ND
Dimensions:7.8800 IN X 0.8100 IN X 1.6100 IN
extra long descriptionCLASS RK5 TYPE; 5 INCH; UL, CSA C22.2, CE APPROVAL; 600 VAC VOLTAGE RATING; 0.81 INCH DIAMETER; 200 KILOAMPERE (SYMMETRICAL) INTERRUPTING RATING; 1 AMPERE CURRENT RATING; FERRULE TERMINAL TYPE; 10.
Family SeriesBussmann Fuses, ECSR Series
Features-
Fuse TypeCartridge
Gross Weight0.0091 lbs
GTIN00782634508083
Interrupt Rating200 kA @ 600 V
Interrupt Rating:200 kAIC
Interrupting Rating200 KILOAMPERE (SYMMETRICAL)
Item NumberECSR1
Length5 INCH
Long DescriptionPOWER FUSE, CLASS RK5 TYPE; 5 INCH; UL, CSA C22.2, CE APPROVAL; 600 VAC VOLTAGE RATING; 0.81 INCH DIAMETER; 200 KILOAMPERE (SYMMETRICAL) INTERRUPTING RATING; 1 AMPERE CURRENT RATING; FERRULE TERMINAL.
ManufacturerEaton - Bussmann Electrical Division, Cooper Bussmann, Bussmann
Manufacturer Part NumberECSR1
Manufacturer Product NumberECSR1
Manufacturer Standard Lead Time15 Weeks
Manufacturer StatusNon-Stock
Manufacturers Part NumberECSR1
MfrEaton - Bussmann Electrical Division
ModelECSR
Mounting TypeRequires Holder
Net Weight0 lbs
Operating Temperature-
PackageBulk, 10
Package / CaseCartridge, Non-Standard
Package TypeCartridge
Product SeriesECSR
Product StatusActive
Product TypePower Fuse
Response TimeSlow Blow
RoHSNo
SeriesECSR
Size / Dimension0.810" Dia x 5.00" L (20.57mm x 127.00mm)
Standard:CE Marked
Sub Brand:Edison
Terminal TypeFerrule
Trip IndicatorNo
TypeCLASS RK5, Class RK5 Fuses
Type:Fuse
UNSPSC39121604 - Time delay fuses, 39121606
UPC782634508083
Voltage (AC)600 VAC
Voltage Rating600 VAC
Voltage Rating - AC600 VAC
Voltage Rating:600 V
Weight per each0.15

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Dale-ElectricECSR119.821In StockCooper Bussmann19.82 @ 1
thumbzoomAI ConsolidatedECSR1-BUSSMANN25.01In StockBussmann Eaton Cooper Fuses0.14525.0 @ 1
WaldomEATON ECSR127.31In StockEaton27.3 @ 1
thumbzoomElliott ElectricECSR129.561In StockEdison0.1529.56 @ 1
AmazonSCB00PZEX1BQ38.531In StockCooper Bussmann38.53 @ 1
thumbzoomWalker IndustrialECSR141.0910In Stock17Cooper Bussmann41.09 @ 10
thumbzoomGalcoECSR1-BUSS47.6410In StockBussmann0.009147.64 @ 10
thumbzoomDigi-Key543407159.75810In StockEaton - Bussmann Electrical Division59.758 @ 10
thumbzoomPlatt.com096216172.581In StockEaton/Bussmann Series72.58 @ 1
