ANALOG DEVICES LT3680EDD#PBF

mpnLT3680EDD#PBF
brandname: Analog Devices
manufacturername: Analog Devices

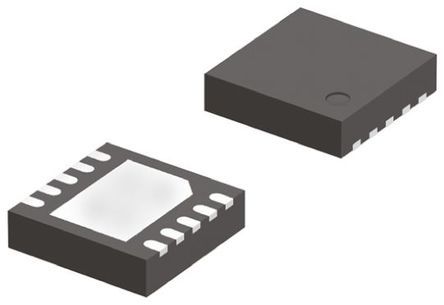

LT3680EDD#PBF, Conv DC-DC 3.6V to 36V Synchronous Step Down Single-Out 0.79V to 30V 3.5A Automotive 10-Pin DFN EP Tube (5 Items)

LT3680EDD#PBF, Conv DC-DC 3.6V to 36V Synchronous Step Down Single-Out 0.79V to 30V 3.5A Automotive 10-Pin DFN EP Tube (5 Items)

zoom

Brand: ANALOG DEVICES
PartNumber: LT3680EDD#PBF
Model: LT3680EDD#PBF
Manufacturer: Analog Devices
Label: Analog Devices

Attributes

Key	Value
Base Product Number	LT3680
Brand	Analog Devices
Case	DFN10
Category	Integrated Circuits (IC.
Converter Type	Step Down
Current - Output	3.5A
Description	IC REG BUCK ADJ 3.5A 10.
Detailed Description	Buck Switching Regulato.
Digi-Key Part Number	505-LT3680EDD#PBF-ND
Dimensions	Dimensions
Frequency	2.2...2.7MHz
Frequency - Switching	230kHz ~ 2.45MHz
Function	Step-Down
Height	0.7mm
Input voltage	3.6...36V DC
Kind of integrated circ.	DC/DC converter
Length	3mm
Line Regulation	0.01 %/V
Manufacturer	Analog Devices Inc., An.
Manufacturer Product Nu.	LT3680EDD#PBF
Manufacturer Standard L.	20 Weeks
Maximum Input Voltage	Maximum Input Voltage
Maximum Operating Tempe.	+125 ?C
Maximum Output Current	Maximum Output Current
Maximum Output Voltage	Maximum Output Voltage
Maximum Switching Frequ.	2.7 MHz
Mfr	Analog Devices Inc.
Minimum Input Voltage	3.6 V
Minimum Operating Tempe.	-40 ?C
Minimum Output Voltage	Minimum Output Voltage
Mounting	SMD
Mounting Type	Surface Mount
Number of channels	1
Number of Outputs	1
Operating Temperature	-40?C ~ 125?C (TJ)
Operating temperature	-40...125?C
Output Configuration	Positive
Output current	3.5A
Output Type	Adjustable
Output voltage	3V DC
Package	Tube
Package / Case	10-WFDFN Exposed Pad
Package Type	DFN
Pin Count	10
Product Status	Active
Series	-
Stock	Stock
Supplier Device Package	10-DFN (3x3)
Switching Regulator	Switching Regulator
Synchronous Rectifier	No
Topology	buck
Type of integrated circ.	PMIC
Voltage - Input (Max)	36V
Voltage - Input (Min)	3.6V
Voltage - Output (Max)	30V
Voltage - Output (Min/F.	0.79V
Width	3mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	919-9301	7.1376	121	5		Analog Devices		7.1376 @ 121
	Newark	51AK8762	12.38	1	48		ANALOG DEVICES		12.38 @ 5
	Digi-Key	1650913	12.61	1	730		Analog Devices Inc.		12.61 @ 5
	AmazonTP	B07RXN9RH8	56.12	1	5	2	Analog Devices		56.12 @ 5
