ABB PSR105-600-70

mpnPSR105-600-70
brandname: ASEA BROWN BOVERI
manufacturername: ASEA BROWN BOVERI

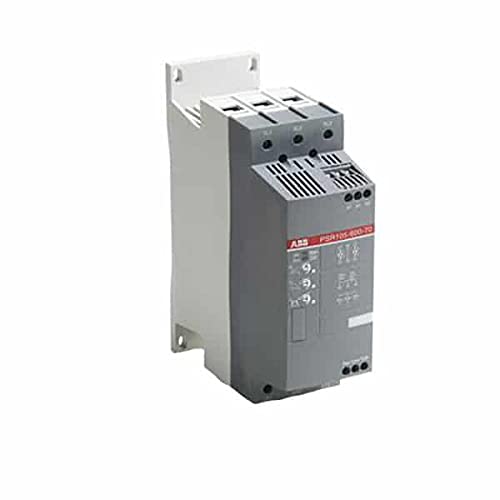

PSR105-600-70 - ABB PSR Series Solid-State Reduced Voltage Softstarter

Brand: ABB
PartNumber: PSR105-600-70
Model: PSR105-600-70
Manufacturer: ABB
Label: ABB

Attributes

Key	Value
Adjustable rated motor .	No
Amps (Max)	104
Approvals	CCC, CE, cULus
By-Pass	Built-In
By-pass signal relay	Yes
Bypass	Yes
Communication	FiledBusPlug(Optional)
Communications	Field Bus
Connecting capacity con.	1 x 0.75 ... 2.52 x 0.7.
Connecting capacity mai.	Rigid 1x 10 ... 95 mm?R.
Connecting capacity sup.	Rigid 1 x 0.75 ... 2.5 .
Connection Type	In-Line
Control Voltage	24, 100-240VAC, 100-240.
Current limit function	No
Current Rating	105 A
Degree of protection	IP10
Enclosure	No
Estimated Weight	5.00
Family Series	ABB Soft Starters
Fault signal relay	No
Function	Single direction
Gross Weight	4.9 lbs
HP @ 230V	40
HP @ 460V	75
Initial voltage during .	40 ... 70 %
Integrated electronic o.	No
IP Rating	IP10
Item Number	PSR105-600-70
Manufacturer	ABB
Manufacturer Part Number	PSR105-600-70
Max Current	104 A
Max HP 200/208V 3PH	30 hp
Max HP 230/240V 3PH	40 hp
Max HP 460/480V 3PH	75 hp
Max HP 575/600V 3PH	100 hp
Maximum Operating Tempe.	60 ?C
Minimum Operating Tempe.	-25 ?C
Mounting Type	DIN Rail Mount
Net Weight	4.9 lbs
Nominal Control Voltage	120 VAC, 208 VAC, 240 V.
Nominal Load Voltage	208 V, 240 V, 280 V, 48.
Number of starts per ho.	10
Overload Capacity	400% for 6 Seconds
Overload Protection	Yes
Overload protection	Recommended MS495 80 ...
Overload signal relay	No
Phase	2 Phase
Product main type	PSR105
Ramp time	0 ... 20 second [unit o.
Rated control circuit v.	24 V DC
Rated control supply vo.	100 ... 240 V AC
Rated operational curre.	105 A
Rated operational power.	(230 V) 30 kW(400 V) 55.
Rated operational volta.	208 ... 600 V AC
Run signal relay	Yes
Series	PSR Series
Service factor percenta.	100.00%
Signal indication compl.	Green
Signal indication rampi.	Green
Signal indication ready.	Green
Signal indication runni.	Green
Standards	C-Tick, CCC, CE, CSA, G.
Starting capacity at ma.	4xIe for 6s
Step down voltage speci.	100 ... 60 %
Supply Voltage	208-600 V
Switch for inside delta.	No
Temperature (F)	-13-140 ?F
Temperature Operating R.	-25 to +60 ?C
Tightening torque	Control Circuit 0.6 N?m.
Type	PSR
Voltage Rating	600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Walker Industrial	PSR105-600-70	1270.86	1	In Stock	ABB		1270.86 @ 1
Purvis	PSR105-600-70	1356.8	1	In Stock	ABB		1356.8 @ 1
Airline Hydraulics	ABB PSR105-600-70	1400.59	1	In Stock	ABB		1400.59 @ 1
standardelectricsupply.com	2268474	1407.43	1	In Stock	ABB		1407.43 @ 1
alldataresource.com	536836	1413.15	1	In Stock	ABB		1413.15 @ 1
motorsandcontrol.com	PSR105-600-70	1450.77	1	In Stock	ABB	5.0	1450.77 @ 1
Galco	PSR105-600-70-ABBG	1461.98	1	1	ABB	4.9	1461.98 @ 1
us.rs-online.com	70318593	1664.94	1	1	ABB		1664.94 @ 1
MRO Supply	6151895	1909.53	1	In Stock	ABB		1909.53 @ 1
