Browning VPE-231

B007PVAF9I

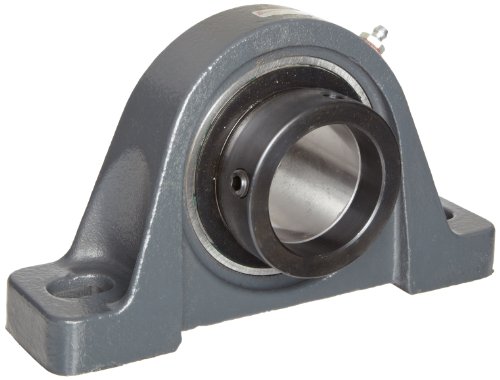

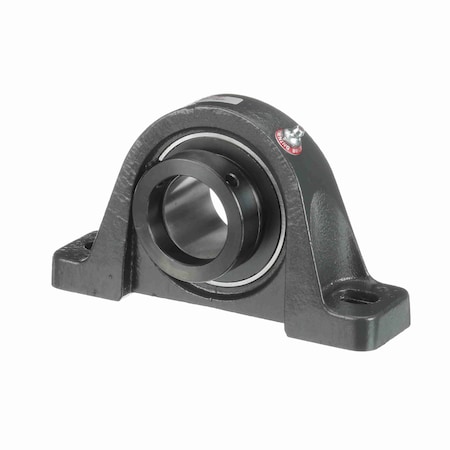

Browning VPE-231 Pillow Block Ball Bearing, 2 Bolt, Eccentric Lock, Contact and Flinger Seal, Cast Iron, Inch, 1-15/16" Bore, 2-1/4" Base To Center Height

Browning VPE-231 Pillow Block Ball Bearing, 2 Bolt, Eccentric Lock, Contact and Flinger Seal, Cast Iron, Inch, 1-15/16" Bore, 2-1/4" Base To Center Heightzoom

Attributes

Key Value
Actual Bolt Center to C.6.2 Inch | 157Millimeter
application:Browning - Standard
base to bore centerline:2.2500 in
Base to Center Height2.25 Inch | 57.15 Milli.
base width:2.1875 in
bolt center-to-center l.5.7188 to 6.6563 in
Bolt Spacing Maximum0 Inch | 0Millimeter
Bolt Spacing Minimum0 Inch | 0Millimeter
bore diameter:1.9375 in
bore type:Round
BrandBROWNING
CategoryPillow Block Bearings
Country of Origin (subj.Mexico
Duty SeriesStandard
duty type:Normal Duty
Estimated Weight6.84
Expansion / Non-expansi.Non-expansion
expansion type:Non-Expansion Bearing (.
finish/coating:Gray Painted
Global Part Number GPN19767
Gross Weight6.875 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
housing material:Cast Iron
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert Material52100 Steel
insert material:52100 Bearing Steel
Insert Part NumberVE-231
Length Thru Bore2.469 Inch | 62.7 Milli.
Locking DeviceEccentric
locking device:Eccentric Collar
lubrication type:Lubrication Fitting
ManufacturerBROWNING
manufacturer catalog nu.767918
Manufacturer NameREGAL BELOIT
manufacturer upc number:662289523573
maximum operating tempe.200
maximum rpm:3000 RPM
Mounting Bolts5/8 Inch
Mounting MethodEccentric Collar
mounting:Two-Bolt Base
Nominal Bolt Center to .6.3 Inch | 160 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Spherical .
overall height:4.5625 in
overall length:8.0000 in
Part NumberVPE-231
price$ 133.77 / each
radial dynamic load cap.7889 lb
radial static load capa.5216 lb
RelubricatableYes
replacement bearing:VE-231
Seal TypeSingle Lip Contact Seal.
seal type:Single Lip Contact with.
SealsSingle Lip Contact
series:VPE
Shaft Diameter (in)1.9375
titleVPE-231
TypeTwo Bolt Pillow Block
UNSPSC31171511
UPC Code662289523573
Weight / kgm3.105
Weight / LBS6.3

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingVPE-231113.71In StockBROWNING6.831113.7 @ 1
thumbzoomMRO Supply2272126129.831In Stock14Browning6.84129.83 @ 1
thumbzoomapexindustrialautomation.comVPE-231141.251146Browning141.25 @ 1
thumbzoomGalcoVPE-231-BRNG148.291In StockBrowning6.875148.29 @ 1
thumbzoommotorsandcontrol.comVPE-231148.291In StockBrowning6.84148.29 @ 1
us.rs-online.com72088726161.761In StockBrowning161.76 @ 1
thumbzoomZoroG3819056171.431In Stock12Browning171.43 @ 1
thumbzoommotionindustries.com00557867203.731In StockBrowning203.73 @ 1
thumbzoomNational Supply Network85365385276.91In StockBrowning276.9 @ 1
