- mpn4VA68
- brandname: CARLING TECHNOLOGIES
- manufacturername: CARLING TECHNOLOGIES

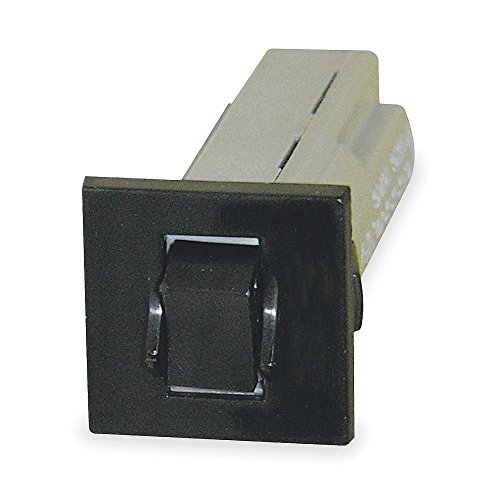

Circuit Breaker, Thermal Circuit Breaker Type, Rocker Switch Type, Number of Poles: 1
- PartNumber: 4VA68
- PackageQuantity: 1
- Manufacturer: CARLING TECHNOLOGIES
- Label: CARLING TECHNOLOGIES
Attributes
| Key | Value |
|---|
| AC Voltage | 250 V |
| AC Voltage Rating | 125/250V AC |
| Actuator Colour | Black |
| Actuator Legend | 10 Amp |
| Actuator Type | Rocker |
| AIR @ 120VAC | Not Rated |
| AIR @ 125VDC | Not Rated |
| AIR @ 240VAC | 1.0kA |
| AIR @ 65VDC | Not Rated |
| Alternate Part No. | 691-CTB-B-B-10 |
| Amps | 10 A |
| Brand | Carling Technologies |
| Button Color | Black |
| Circuit Breaker Actuator | Rocker |
| Circuit Breaker Type | Thermal |
| Color | Black |
| Current Rating | 10 A |
| Curve Type | Medium |
| DC Voltage | 50 V |
| DC Voltage Rating | 50V DC |
| Depth | 2.23 in |
| Dielectric Strength | 1.5 V |
| Dimensions | 1.535 L x 0.76 W x 0.54. |
| Illuminated | Not Illuminated |
| Insulation Resistance | 100 MegaOhms |
| Item | Panel Mount Circuit Bre. |
| Length | 0.76 in, 38.99 mm |
| Length (Straight Wirewa. | 0.76 in |
| Manufacturer | Carling Technologies |
| Manufacturer Part No. | CTB-B-B-10 |
| Max. AIR Rating | Not Rated |
| Max. Operating Temp. | 140 Degrees F |
| Max. Panel Thickness | 0.062 in |
| Max. Wire Size | 14 AWG |
| Maximum Operating Tempe. | 60 ?C |
| Min. Operating Temp. | 32 Degrees F |
| Minimum Operating Tempe. | -10 ?C |
| Mounting Hole Size | Dia. 0.63 x H 0.545 in |
| Mounting Style | Panel |
| Mounting Type | Chassis, Front Mount, S. |
| Number of Poles | 1, 1 Pole |
| Operating Temperature R. | - 10 C to + 60 C |
| Overload | Thermal |
| Panel Cutout Size | 0.545 in x 0.630 in |
| Phase | 1 |
| Product | Thermal Circuit Breakers |
| Product Category | Circuit Breakers |
| Product Type | Thermal |
| Series | CTB Series, CTB |
| Standards | CE, CSA, cUL, UL, VDE, . |
| Switch Type | Rocker |
| Terminal Connection | 1/4 in Tab |
| Termination | Chassis Mount |
| Termination Style | Quick Connect |
| Thickness | 0.032 in. to 0.062 in. . |
| Tolerance | 0.00005 |
| Trip Time | 2.2 s to 15 s |
| Type | Breaker/Switch Combinat. |
| Voltage Rating | 250 ; 50 V, 250 VAC, 32. |
| Voltage Rating AC | 250 V |
| Voltage Rating DC | 32 V |
| Width | 0.76 in, 13.71 mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 432-1130-ND | 2.1427 | 100 | 46 | | Carling Technologies | | 2.1427 @ 100 |
 | Newark | 67H5957 | 2.34 | 30 | 42 | | CARLING TECHNOLOGIES | | 2.34 @ 25 |
| Onlinecomponents.com | CTB-B-B-10 | 2.56 | 1 | 153 | | CARLING TECHNOLOGIES | | 2.56 @ 1 |
| grainger.ca | WWG4VA68 | 2.58386936 | 1 | 46 | | CARLING TECHNOLOGIES | 0.02 | 2.58386936 @ 1 |
 | swatee.com | CTB-B-B-10 | 2.62 | 1 | 61 | | Carling Technologies | | 2.62 @ 1 |
 | sustainablesupply.com | C1201625 | 2.82 | 1 | 42 | | Carling Technologies | 0.02 | 2.82 @ 1 |
| us.rs-online.com | 70131740 | 3.57 | 1 | 43 | | Carling Technologies | | 3.57 @ 1 |
 | Raptor Supplies | AD9UXX | 3.6760815 | 1 | 42 | | CARLING TECHNOLOGIES | | 3.6760815 @ 1 |
 | Zoro | G3389881 | 4.29 | 1 | 1730 | | Carling Technologies | 0.65 | 4.29 @ 1 |
