A.O. Smith Corporation ORM4688BF

B079Q7FQRM

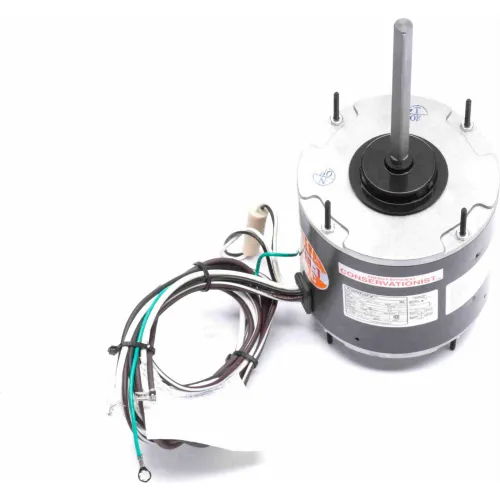

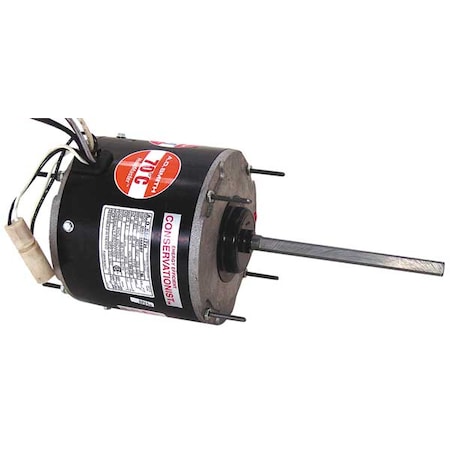

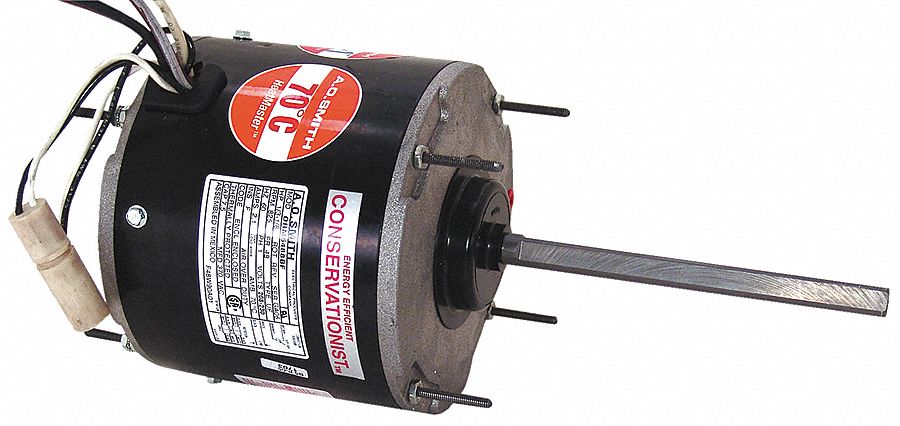

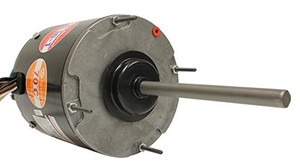

A.O. Smith Corporation A. O. Smith Corporation ORM4688BF Motor 48FR

A.O. Smith Corporation A. O. Smith Corporation ORM4688BF Motor 48FRzoom

Attributes

Key Value
Amps1
Batteries Required?No
BearingsBall
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/8 in
BrandCentury
Capacitor7.5MFD @ 370VAC Required
Capacitor Required2MDV6
Current Stock22
Date First AvailableJanuary 31, 2017
Duty CycleContinuous
Enclosure TypeTEAO (Totally Enclosed .
FeaturesBelly Band, Extended St.
Frame48
Full Load Amps1.00
HP1/3 to 1/8, 1/8, 1/3
Hz60
Included ComponentsElectric motor
Ins. ClassF
Insulation ClassF
International ShippingNo
ItemCondenser Fan Motor
Item Dimensions LxWxH6 x 6 x 13 inches
Item model numberORM4688BF
Item Package Quantity1
Item Weight17 pounds
Lead Length48 in
Lead TimeExpected to ship in 1-2.
Length Less Shaft6 1/8 in
ManufacturerCentury, formerly A.O. .
Max. Ambient Temp.70 Degrees C
Maximum Ambient Tempera.70? C
Model NameORM4688BF
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeStud
Motor Service Factor1
Motor Shaft DesignDouble-Flat
Motor Shaft RotationCW/CCW
Motor Sub ApplicationCondenser Fan
Motor Thermal ProtectionAuto
MountingBand/Hole/Ring/Stud
Mounting Stud Length1 1/8 in
Mounting Stud Pattern3 5/8 in x 3 5/8 in
MpnORM4688BF
Nameplate RPM825
No. of Speeds1
Number of Speeds1
ORM4688BF is listed in .A.O. Smith F48AB98A01, .
Output Watts250 W
Overall Length12 5/8 in
Part NumberORM4688BF
Phase1, Single
Product Dimensions6 x 6 x 13 inches
Product TypePSC (Permanent Split Ca.
Product with faster shi.true
Removable BaseYes
RotationReversible
RPM825
RPM Range0-1,000
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length6 1/2 in, 6-1/2"
Ship Weight17 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G1017703
StandardsCSA, UL
Stud Quantity4
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage460V AC
Volts460
Weight17 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi SupplyORM4688BF189.011In StockCentury Motors189.01 @ 1
AmazonTPB007R7WS7C191.671In Stock5Century, formerly A.O. Smith191.67 @ 1
AmazonUNKB005XRMXM8192.661In StockCENTURY192.66 @ 1
thumbzoomemotorpro.comORM4688BF203.191In StockCentury17.0203.19 @ 1
thumbzoomZoroG1017703216.99120Century13.74216.99 @ 1
thumbzoomsustainablesupply.comC1563141219.611In StockCentury13.74219.61 @ 1
thumbzoommidwestapplianceparts.comORM4688BF-AO-P222.8513AO Smith222.85 @ 1
thumbzoomhomeessentialsdirect.comORM4688BF235.041In StockCentury, formerly A.O. Smith17.0235.04 @ 1
AmazonSCB007R7WS7C236.481In StockCentury236.48 @ 1
thumbzoomNational Supply NetworkB2776586240.631In StockAO SMITH240.63 @ 1
Grainger5DVX5242.14127CENTURY17.0242.14 @ 1
thumbzoomindustrialstores.comORM4688BF243.9814Century Motors by Regal Beloit243.98 @ 1
thumbzoomsimsupply.comZO-G1017703249.79122Century249.79 @ 1
hvacdiscountstore.comCEN--ORM4688BF251.171In StockCENTURY MOTORS251.17 @ 1
thumbzoomGlobal IndustrialWBB2776586259.951In StockCentury259.95 @ 1
thumbzoomRaptor SuppliesAE3LAV351.8982091In StockCENTURY351.898209 @ 1
uri.comORM4688BF613.141In StockCentury17.0613.14 @ 1
