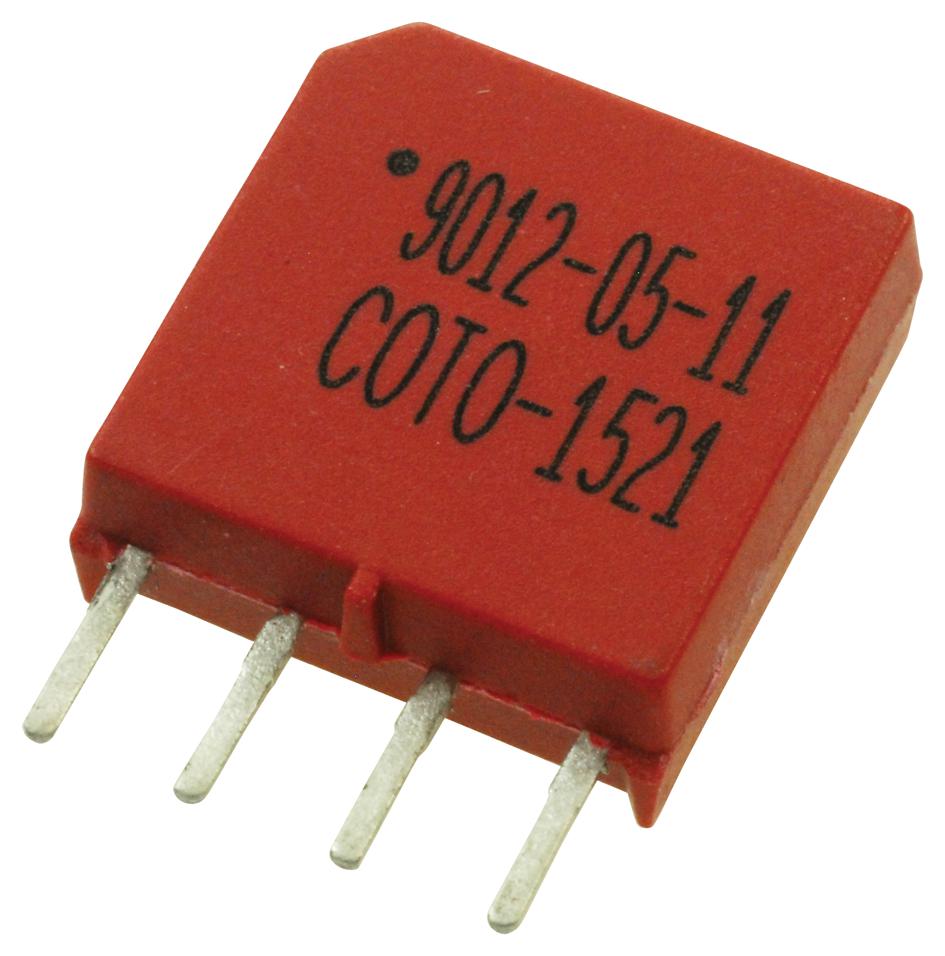

Coto Technology 9012-05-11 Reed Relay SPST 5VDC, 0.5A, Through Hole

Coto Technology 9012-05-11 Reed Relay SPST 5VDC, 0.5A, Through Holezoom

Attributes

Key Value
Base Product Number9012
Body dimensions10.16x10.16x3.81mm
CaseSIP
CategoryRelays
Coil Current10 mA
Coil Resistance500 Ohms
Coil resistance500?
Coil TypeNon Latching
Coil Voltage5VDC
Coil voltage max.6.5V DC
Coil voltage min.3.75V DC
Contact current max.0.5A
Contact FormSPST-NO (1 Form A)
Contact Material-
Contact Rating (Current)500 mA
Contact resistance0.2?
Contacts configurationSPST-NO
DescriptionRELAY REED SPST 500MA 5V
Digi-Key Part Number306-1135-ND
FeaturesDiode, EMI Shielded
ManufacturerCoto Technology
Manufacturer Product Nu.9012-05-11
Manufacturer Standard L.56 Weeks
MfrCoto Technology
MountingTHT
Mounting TypeThrough Hole
Must Operate Voltage3.75 VDC
Must Release Voltage0.4 VDC
Operate Time0.35 ms
Operating Temperature-20?C ~ 85?C
Operating temperature-20...85?C
Optional equipmentcoaxial shield
PackageTube
Product StatusActive
Rated coil voltage5V DC
Relay series9012
Release Time0.1 ms
Seal Rating-
Series9012
Switched voltagemax. 200V AC,
Switching capacity10W
Switching Voltage200VAC, 200VDC - Max
Terminal pitch2.54mm
Termination StylePC Pin
Type of relayreed switch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTestco9012-05-114.417997Coto Technology4.4 @ 1
Onlinecomponents.com9012-05-115.6243916Coto5.624 @ 1
HotendaH38473376.014234Coto Technology6.0 @ 1
thumbzoomDigi-Key4182617.321In StockCoto Technology7.32 @ 1
thumbzoomNewark39C54277.61123412COTO TECHNOLOGY7.61 @ 1
thumbzoomTME9012-05-118.031In StockCOTO TECHNOLOGY8.03 @ 1
Mouser816-901205118.86128Coto8.86 @ 1
