- mpnLH29-1001
- brandname: Flowline
- manufacturername: Flowline

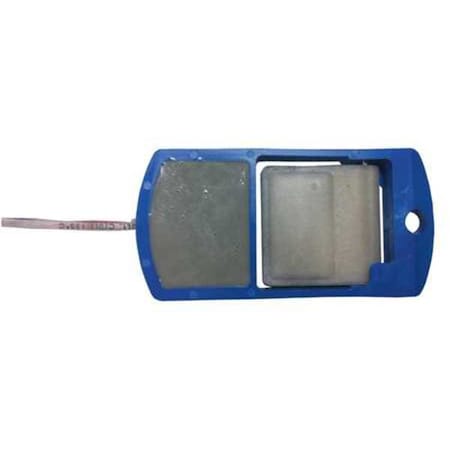

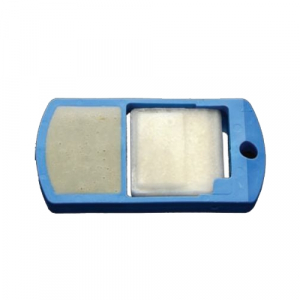

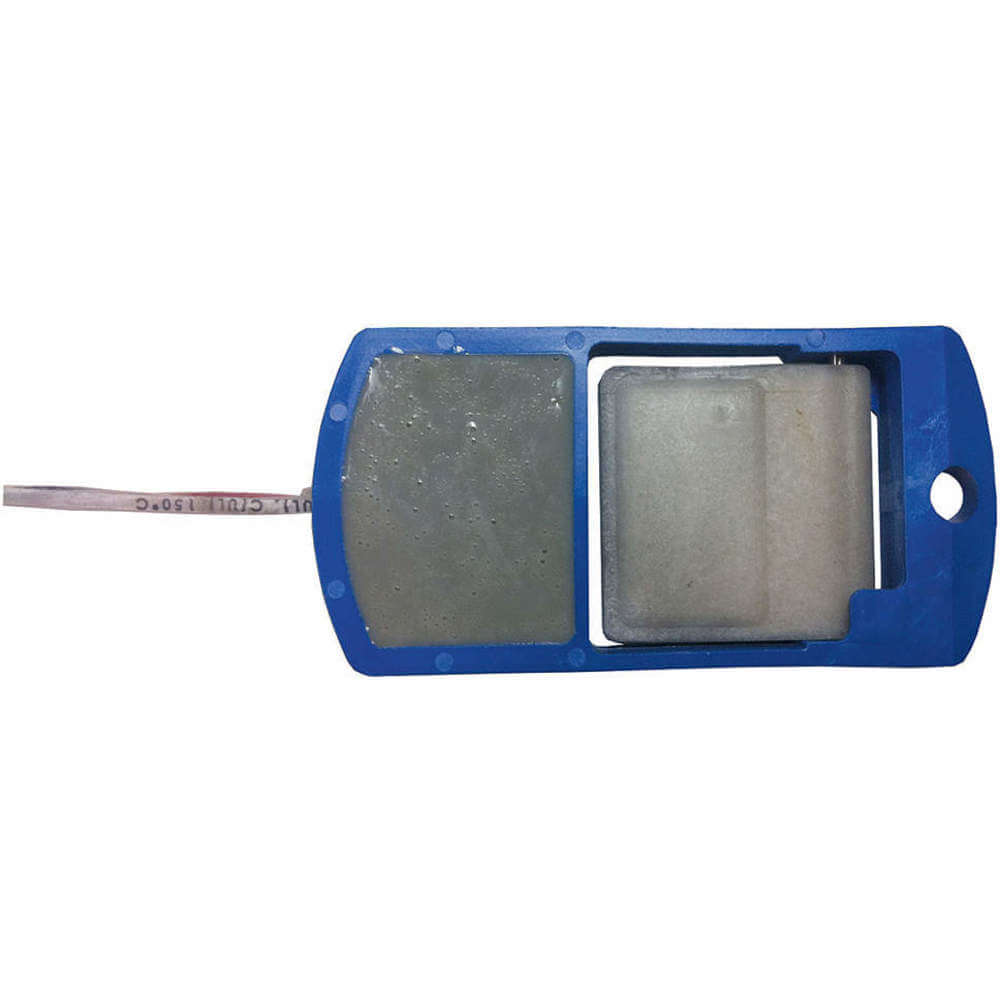

Flowline LH29-1001 Switch-Tek Horizontal Interstitial Leak Detection Switch
- Brand: Flowline
- PartNumber: LH29-1001
- Model: LH29-1001
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Flowline
- Label: Flowline
Attributes
| Key | Value |
|---|
| Approvals: | UL |
| Body Material: | Valox 420 |
| Classification: | General purpose |
| Compliance: | CE |
| Contact Output: | NC (opens on rise) |
| Contact State: | NC, Open on rise |
| Contact Type | 30 Watts, 240 V AC (0.1. |
| Contact Type: | SPST Reed |
| Country of Origin (subj. | United States |
| Float Material: | Foamed polypropylene |
| Height | 0.75 in, 0,75" |
| Input Voltage | 240 VAC/120 VDC max., 2. |
| Item | Leak Detection Switch |
| Jacket Material | Halar Jacket |
| Length | 3.00", 3.0 in |
| Length (Straight Wirewa. | 3.0 in |
| Material | Foamed Polypropylene, V. |
| Max. Pressure | 50 psi |
| Orientation | Horizontal |
| Orientation: | Horizontal |
| Output | SPST-NC, SPST Reed |
| Pivot Pin: | Stainless steel |
| Pressure: | 50 psi (3.44 bar) |
| Process Temp.: | F: -40? to 221?, C: -40. |
| Product Type | Leak Detection Switch |
| Series | Switch-Tek Series |
| Standards | CE, UL |
| Temp. Range | -40 to 221 Degrees F |
| Type | Interstitial |
| Width | 1.5 in, 1.50" |
| Wire Jacket Mat: | Halar jacketed |
| Wire Length: | 10' (3.04m) |
| Wire Type | 2 conductor, #22 AWG |
| Wire Type: | 2 conductor, #22 AWG |
