- mpnDM-200A
- brandname: Greenlee Communications
- manufacturername: Greenlee Communications

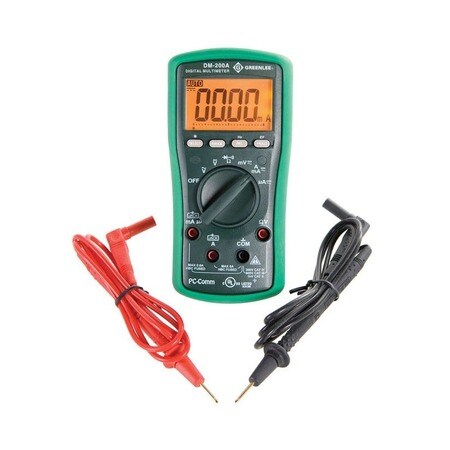

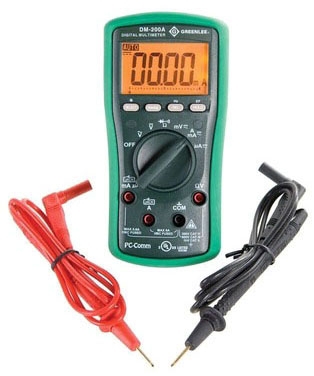

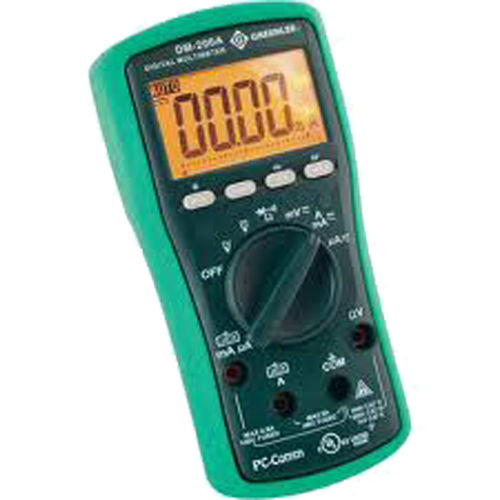

GREENLEE DM-200A - Dmm, 1000V Ac/Dc (Dm-200A)
- Brand: Greenlee
- PartNumber: DM-200A
Attributes
| Key | Value |
|---|
| Accuracy % (VAC) | 1 % |
| Accuracy % (VDC) | 0.2 % |
| Amperage Measurement: | 600, 6000?A; 60, 600mA;. |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Auto Ranging | Yes |
| Backlight | Yes |
| Battery | (2) 1.5 V AAA |
| Battery Type | (2) 1.5 VDC AAA |
| Battery: | (2) 1.5 V AAA |
| best dc voltage accurac. | 0.2 % |
| Brand | ESM, Greenlee |
| Capacitance | 60/600 nF, 6/60/600/300. |
| Capacitance: | 60, 600 nF; 6, 60, 600,. |
| Case Pack | 1 |
| Catalog Number | DM-200A |
| Category | Multimeters, Test and M. |
| Continuity W/ Diode Test | Yes |
| Country of Origin | TW, TW - Taiwan, Taiwan. |
| Country of Origin (subj. | Unknown |
| Data Hold | Yes |
| Description | DMM 1000V AC/DC |
| Description: | DMM, 1000V AC/DC (DM-20. |
| Detailed Description | Auto/Manual Average Han. |
| Digi-Key Part Number | DM-200A-ND |
| Diode Test | Yes |
| Display | Backlit LCD With 6,000 . |
| Display Count | 6000 |
| Display Digits | 4 |
| Display Type | LCD, Backlit LCD |
| display type: | Digital |
| Display: | Backlit LCD With 6,000 . |
| ECCN | EAR99 |
| Family Series | Greenlee Multimeters, D. |
| Features | Auto Off, Backlight, Da. |
| Frequency | 0.01-50 kHz |
| Frequency Measurement: | 10Hz - 50kHz Sine Wave,. |
| Frequency Rating | 10 Hz to 50 kHz |
| Function | Voltage, Current, Resis. |
| Functions, Extra | Continuity, Diode Test |
| Gross Weight | 1.35 lbs |
| housing color: | Green |
| Includes | (2)1.5 V AAA Batteries,. |
| Includes: | (2) 1.5V AAA Batteries,. |
| Instrument Counts | 6,000 |
| Item | Digital Multimeter |
| Item Number | DM-200A |
| Item Type | Digital |
| Made in USA | No |
| Manufacturer | Greenlee Textron, Green. |
| Manufacturer Part Number | DM-200A |
| Manufacturer Product Nu. | DM-200A |
| Manufacturer Standard L. | 4 Weeks |
| Manufacturers Warranty . | Limited Lifetime Warran. |
| Max Current (AC) | 8 A |
| Max Current (DC) | 8 A |
| Max Resistance | 60 MOhm |
| Max Voltage (AC) | 1,000 VAC |
| Max Voltage (DC) | 1,000 VDC |
| maximum ac current meas. | 8 A |
| maximum ac voltage meas. | 1000 V ac |
| maximum dc current meas. | 8 A |
| maximum dc voltage meas. | 1000 V dc |
| Measurement Category: | CAT IV 300 V, CAT III 6. |
| Measuring Range | 60 mV to 1000 VAC/VDC, . |
| MFG Part #: | DM-200A |
| Mfr | Greenlee Communications |
| Net Weight | 1.35 lbs |
| NIST Certified | No |
| Number of Displayed Dig. | 4 |
| Package | Bulk |
| Part Status | Active |
| power source: | Battery |
| probe type: | Probe Leads |
| Product | Hand Tools |
| Product Series | DM-200A |
| Product Status | Active |
| Product Weight (lbs) | 1.32 |
| Ranging | Auto/Manual |
| Ratings | - |
| Replacement Part: | TSG-3 Sure-Grip Test Le. |
| Resistance | 600 Ohm, 6/60/600 kOhm,. |
| Resistance Measurement: | 600 ?; 6, 60, 600 k?; 6. |
| Response | Average |
| safety category: | CAT III 600V, CAT II 10. |
| Safety Rating | CAT IV 300 VAC, CAT III. |
| Series | DM, 200A |
| SKU | DM-200A |
| Special Features | BeepJack Warns When Tes. |
| Standard | CAT IV, CAT II, C/UL US. |
| Standard: | CAT IV, CAT II, C/UL US. |
| Standards | CAT IV, CAT II, C/UL US. |
| Style | Handheld, Multi Meter |
| Sub Brand | ESM |
| Sub Brand: | ESM |
| Supplier: | Greenlee |
| Temperature Range | -58 to 1832?F |
| Temperature Rating | -58 to 1832 deg F, K Ty. |
| Temperature Rating: | K Type, -58 To 1832?F (. |
| Temperature Readings | No |
| Thermal Imager | No |
| Tool Application | Measures Voltage, Curre. |
| True RMS | No |
| Type | Multimeter, Digital (DM. |
| Type: | Digital |
| UNSPSC | 41113630 |
| UPC | 783310087403, 7.83E+11 |
| UPC: | 783310087403 |
| Use | Testing |
| Voltage Measurement: | 60, 600 mV; 6, 60, 600,. |
| Volts AC | 1000 |
| Volts DC | 1000 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| ToolUp.com | GREENLEE DM-200A | 90.45 | 1 | In Stock | | Greenlee | | 90.45 @ 1 |
 | electricianshop.com | 19875 | 90.45 | 1 | In Stock | | Greenlee Textron | | 90.45 @ 1 |
| Hisco | DM-200-A-65663 | 95.25 | 1 | In Stock | | Greenlee | | 95.25 @ 1 |
 | All-Spec | DM-200-A-65663 | 95.25 | 1 | In Stock | | Greenlee | 1.44 | 95.25 @ 1 |
 | valuetesters.com | QVT-2015090186782805620 | 102.11 | 1 | In Stock | | Greenlee | | 102.11 @ 1 |
 | gordonelectricsupply.com | DM-200A | 104.87 | 1 | In Stock | 230 | GREENLEE | | 104.87 @ 1 |
 | Lighting Supply | GREENLEE-DM-200A | 105.5 | 1 | In Stock | | Greenlee | 1.32 | 105.5 @ 1 |
 | Digi-Key | 3980835 | 105.5 | 1 | In Stock | | Greenlee Communications | | 105.5 @ 1 |
| imsbolt.com | DM-200A | 105.5 | 1 | In Stock | | GREENLEE | | 105.5 @ 1 |
 | Galco | DM-200A-GLEE | 111.17 | 1 | In Stock | | Greenlee | 1.35 | 111.17 @ 1 |
 | PlumbersStock | 274399 | 114.18 | 1 | In Stock | | Greenlee | 1.35 | 114.18 @ 1 |
 | Zoro | G201276706 | 116.99 | 1 | In Stock | 15 | Greenlee | | 116.99 @ 1 |
| Dale-Electric | DM-200A | 118.45 | 1 | In Stock | | Greenlee Textron | | 118.45 @ 1 |
 | jensentools.com | 474-706 | 120.7 | 1 | In Stock | | Greenlee | | 120.7 @ 1 |
 | Platt.com | 0443220 | 121.84 | 1 | In Stock | | Greenlee | | 121.84 @ 1 |
 | alldataresource.com | 733664 | 125.33 | 1 | In Stock | | Greenlee-Textron | | 125.33 @ 1 |
 | motionindustries.com | 05116445 | 131.88 | 1 | In Stock | | Greenlee Textron Inc | | 131.88 @ 1 |
| kscdirect.com | GRE DM-200A | 132.48 | 1 | In Stock | | GREENLEE | | 132.48 @ 1 |
 | crescentelectric.com | 1228274 | 143.3 | 1 | 1 | | Greenlee | | 143.3 @ 1 |
| us.rs-online.com | 71347393 | 144.51 | 1 | 2 | | Greenlee | | 144.51 @ 1 |
| grainger.ca | GLEDM200A | 152.02732476 | 1 | In Stock | | GREENLEE | 1.32 | 152.02732476 @ 1 |
 | United Electric | 579875 | 177.15 | 1 | In Stock | | Greenlee | | 177.15 @ 1 |
| Graybar | 25266061 | 190.344 | 1 | In Stock | | Greenlee | | 190.344 @ 1 |
