- mpn184THTY17038
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

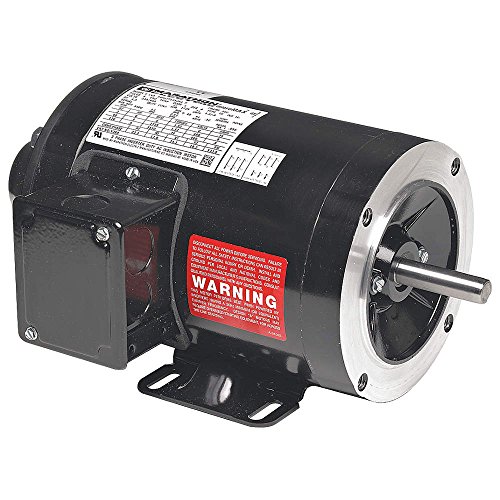

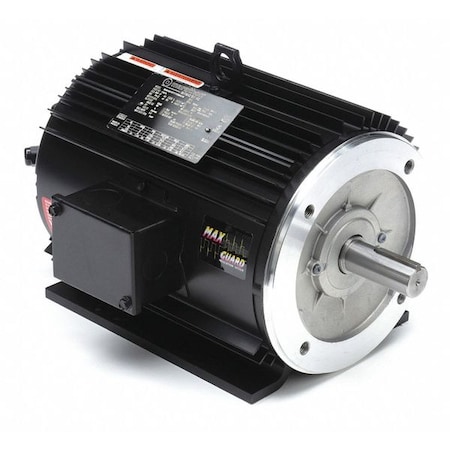

Marathon Electric/Regal Beloit - 184THTY17038-5 HP Vector Motor, 3-Phase, 1770 Nameplate RPM, 230/460 Voltage, Frame 184TC
- Brand: Marathon Electric
- PartNumber: 184THTY17038
- PackageQuantity: 1
- Manufacturer: Marathon Electric / Regal Beloit
- Label: Marathon Electric / Regal Beloit
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Application | Application |
| Approval | Approval |
| Base | Rigid |
| Category | Electric Motor |
| CC Number | CC003A |
| Composition | Aluminum |
| Conduit Box Position | F1, F2 |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | Efficiency |
| Efficiency % | 89.5 % |
| Enclosure | Totally Enclosed Non-Ve. |
| Encoder Acceptable | Yes |
| Encoder Shaft | Yes |
| Family Series | Marathon Electric Motors |
| Finish | Powder Coated |
| Frame | 184TC |
| Frame Material | Frame Material, Aluminum |
| Frame Remarks | Footed |
| Frequency Rating | Frequency Rating |
| Full Load Amps | 12.8/6.4 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Horsepower | 5 hp |
| HP | 5 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Insulation Feature | Max Guard |
| Item | Vector Motor |
| Item Condition | FACTORY NEW |
| Item Number | 184THTY17038 |
| Kilowatts | 3.7 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | Y287A |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5,400 RPM |
| Motor Application | Variable Speed |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor FLA | Motor FLA |
| Motor Frame Material | Aluminum |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| mounting | C-face w/ rigid base |
| Mounting Type | Footed |
| Nameplate RPM | 1,770 |
| NEMA Design | B |
| NEMA Frame | 184TC |
| Net Weight | 93 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | Number of Speeds |
| Overall Length | 17 11/16 in |
| Phase | 3, Three |
| RPM | 1,760 RPM, 1800 |
| RPM Range | 1,701-1,800 |
| Service Factor | 1, Service Factor |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 5/8 in |
| Speed Range | 1,000:1 |
| Speeds | Speeds |
| Standards | CE, UL Recognized |
| Torque | 14.9 ft-lb |
| Unspsc | Unspsc |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230/460 |
| Weight | 93 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2030467 | 2089.0 | 1 | In Stock | 26 | Marathon Motors | 93.0 | 2089.0 @ 1 |
 | Galco | 184THTY17038-MARA | 2199.88 | 1 | In Stock | | Marathon Electric | 93.0 | 2199.88 @ 1 |
 | mecampbell.com | 184THTY17038 | 2458.71 | 1 | In Stock | 33 | Marathon Motors | | 2458.71 @ 1 |
 | Dealers Electric | 184THTY17038 | 2473.88 | 1 | 11 | | Marathon Electric | 93.0 | 2473.88 @ 1 |
 | sustainablesupply.com | C2791694 | 2747.13 | 1 | In Stock | | Marathon | 93.0 | 2747.13 @ 1 |
 | pumpproducts.com | 184THTY17038 | 4023.81 | 1 | In Stock | | Marathon | | 4023.81 @ 1 |
